By Fezz

Equinox Prestige

Balanced DAC

Contact us

Finish — Moonlight

Model

In-store demo

Not currently available

Stock availability

Available

  • Balanced tube-output DAC

    Two ECC82/12AU7 valves with RCA and XLR outputs.

  • Four digital inputs

    Two Toslink, coaxial and USB Type B.

  • USB PCM up to 32-bit/384 kHz

    S/PDIF PCM support up to 24-bit/192 kHz.

  • Dedicated toroidal supply

    Fezz/Toroidy Audio Supreme transformer.

Product details

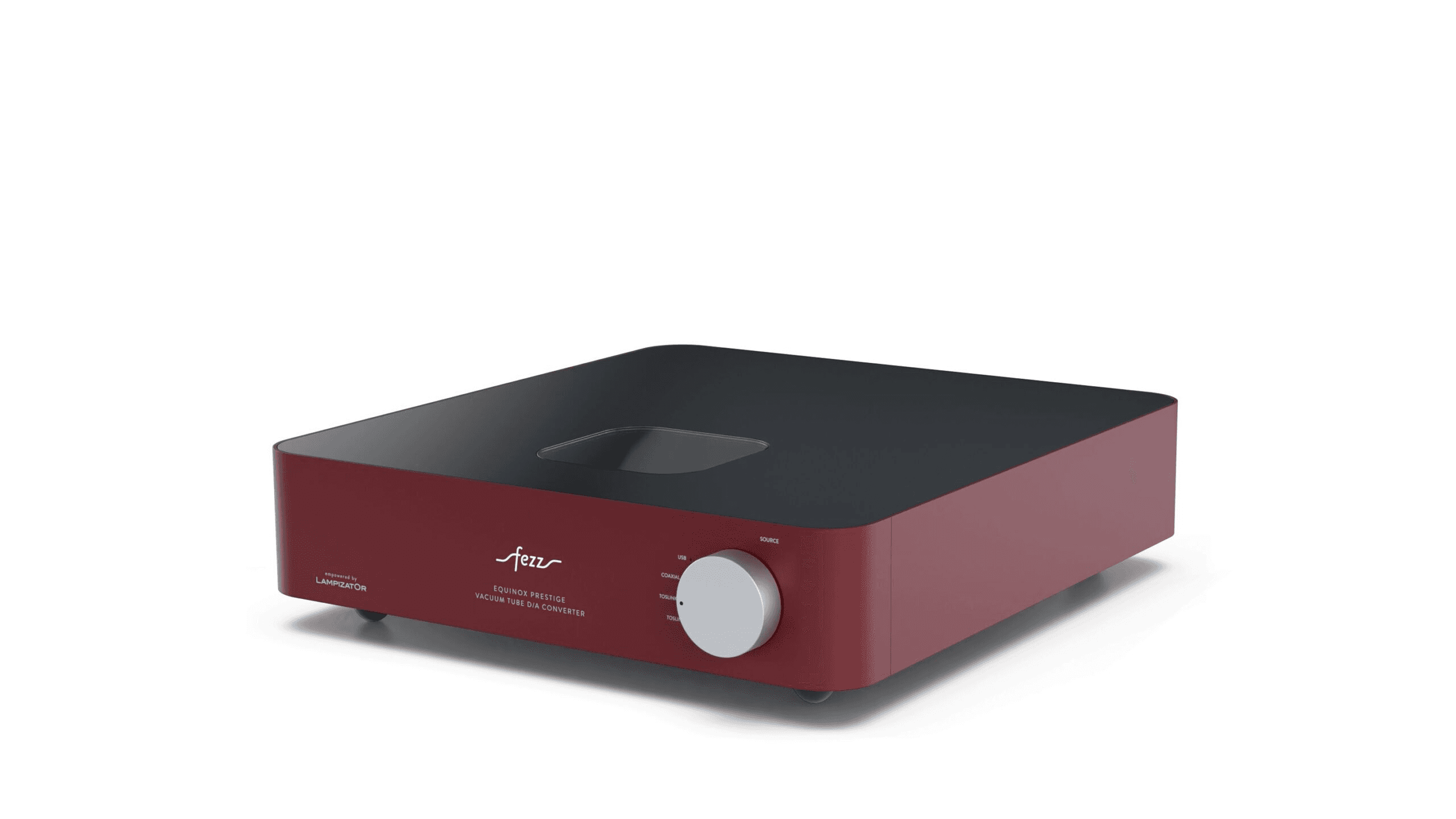

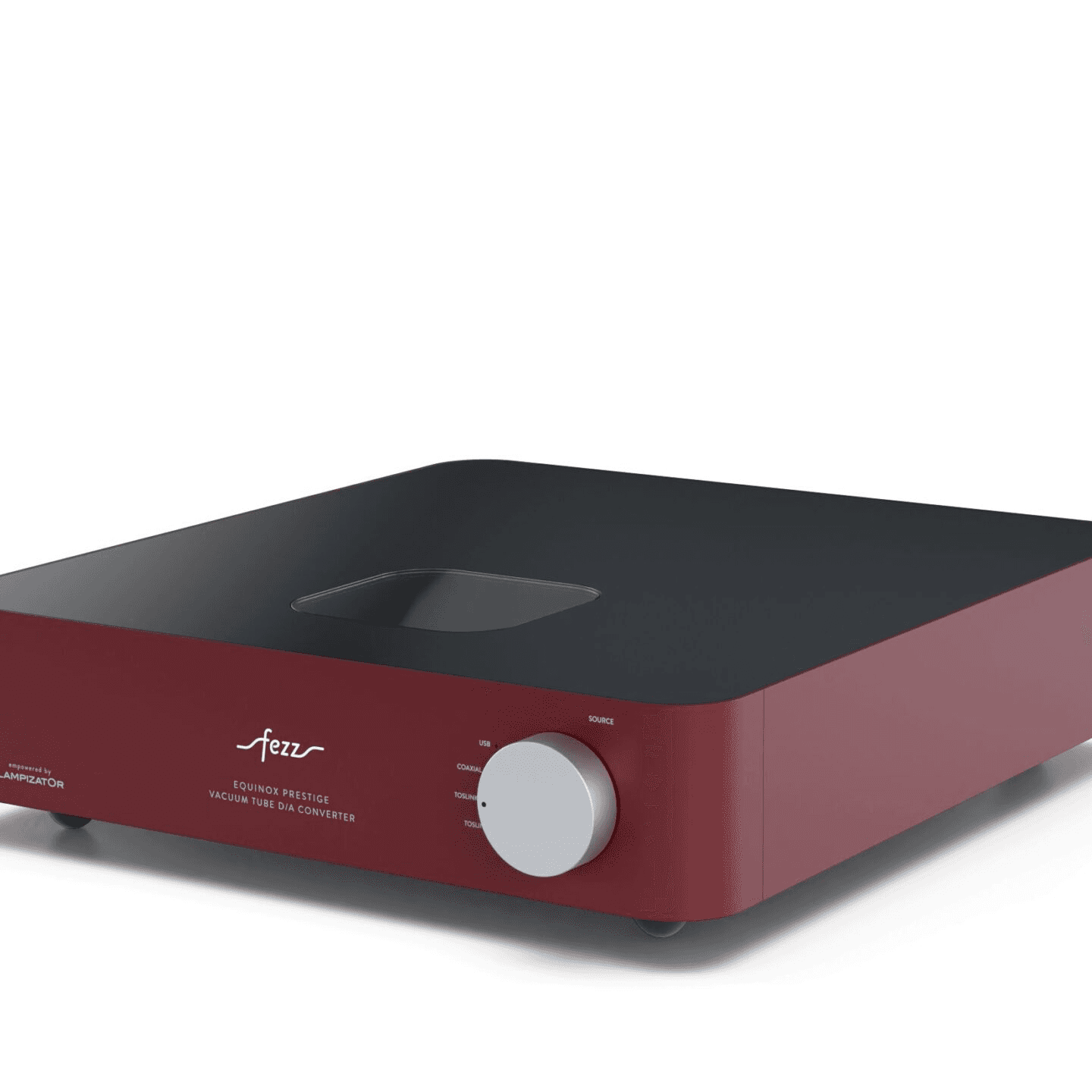

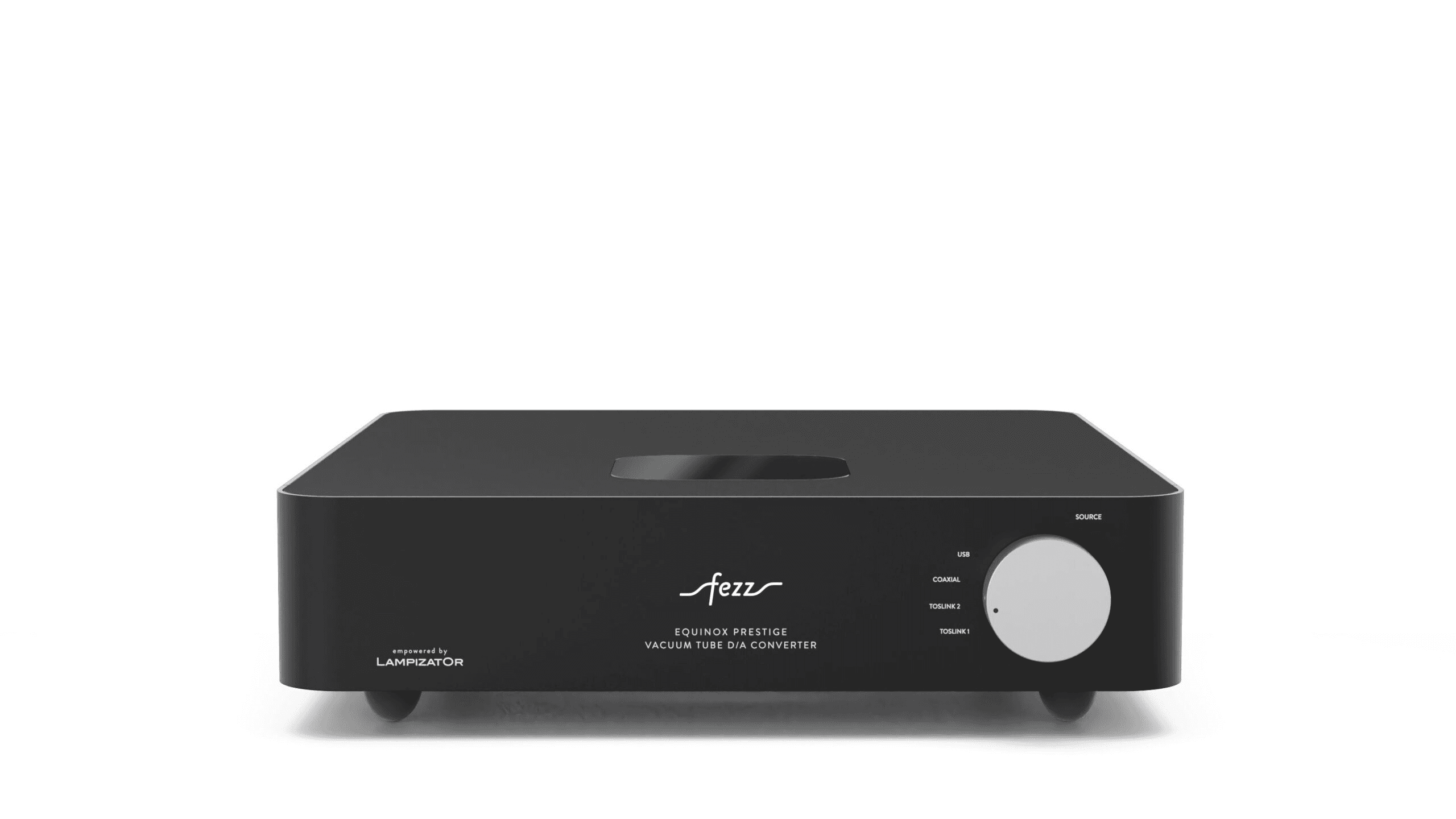

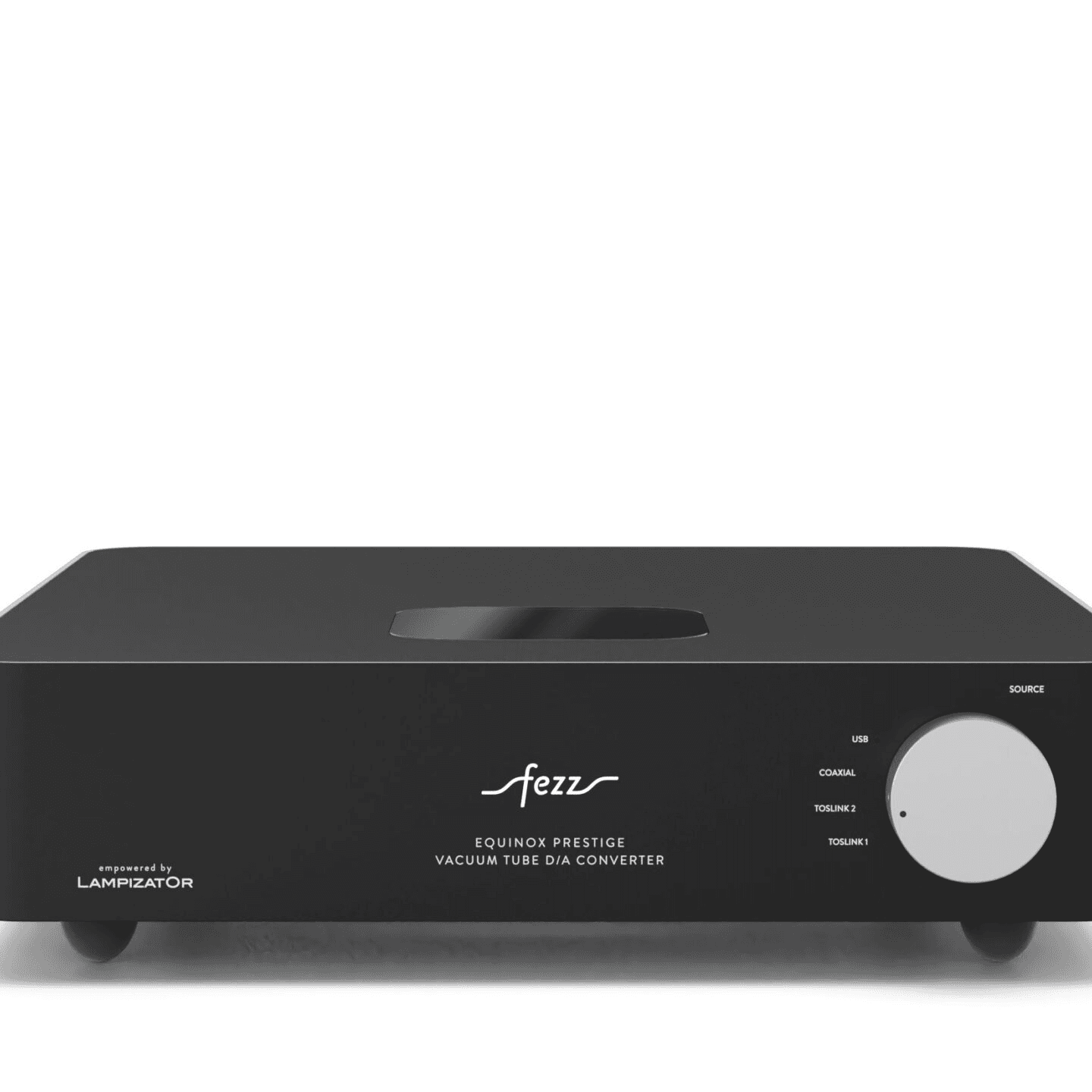

The Fezz Audio Equinox Prestige is a balanced digital-to-analogue converter developed under licence from Lampizator and designed by Łukasz Fikus. Its PCM1794 conversion platform feeds a vacuum-tube analogue stage using two ECC82/12AU7 valves, with stereo RCA and balanced XLR outputs for a suitable amplifier or preamplifier.

Digital conversion and power supply

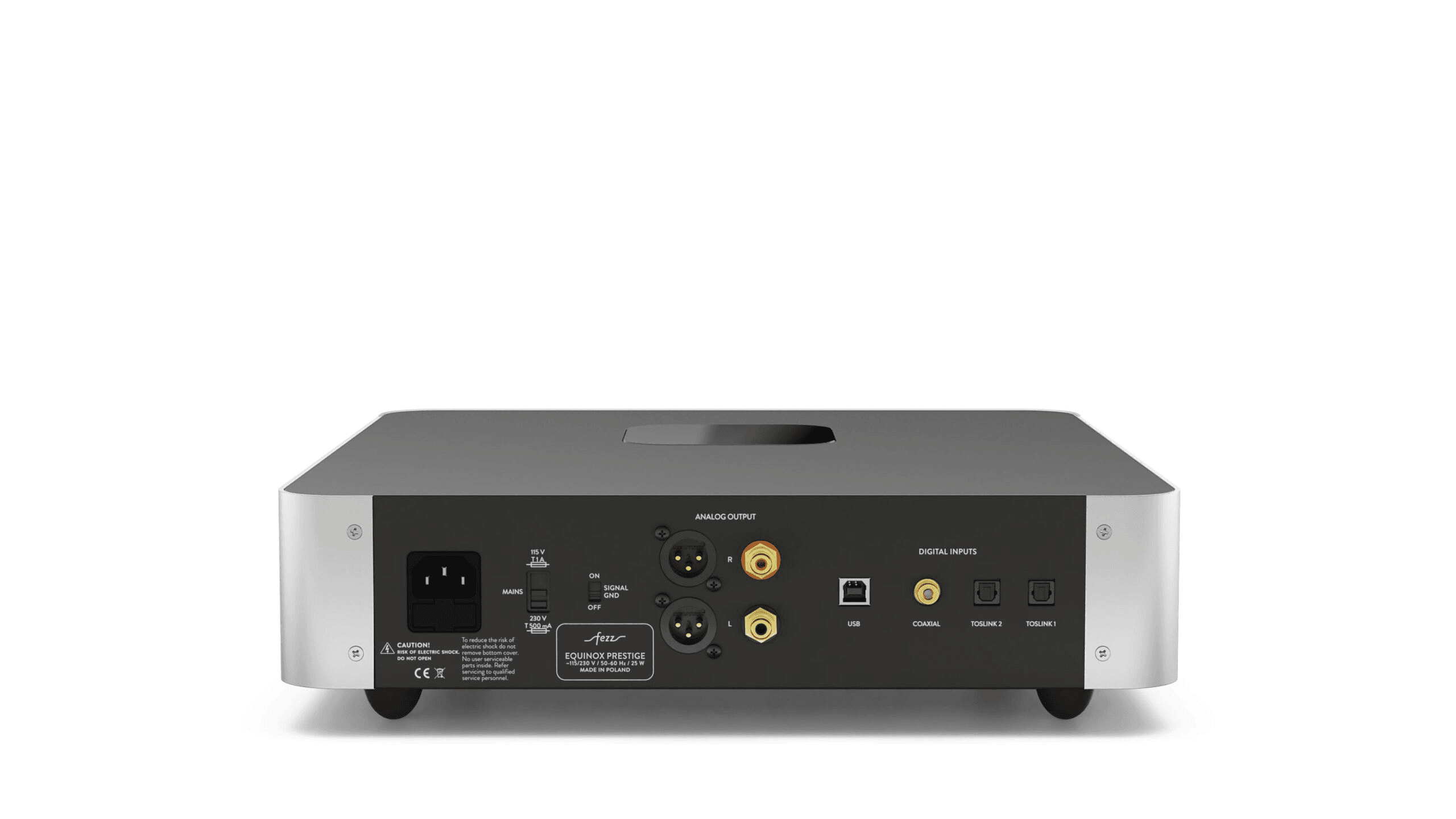

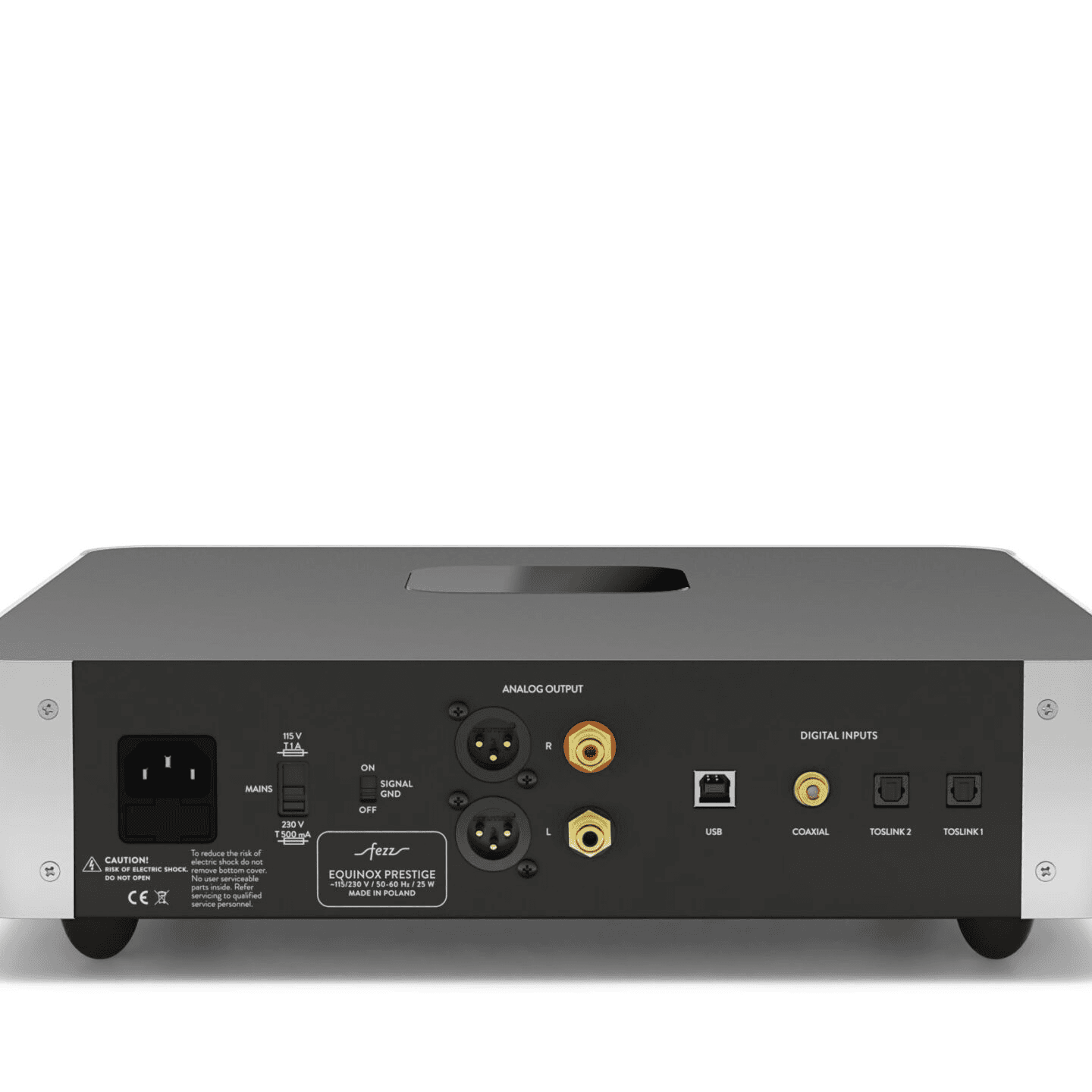

Two optical Toslink inputs, one coaxial input and a USB Type B computer connection accommodate digital sources. S/PDIF supports PCM up to 24-bit/192 kHz, while USB accepts compatible PCM streams up to 32-bit/384 kHz. The design uses an AKM4118 S/PDIF receiver and no oversampling. A dedicated Fezz/Toroidy Audio Supreme toroidal transformer supplies the circuitry.

Chassis and system integration

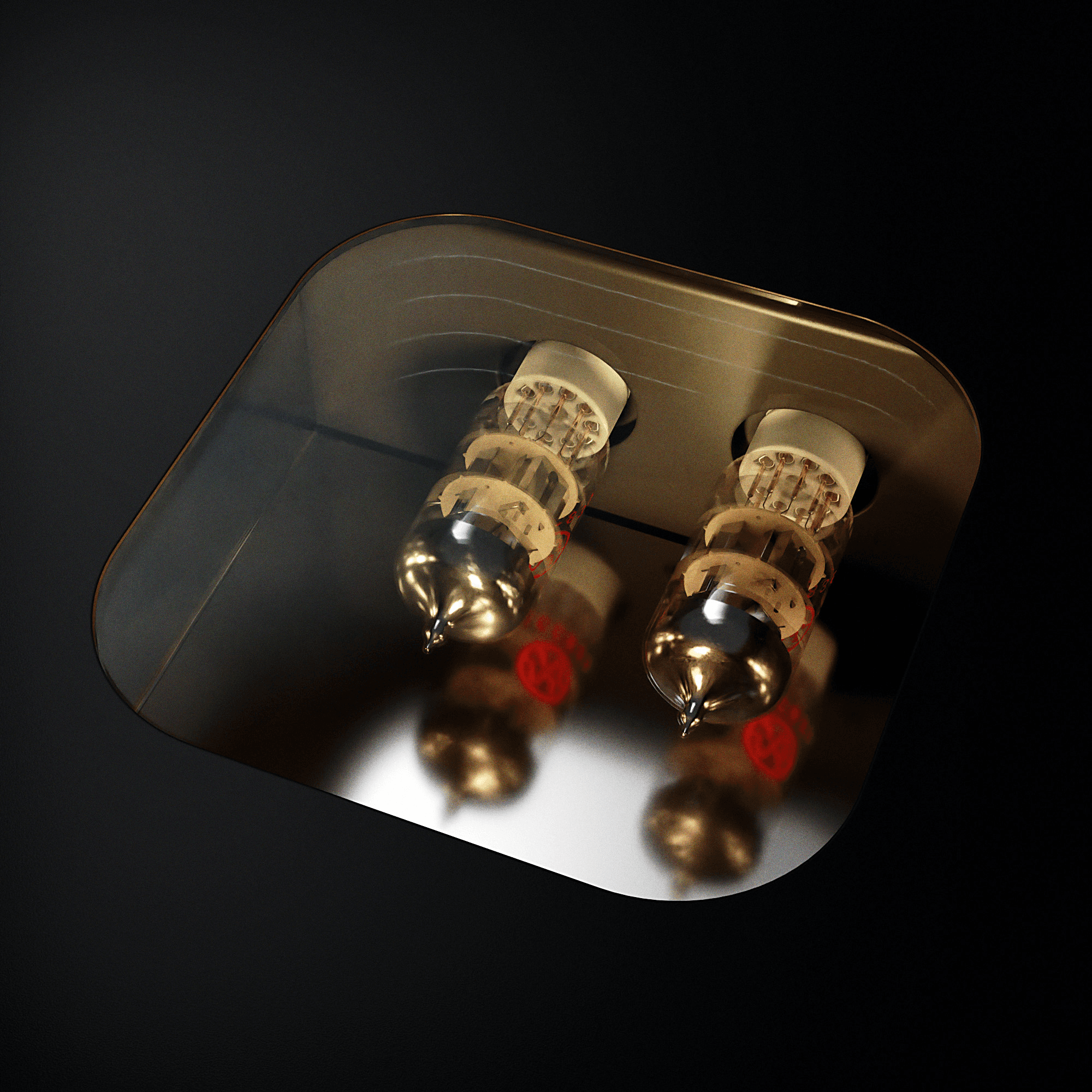

A front selector chooses the digital input; listening volume is controlled by the connected amplifier or preamplifier. The top sliding cover provides access to the tubes for servicing by following the manual’s safety procedure. A ground-loop switch helps address installation-related hum. Moonlight, Black Ice, Burning Red, EverGreen, Big Calm, Republika and Sunlight finishes offer different chassis colours within the same two-valve Prestige design.

Specifications

Type
Balanced tube-output DAC; Lampizator-licensed design
Designer
Łukasz Fikus
DAC platform
Burr-Brown PCM1794
Tube complement
2 × ECC82 / 12AU7
S/PDIF receiver
Asahi Kasei AKM4118
Oversampling
None
Digital inputs
2 optical Toslink; 1 coaxial; 1 USB Type B
S/PDIF PCM
16–24 bit; 32–192 kHz
USB PCM
Up to 32-bit/384 kHz
Analogue outputs
Stereo RCA; balanced stereo XLR
THD
Less than 0.05%
Power transformer
Dedicated Fezz/Toroidy Audio Supreme toroidal
Controls
Digital source selector; ground-loop switch
Volume control
Use connected amplifier or preamplifier
Power consumption
25 W
Mains versions
115–120 V or 230–240 V; 50/60 Hz
Finishes
Big Calm; Black Ice; Burning Red; EverGreen; Moonlight; Republika; Sunlight

Dimensions

Manufacturer dimensions (listed order)
355 × 380 × 100 mm; axes not labelled
