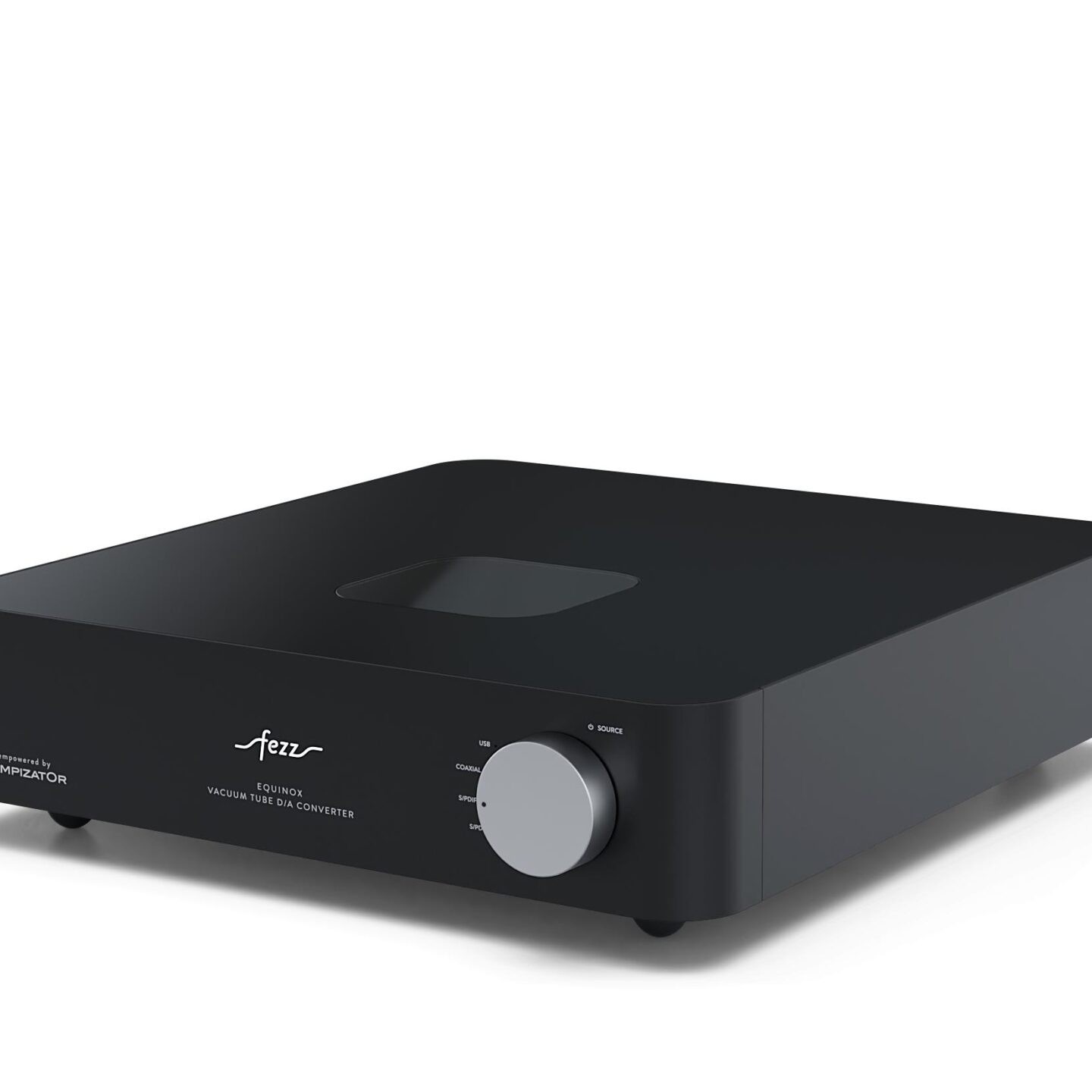

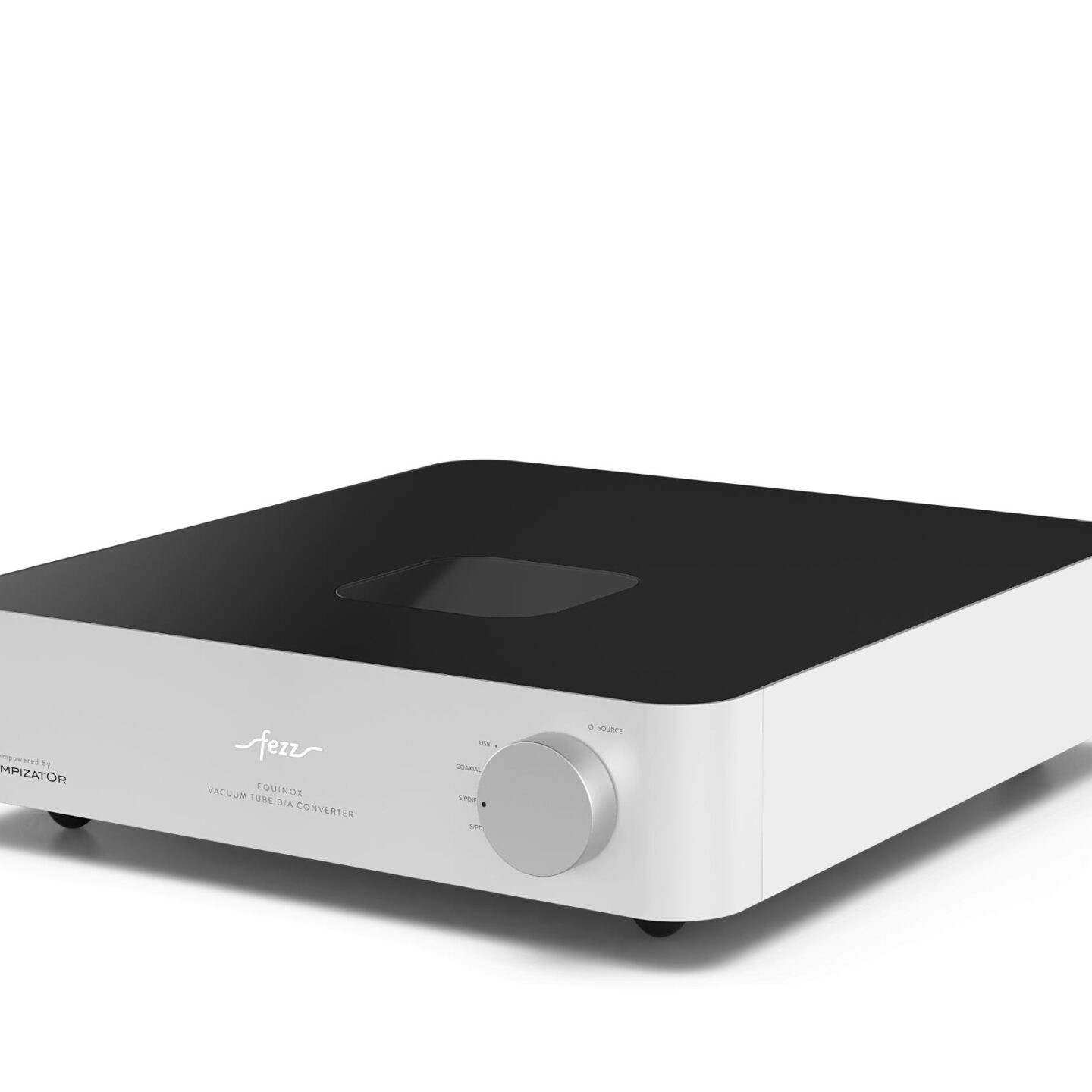

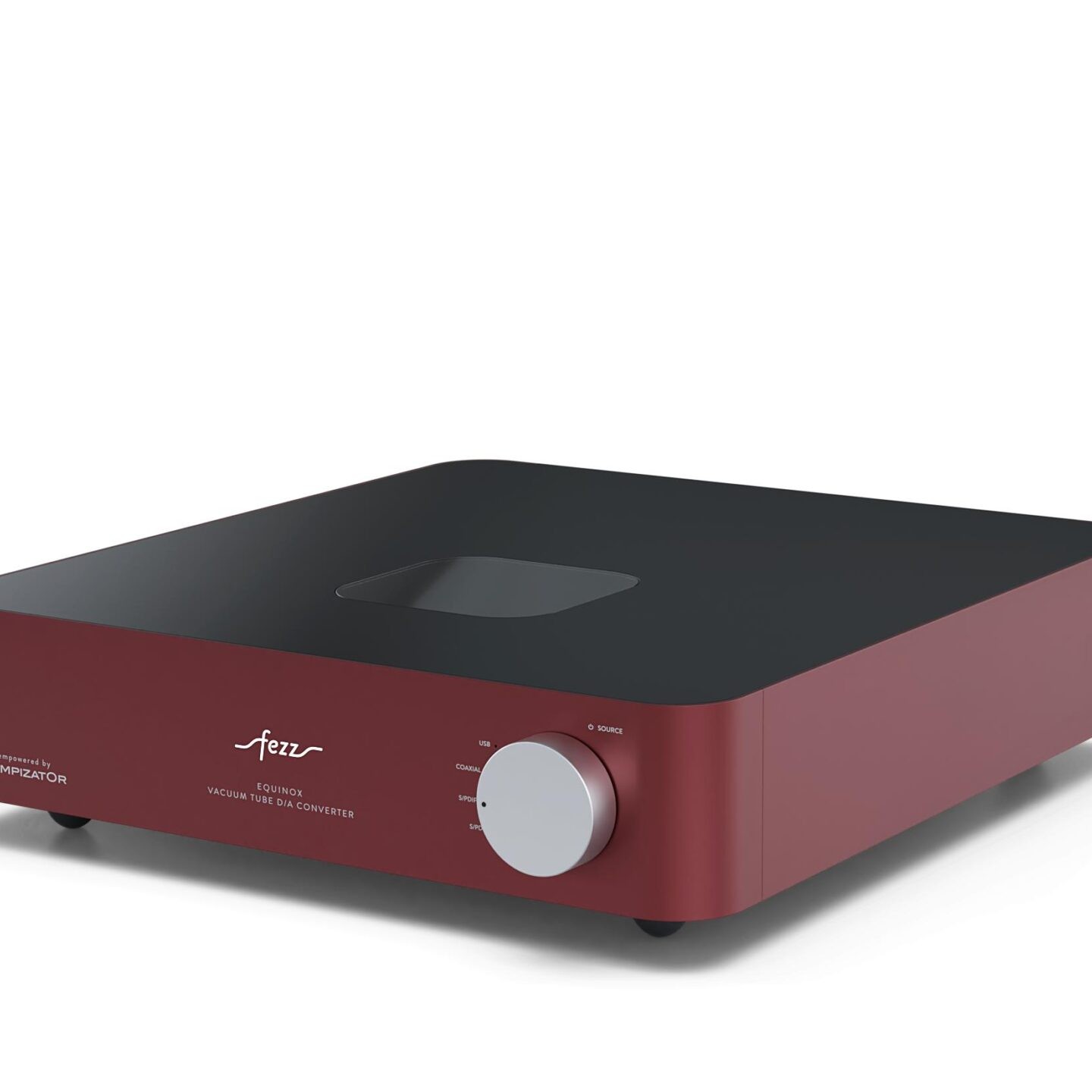

Product view 1
Product view 2
Product view 3
Product view 4
Product view 5
Product view 6
Product view 7
By Fezz

Equinox

DAC

$4,499.00

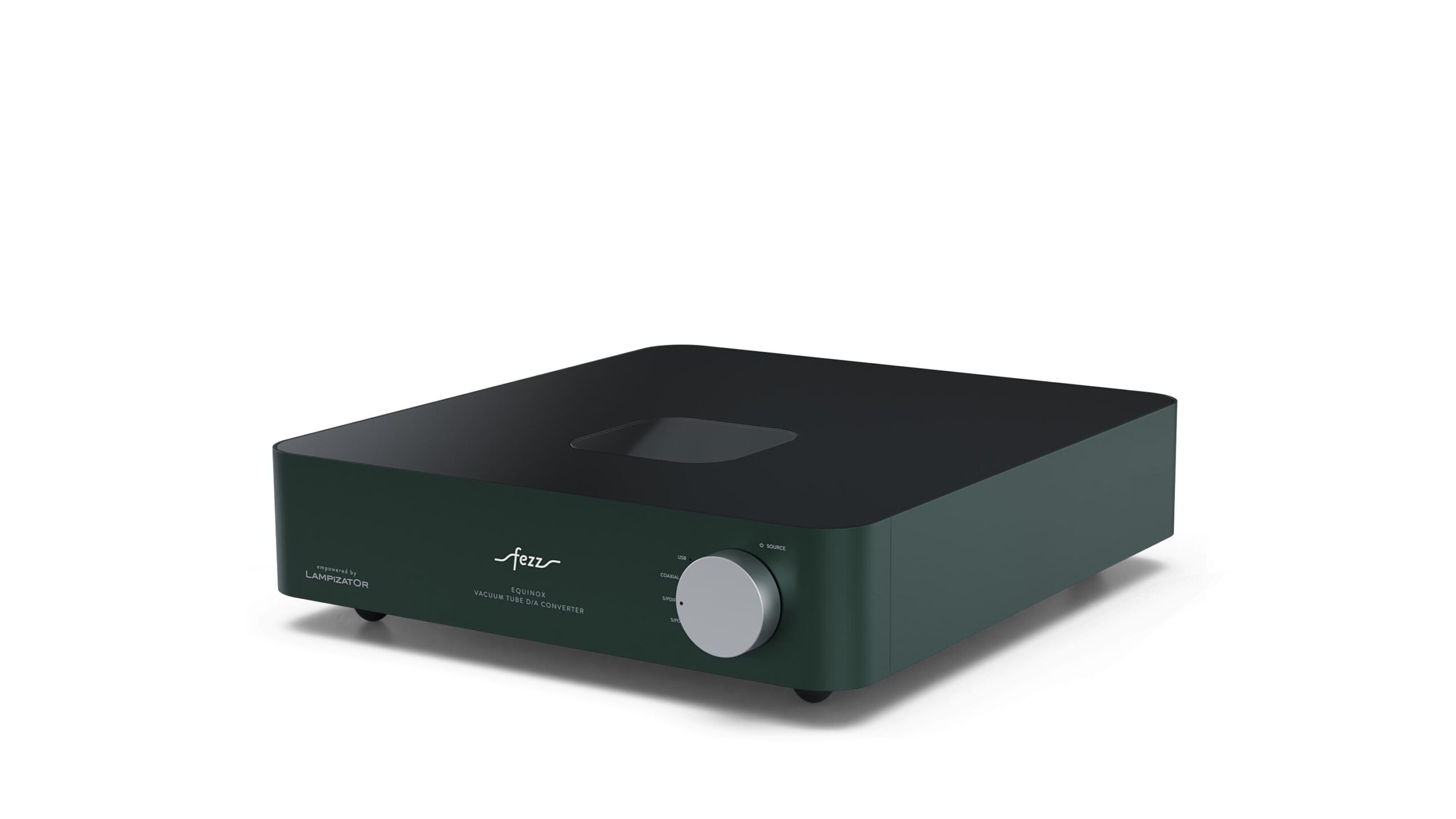

Finish — EverGreen

Model

In-store demo

Available

Stock availability

Available

  • Lampizator-licensed conversion

    PCM1794 platform designed by Łukasz Fikus.

  • ECC82 / 12AU7 valve stage

    Single valve with access through a sliding top window.

  • USB, optical and coaxial inputs

    Stereo RCA analogue output to a partnering amplifier.

  • High-resolution PCM playback

    USB support up to 32-bit/384 kHz.

Product details

The Fezz Equinox is a stereo digital-to-analogue converter developed under licence from Lampizator and designed by Łukasz Fikus. Its conversion platform uses a Burr-Brown PCM1794 chipset, with an ECC82/12AU7 valve in the analogue section and a dedicated toroidal transformer from Fezz/Toroidy.

Digital sources and analogue connection

A USB Type-B input connects a compatible computer or digital source, alongside two optical TOSLINK inputs and one coaxial RCA digital input. The manufacturer’s manual specifies PCM support up to 24-bit/192 kHz for the conventional digital inputs and up to 32-bit/384 kHz over USB. A stereo RCA output connects to a line input on an integrated amplifier or preamplifier.

Valve access and presentation

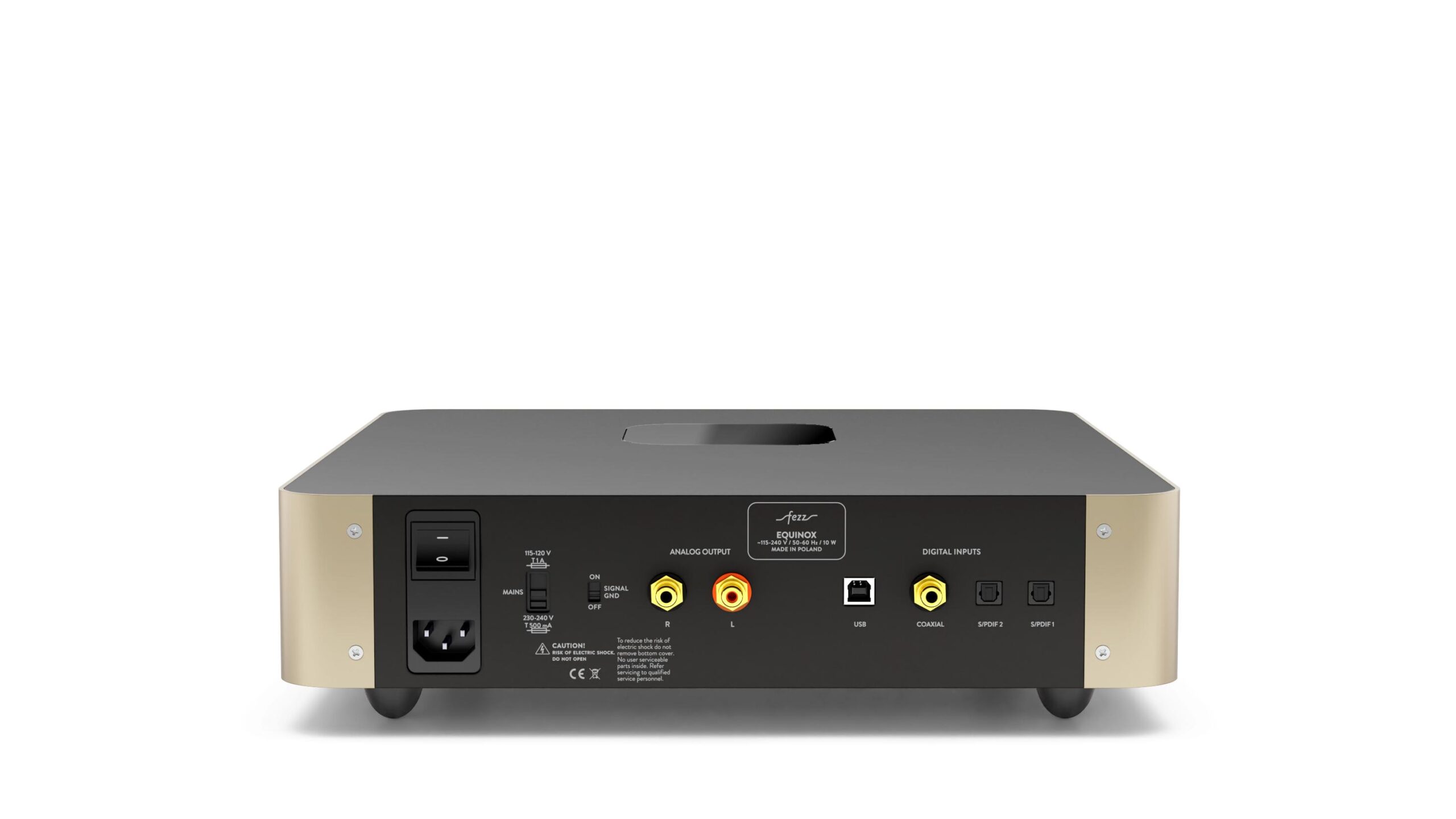

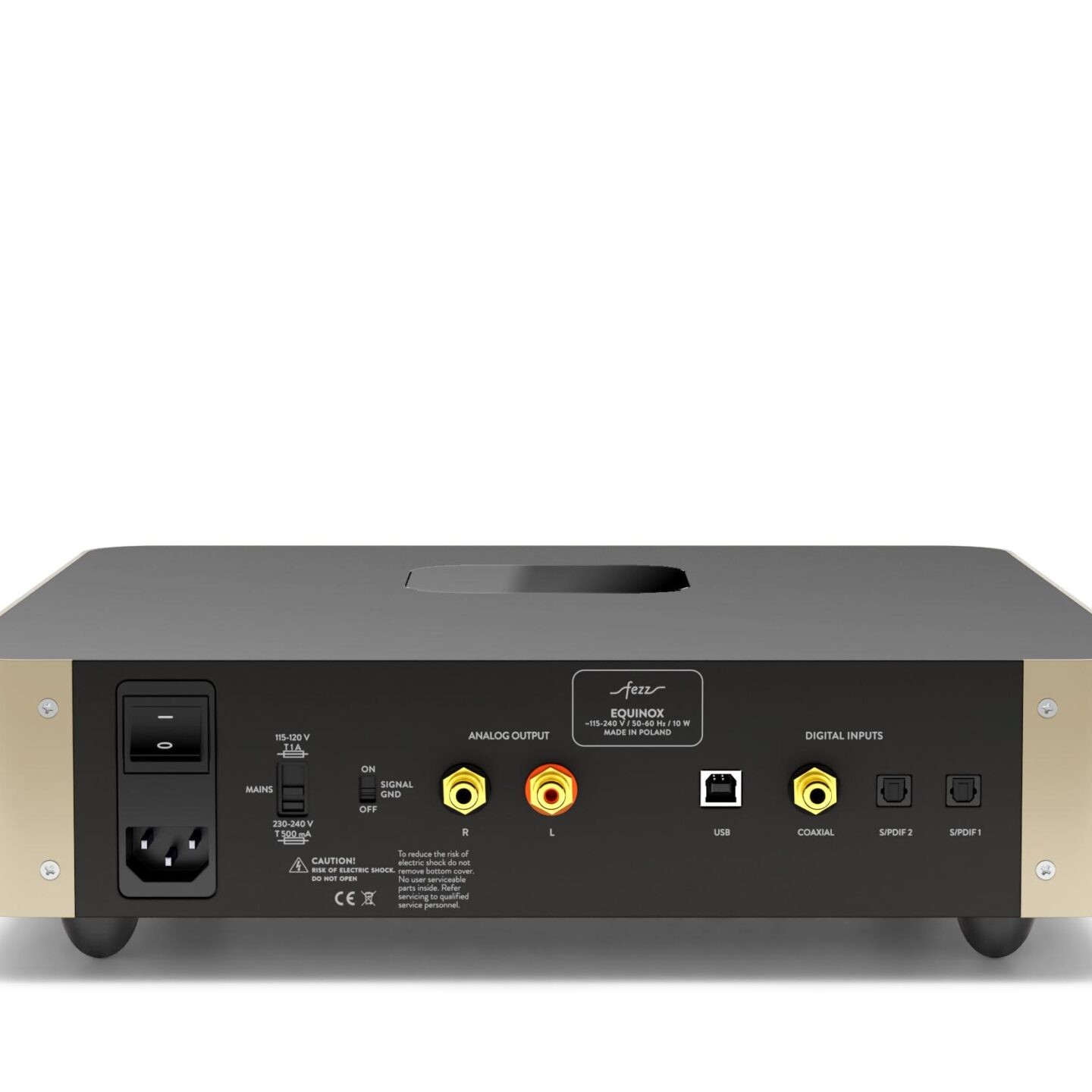

A front rotary selector chooses the connected source, while a sliding top-panel window provides access to the single valve for servicing or a compatible replacement. The rear panel includes a ground-loop switch. This listing covers the original Equinox EVO design, with the existing EverGreen presentation retained. Fezz also offers other named Evolution-line finishes. Playback volume is controlled by the partnering amplifier; the Equinox serves as a source converter within that system.

Specifications

Type
Stereo valve-output DAC; original Equinox EVO
Design
Łukasz Fikus; Lampizator licence
DAC chipset
Burr-Brown PCM1794
Valve
1 × ECC82 / 12AU7
S/PDIF receiver
AKM4118
Digital inputs
USB Type-B; 2 optical TOSLINK; 1 coaxial RCA
PCM support
32–192 kHz; 16–24 bit; USB up to 384 kHz / 32 bit
Analogue output
1 stereo RCA pair
Source selection
Front rotary control
Ground-loop switch
Rear panel
Valve access
Sliding top-panel window
Power transformer
Dedicated Fezz/Toroidy toroidal
THD
Less than 0.05%; manufacturer specification
Manufacture
Poland
Manufacturer finishes
Big Calm; Black Ice; Burning Red; EverGreen; Moonlight; Republika; Sunlight
