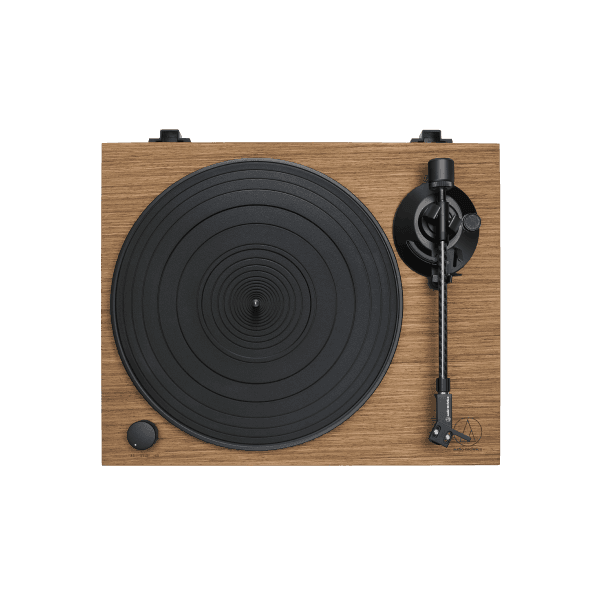

Product view 1
Product view 2

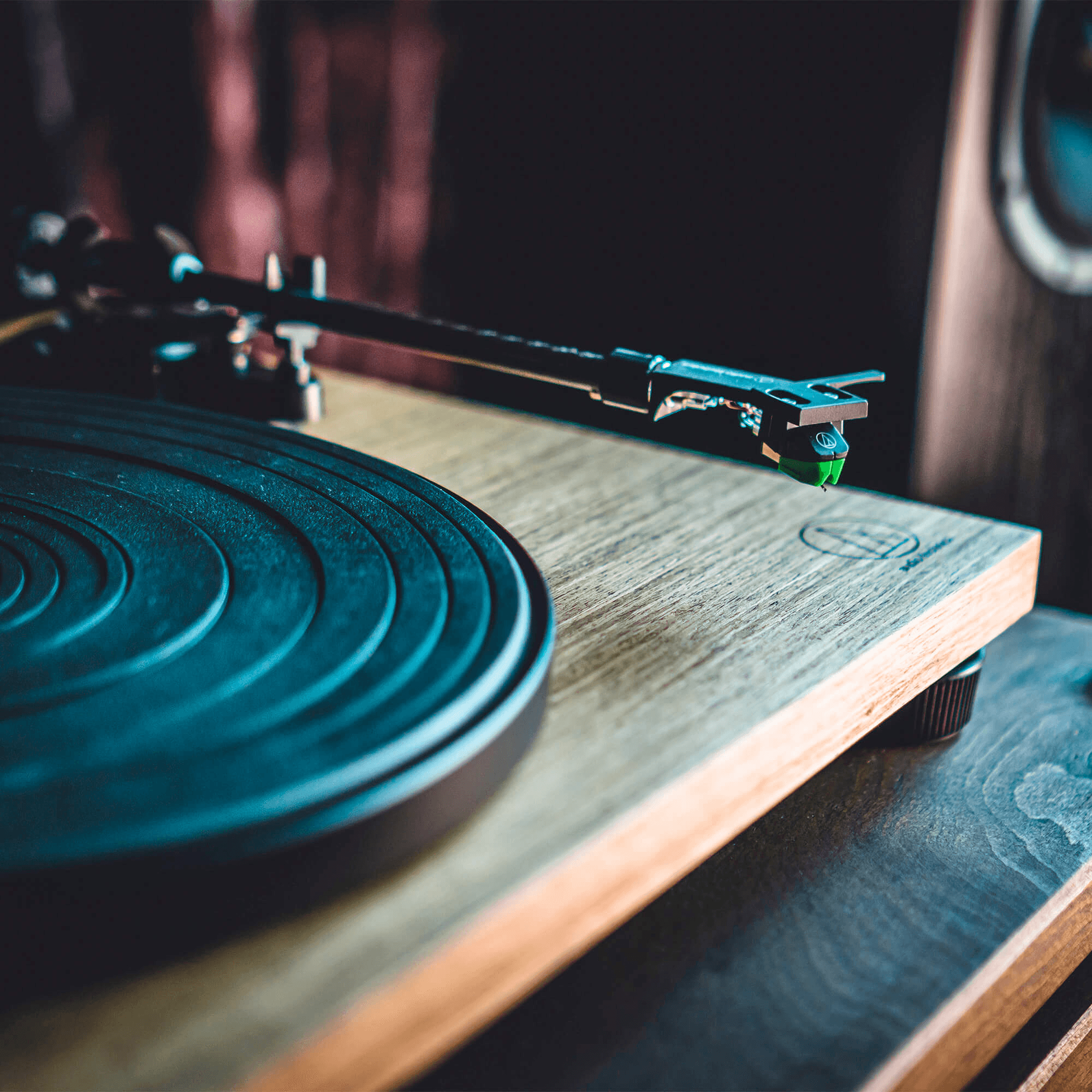

Product view 3
Product view 4
Product view 5
Product view 6
Product view 7
Product view 8
Product view 9
By Audio Technica

LPW40WN

Turntable

$699.00

In-store demo

Available

Stock availability

Available

  • Stabilised belt-drive playback

    Sensor-monitored motor with 33⅓ and 45 rpm speeds.

  • Carbon-fibre tonearm

    Static-balanced design with adjustable anti-skating.

  • AT-VM95E cartridge included

    Bonded elliptical stylus in an AT-HS4 headshell.

  • Switchable phono preamplifier

    RCA connection to phono or line-level inputs.

Product details

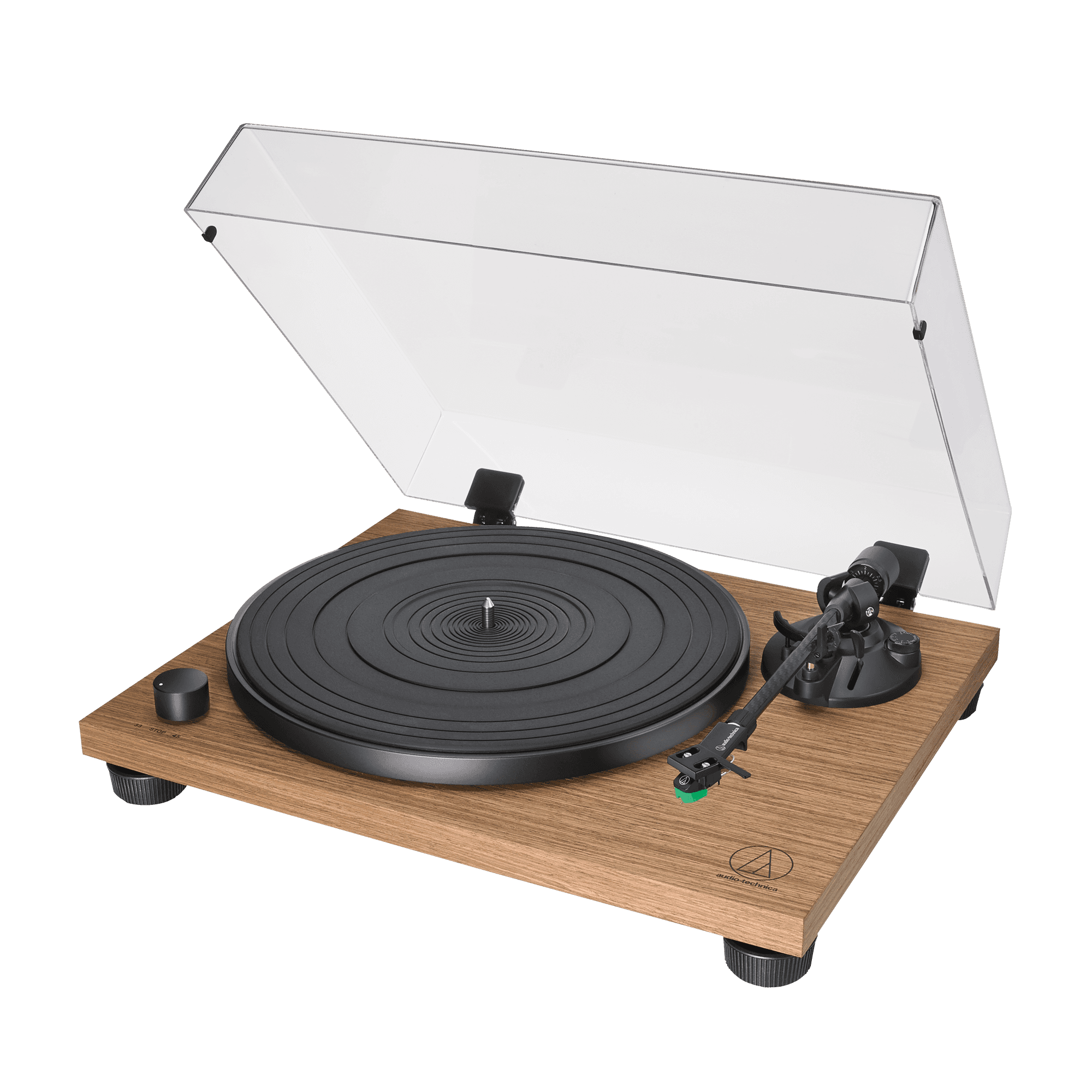

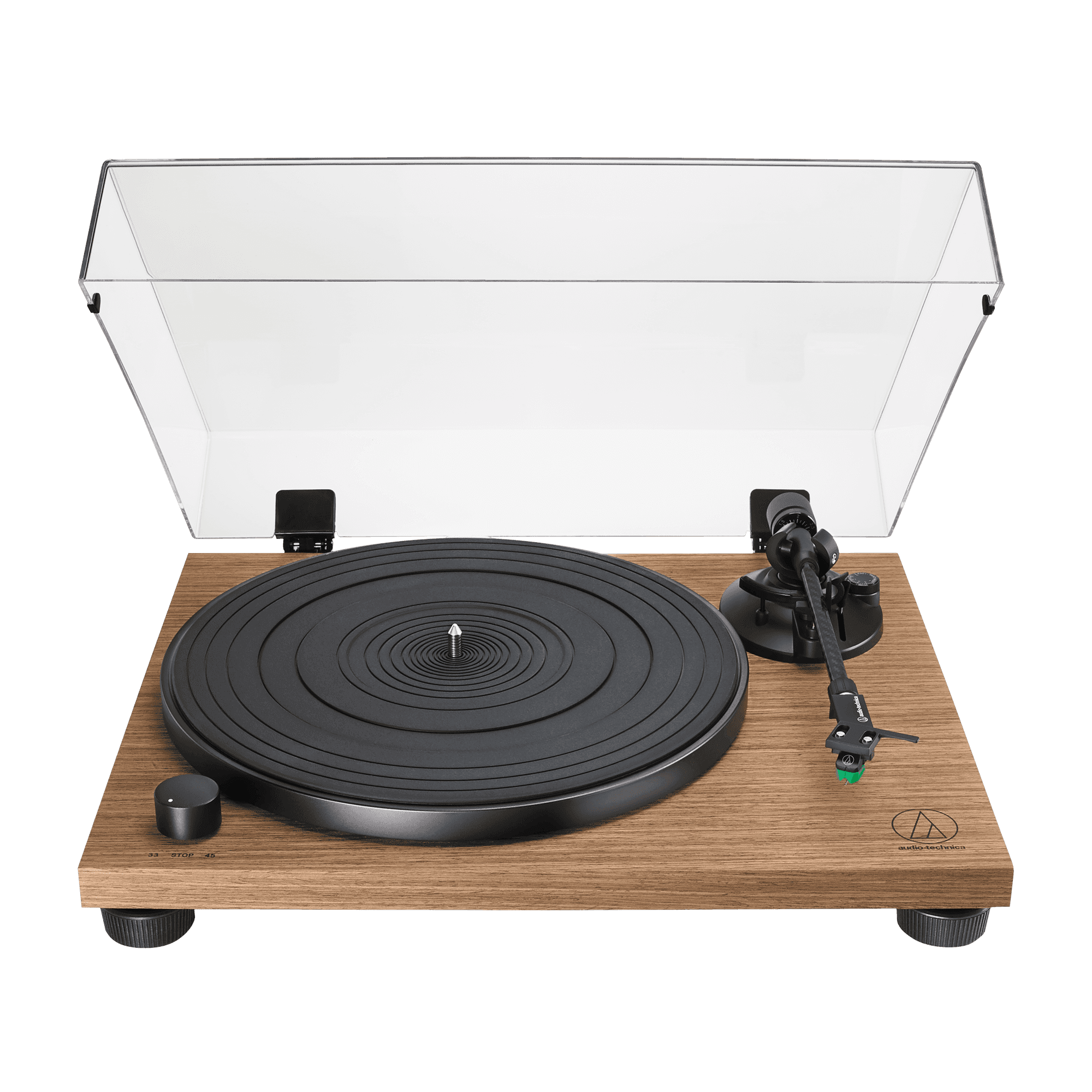

The Audio-Technica AT-LPW40WN is a fully manual belt-drive turntable with a simulated-walnut veneer over an MDF plinth. Its sensor-monitored DC servo motor stabilises platter rotation at either 33⅓ or 45 rpm, with a die-cast aluminium platter and removable mat supporting the record.

Tonearm and supplied cartridge

A straight carbon-fibre tonearm carries the included AT-HS4 headshell and AT-VM95E moving-magnet cartridge. The cartridge uses a bonded elliptical stylus and a recommended tracking force of two grams. Adjustable anti-skating and counterweight settings allow the arm to be balanced and set for the fitted cartridge.

Phono or line-level connection

The built-in switchable phono preamplifier allows connection either to a line-level input or to an external phono stage through the RCA outputs. An AC adapter, RCA audio cable, hinged dust cover and 45 rpm adapter are supplied. Playback is manual: the listener places and lifts the tonearm. The Walnut finish is a decorative veneer rather than a solid-wood plinth, and the specified 4.72-kilogram weight excludes the dust cover.

Specifications

Operation
Fully manual; belt drive
Motor
DC servo with Active Speed Stabilization
Speeds
33⅓ / 45 rpm
Platter
Die-cast aluminium
Wow/flutter
<0.15% WRMS at 33 rpm, 3 kHz
Signal-to-noise
>60 dB
Tonearm
Static-balanced straight carbon-fibre arm
Effective arm length
223.6 mm
Overhang
18.6 mm
Cartridge
Included AT-VM95E moving magnet
Stylus
0.3 × 0.7 mil bonded elliptical
Tracking force
1.8–2.2 g; standard 2.0 g
Headshell
AT-HS4
Output selection
Switchable PHONO / LINE
Output levels
4.0 mV PHONO / 200 mV LINE; 1 kHz, 5 cm/s
Phono stage gain
35 dB nominal; RIAA equalised
Plinth
MDF; simulated walnut veneer
Included
Dust cover; mat; belt; counterweight; 45 rpm adapter; RCA cable; AC adapter

Dimensions

Dimensions (W × H × D)
420 × 116.9 × 340 mm
Weight without dust cover
4.72 kg
