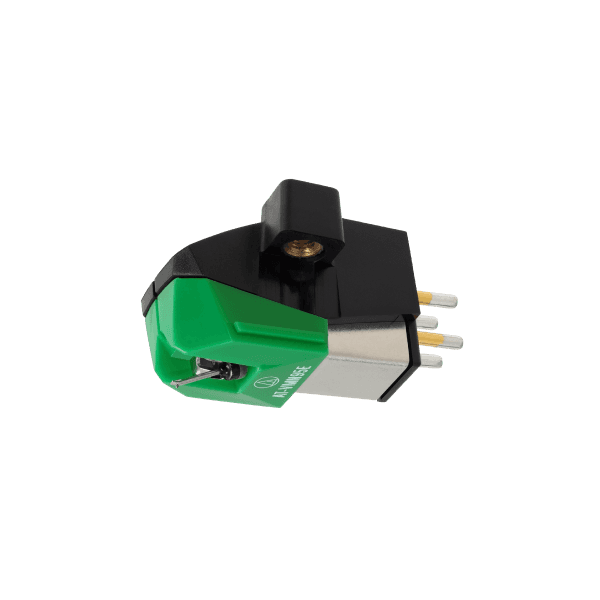

AT-VM95E

Dual Moving Magnet Cartridge

$79.95

In-store demo

Not currently available

Stock availability

Available

Unavailable for demo

Unavailable for demo

Product details

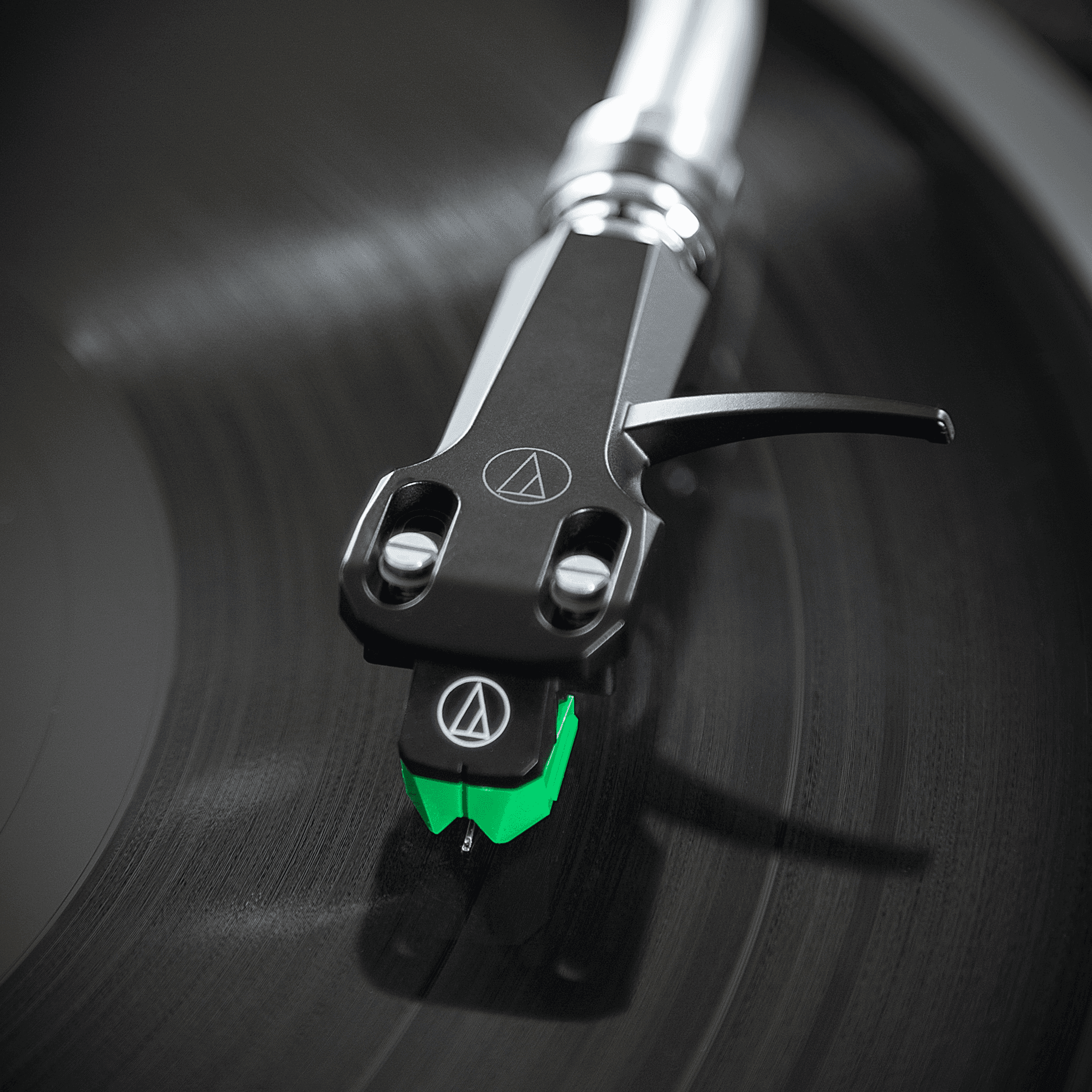

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Specifications

Frequency Response

20 - 22,000 Hz

Channel Separation

20dB (1 kHz)

Vertical Tracking Angle

23 degrees

Vertical Tracking Force

1.8 to 2.2 g (standard 2.0 g)

Stylus Construction

Bonded round shank

Recommended Load Impedance

47,000Ω

Coil Impedance

3.3kΩ (1kHz)

Output Voltage

4.0mV (1kHz, 5cm/sec.)

Output Channel Balance

2.0dB (1kHz)

Stylus Shape

Elliptical

Cantilever

Aluminium Pipe

Static Compliance

17 x 10-6 cm/dyne

Dynamic Compliance

7 x 10-6 cm/dyne (100Hz)

Mounting

1/2” centers / Threaded inserts
