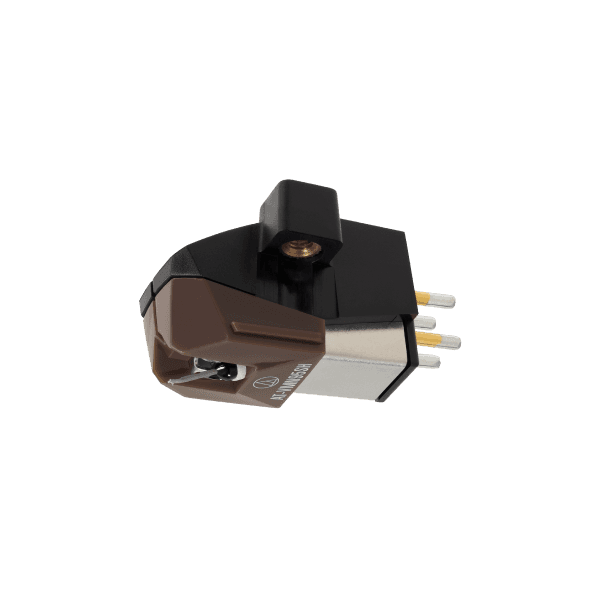

Product view 1
Product view 2
Product view 3
By Audio Technica

AT-VM95SH

Dual Moving Magnet Cartridge

$329.00

Model

In-store demo

Not currently available

Stock availability

Available

  • Shibata stylus

    2.7 × 0.26 mil profile with an aluminium-pipe cantilever.

  • Moving-magnet phono connection

    3.5 mV output; 47 kΩ recommended load.

  • Half-inch mounting

    Threaded body inserts accept two screws without separate nuts.

  • Replaceable VM95 stylus

    Compatible AT-VMN95 stylus assemblies fit the shared body.

Product details

The Audio-Technica AT-VM95SH is a dual moving-magnet phono cartridge for a half-inch-mount tonearm or headshell. Its 2.7 × 0.26 mil Shibata stylus is carried by an aluminium-pipe cantilever within a low-resonance polymer body.

Mounting and electrical matching

Threaded inserts allow the cartridge to be secured with two mounting screws without separate nuts. The rated output is 3.5 millivolts at one kilohertz and five centimetres per second, for use with a moving-magnet phono input. Recommended loading is 47 kilohms with 100 to 200 picofarads capacitance. Tracking force should be set between 1.8 and 2.2 grams, with two grams as the standard setting.

Replaceable stylus and installation

The AT-VMN95SH stylus assembly can be replaced when worn, and the shared VM95 body accepts other compatible AT-VMN95 styli. This listing is the cartridge rather than a pre-mounted headshell package. Alignment, overhang and tonearm height should follow the turntable and arm instructions. Cartridge weight is 6.1 grams, with a body height of 17.2 mm. The brown / black presentation identifies this stylus version.

Specifications

Frequency Response
20 - 25,000 Hz
Channel Separation
23dB (1 kHz)
Vertical Tracking Angle
23 degrees
Vertical Tracking Force
1.8 to 2.2 g (standard 2.0 g)
Stylus Construction
Nude square shank
Recommended Load Impedance
47,000Ω
Coil Impedance
3.3kΩ (1kHz)
Output Voltage
3.5mV (1kHz, 5cm/sec.)
Output Channel Balance
1.5dB (1kHz)
Stylus Shape
Shibata
Cantilever
Aluminium Pipe
Static Compliance
20 x 10-6 cm/dyne
Dynamic Compliance
10 x 10-6 cm/dyne (100Hz)
Mounting
1/2” centers / Threaded inserts
Type
Dual moving magnet
Stylus profile size
2.7 × 0.26 mil
Recommended load capacitance
100–200 pF
Replacement stylus
AT-VMN95SH
Compatibility
AT-VMN95 replacement styli
Housing
Low-resonance polymer

Dimensions

Dimensions (W × H × D)
18.9 × 17.2 × 28.3 mm
Cartridge weight
6.1 g
