AT-OC9XEN

Dual moving coil cartridge

$699.00

In-store demo

Not currently available

Stock availability

Available

Unavailable for demo

Unavailable for demo

Product details

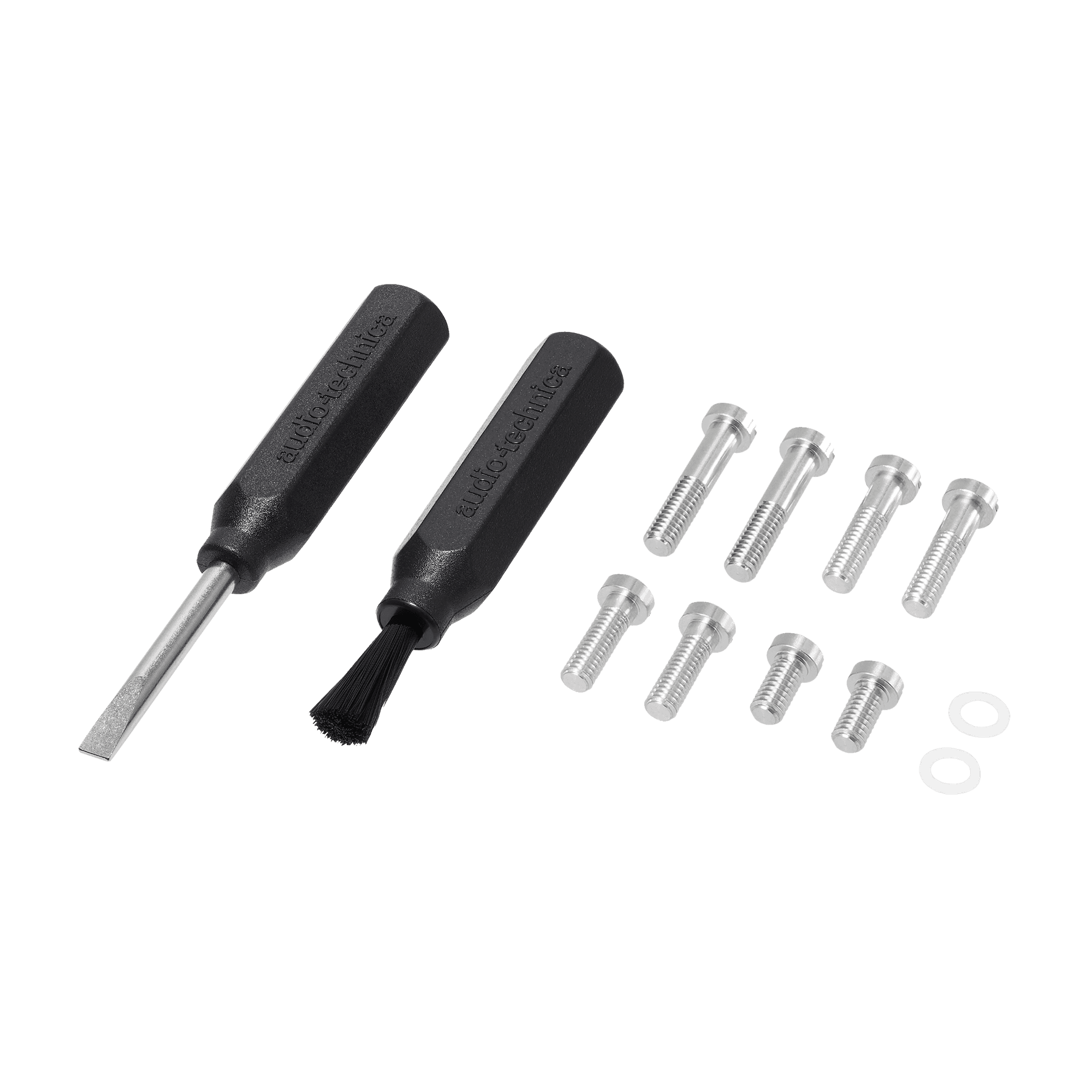

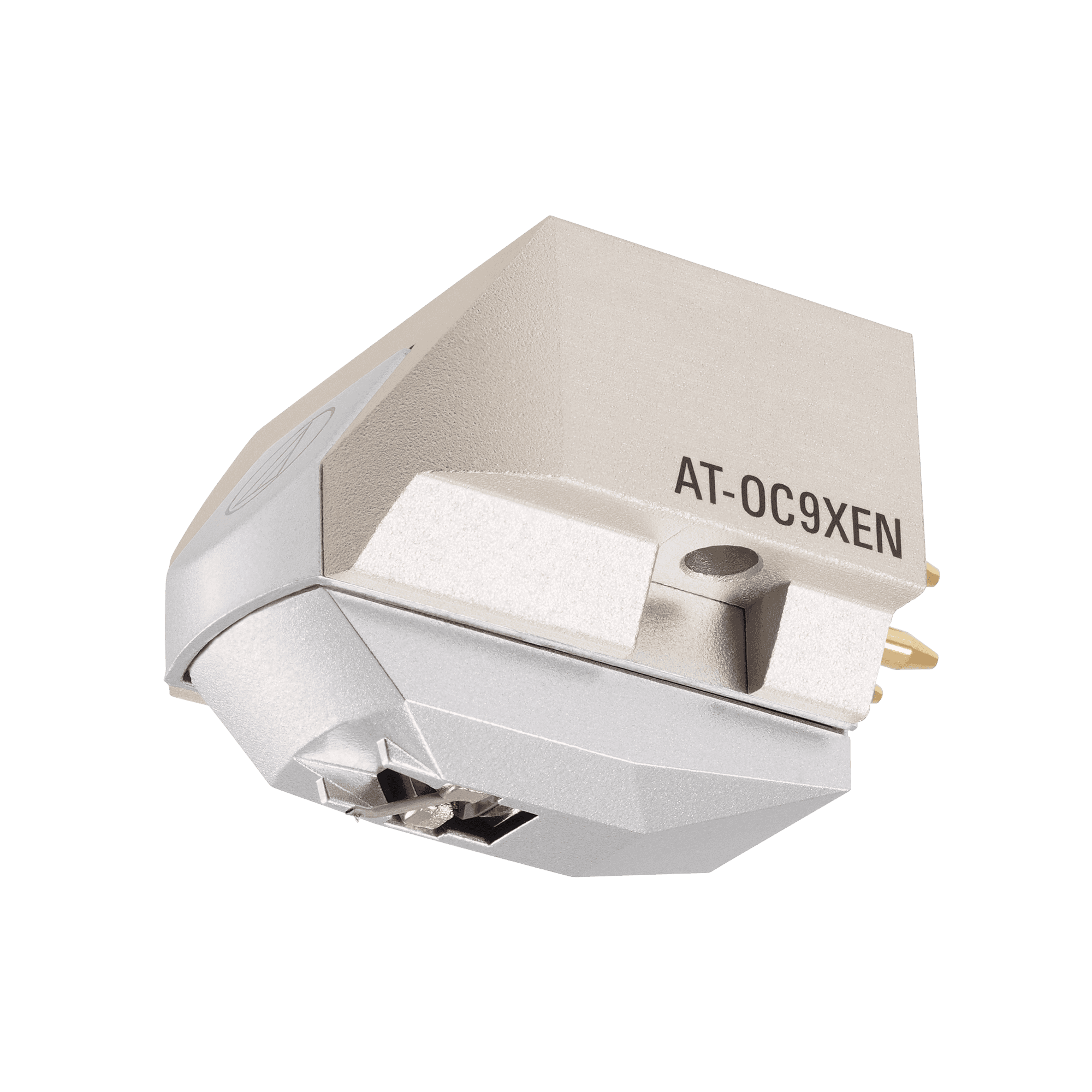

The AT-OC9XEN Dual Moving Coil cartridge with nude elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimising distortion. Audio quality is further enhanced by a rigid aluminium body that reduces resonance, a neodymium magnet and pure iron yoke that increase the magnetic energy, and the low-mass nude elliptical stylus on an aluminium cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Specifications

Frequency Response

20 - 30,000 Hz

Channel Separation

25 dB (1 kHz)

Vertical Tracking Angle

20 degrees

Vertical Tracking Force

1.8 to 2.2 g (standard 2.0 g)

Stylus Construction

Nude square shank

Recommended Load Impedance

Min 100 Ohms

Coil Impedance

12 Ohms (1 kHz)

DC Resistance

12 Ohms

Coil Inductance

25 μH (1 kHz)

Output Voltage

0.35 mV (@ 1 kHz, 5 cm/sec)

Output Channel Balance

1.5 dB (1 kHz)

Stylus Shape

Elliptical Nude

Cantilever

Aluminium pipe

Static Compliance

20 x 10 – 6 cm / dyne

Dynamic Compliance

9 x 10 – 6 cm / dyne (100 Hz)

Mounting

1/2” centers / Threaded inserts
