By Audio Technica

AT-LPA2

Turntable

$3,199.00

In-store demo

Available

Stock availability

Available for order

  • Transparent acrylic platform

    20 mm platter with a clear acrylic turntable chassis.

  • Straight carbon tonearm

    223.6 mm effective length with adjustable setup.

  • Moving-coil cartridge included

    AT-OC9XEN with a nude elliptical stylus.

  • Separate control unit

    External power and speed controls for 33⅓ and 45 rpm.

Product details

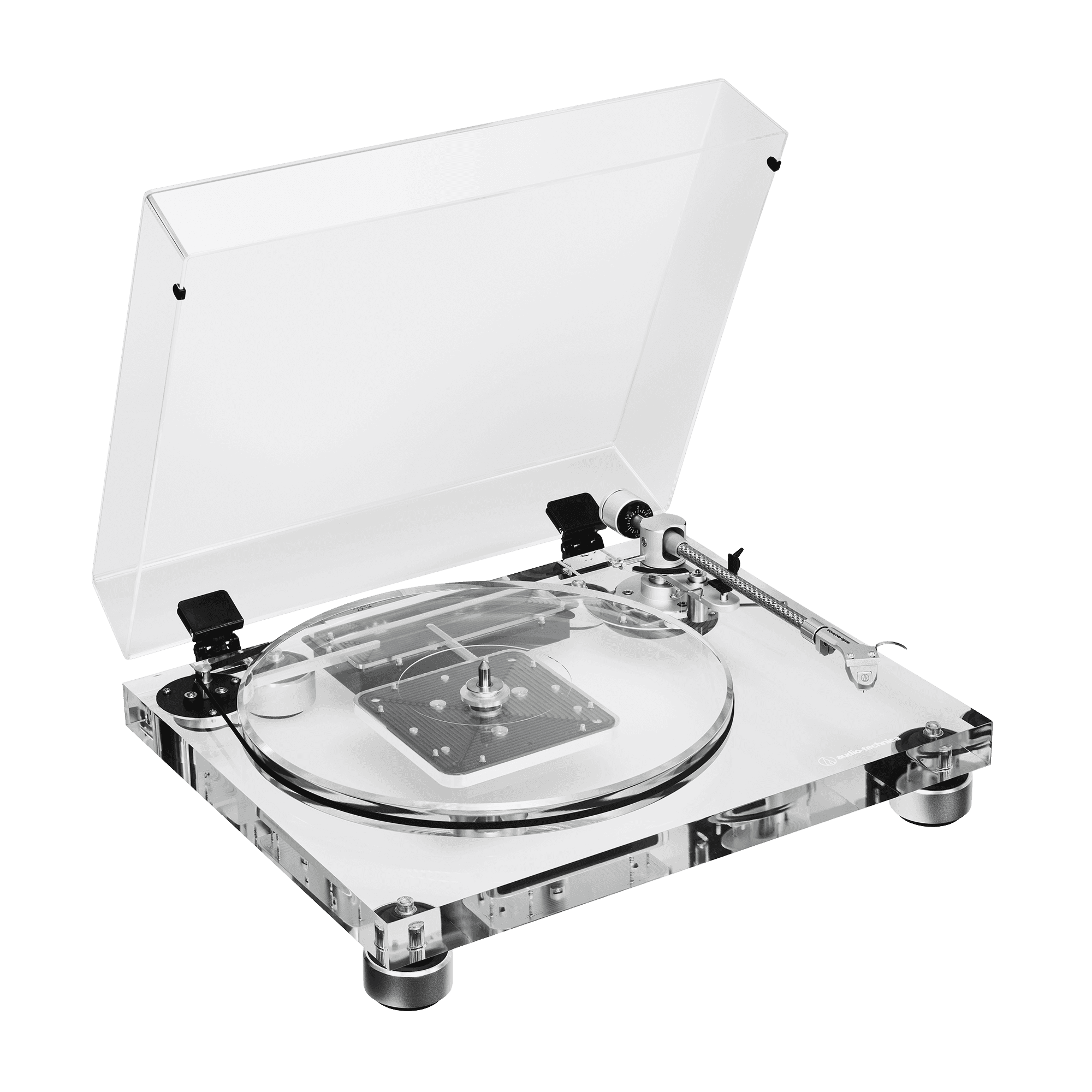

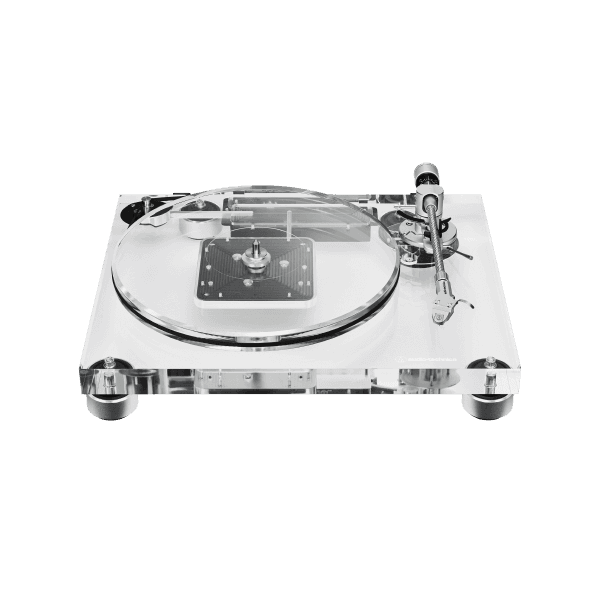

The Audio-Technica AT-LPA2 is a fully manual belt-drive turntable with a transparent acrylic chassis and platter. A separate control unit houses the power and speed controls, while the fitted AT-OC9XEN moving-coil cartridge provides a complete starting point for a suitable MC phono system.

Acrylic platform and carbon tonearm

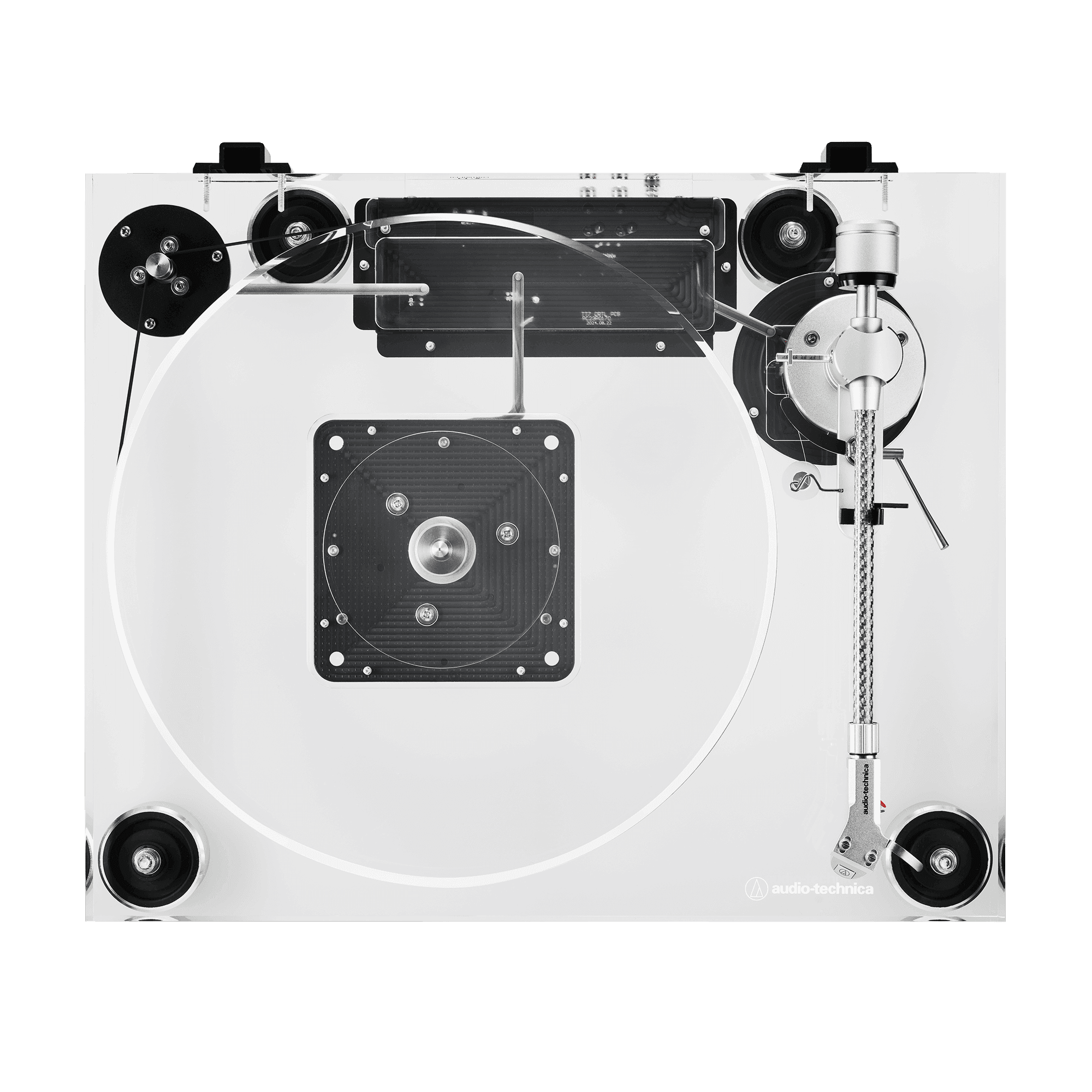

The DC servo motor supports 33⅓ and 45 rpm records through a 20 mm-thick acrylic platter. A straight carbon tonearm provides a 223.6 mm effective length, height adjustment and a detachable headshell. String-and-weight anti-skating and two supplied counterweights support cartridge setup across the specified weight ranges.

Cartridge and system connection

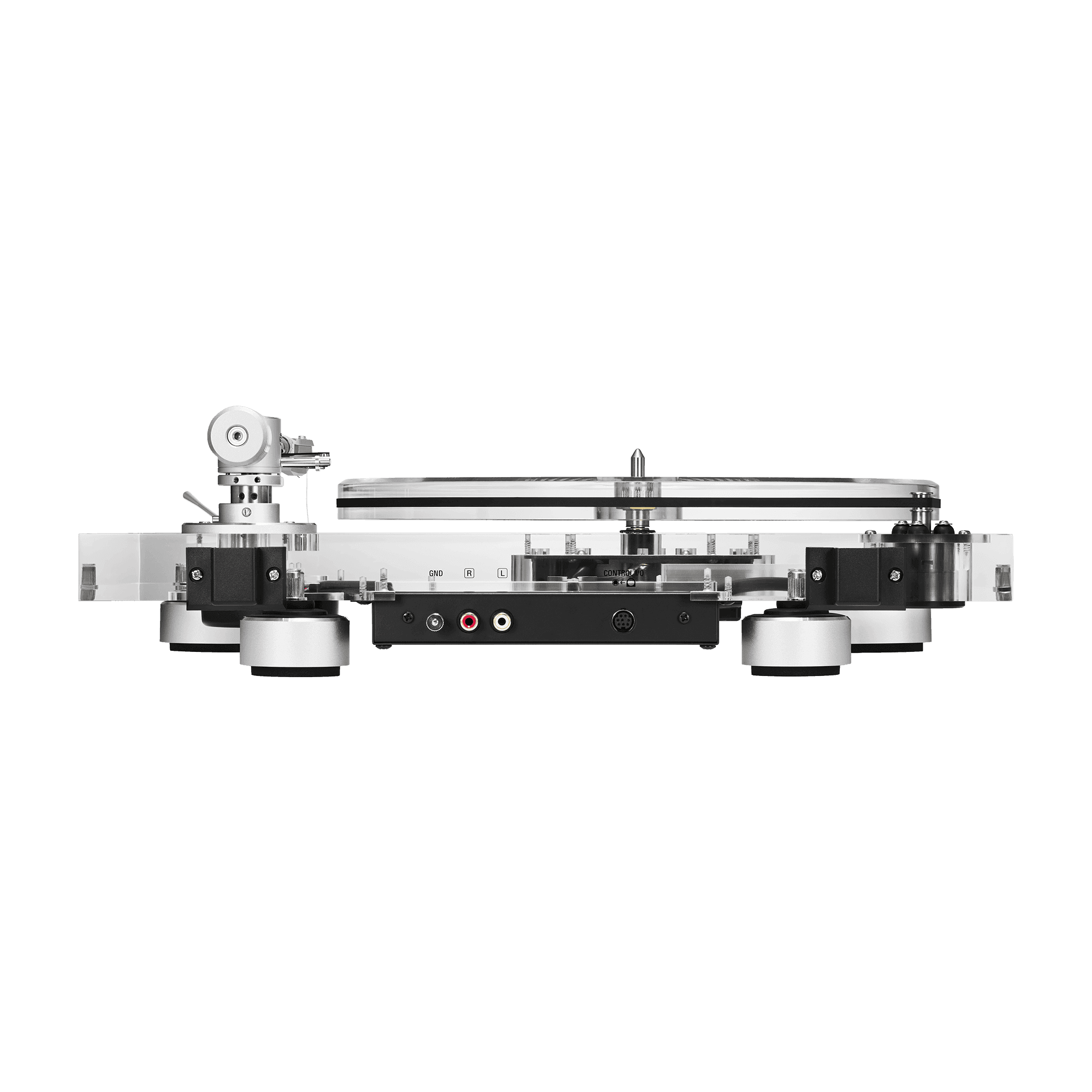

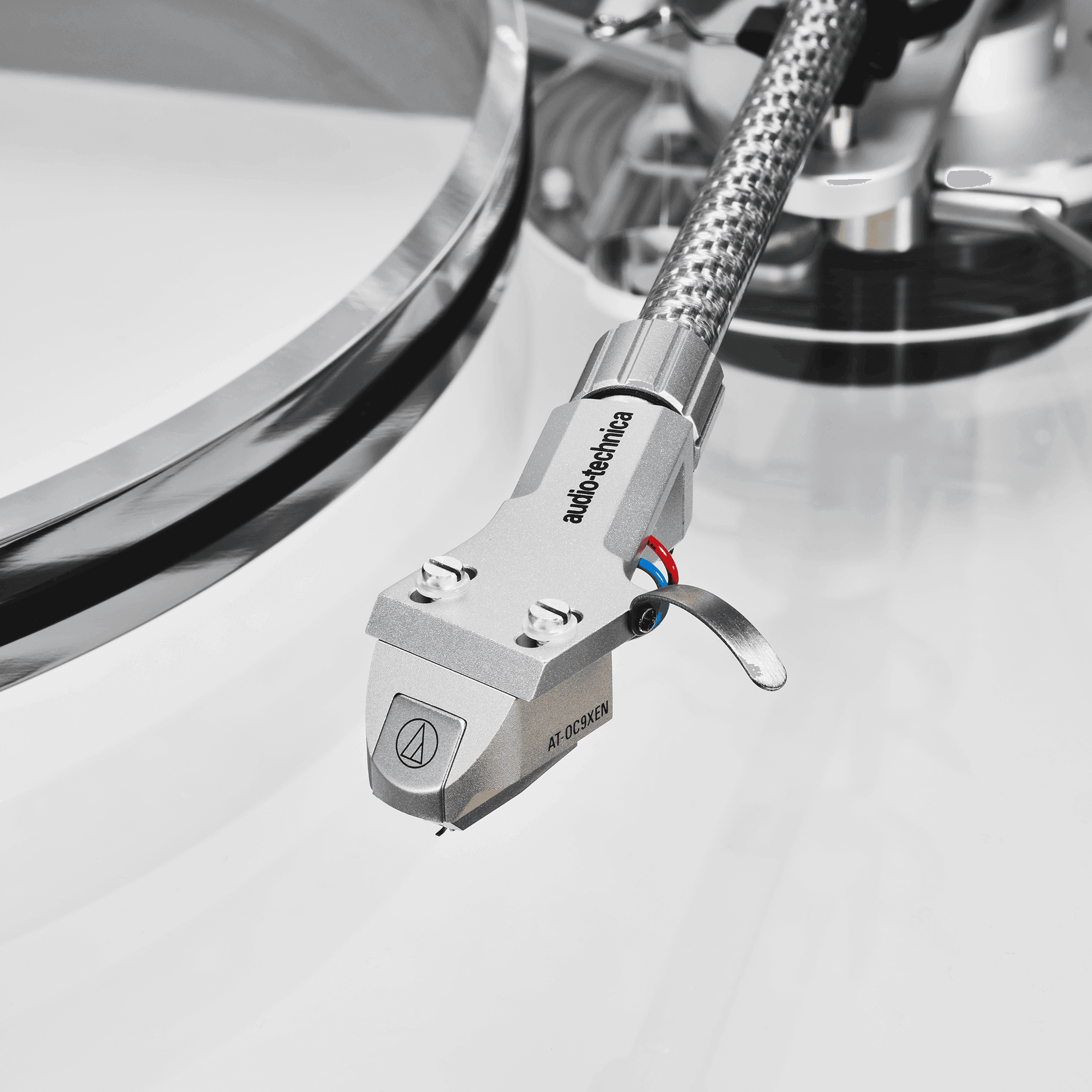

The AT-OC9XEN uses a nude elliptical stylus and aluminium cantilever, with a 0.35 mV output and recommended two-gram tracking force. RCA phono output and a separate ground connection feed an appropriate moving-coil phono stage; the external control unit is not a built-in phono preamplifier. A dust cover, cables and setup accessories are included. The turntable body weighs approximately 8.4 kg, with the separate control unit weighing approximately 1.1 kg.

Specifications

Type
Fully manual belt-drive turntable
Speeds
33⅓; 45 rpm
Motor
DC servo
Platter
20 mm-thick acrylic
Tonearm
Static-balanced straight carbon
Effective length
223.6 mm
Overhang
18.6 mm
Tracking-force adjustment
0–3 g
Tonearm height adjustment
−1.5 to +7 mm with supplied cartridge
Anti-skating
String-and-weight
Cartridge
AT-OC9XEN; moving coil
Stylus
0.3 × 0.7 mil nude elliptical
Cantilever
Aluminium pipe
Cartridge output
0.35 mV at 1 kHz / 5 cm/sec
Recommended load
At least 100 Ω with suitable MC head amplifier
Tracking force
1.8–2.2 g; nominal 2.0 g
Cartridge response
20 Hz–30 kHz
Output
RCA phono level and ground; suitable external MC phono stage required
Wow and flutter
Less than 0.12% WRMS at 33 rpm
Signal-to-noise ratio
Above 60 dB
Power
100–240 V AC; 50/60 Hz; 6 W
Control unit
Separate power/speed unit
Finish
Clear acrylic with metal details

Dimensions

Turntable dimensions (W × H × D)
420 × 135 × 340 mm
Control unit dimensions (W × H × D)
133 × 50 × 228 mm
Turntable weight
Approximately 8.4 kg
Control unit weight
Approximately 1.1 kg
