New

AT-VM750SH

Dual Moving Magnet Cartridge

$699.00

In-store demo

Not currently available

Stock availability

Available

Unavailable for demo

Unavailable for demo

Product details

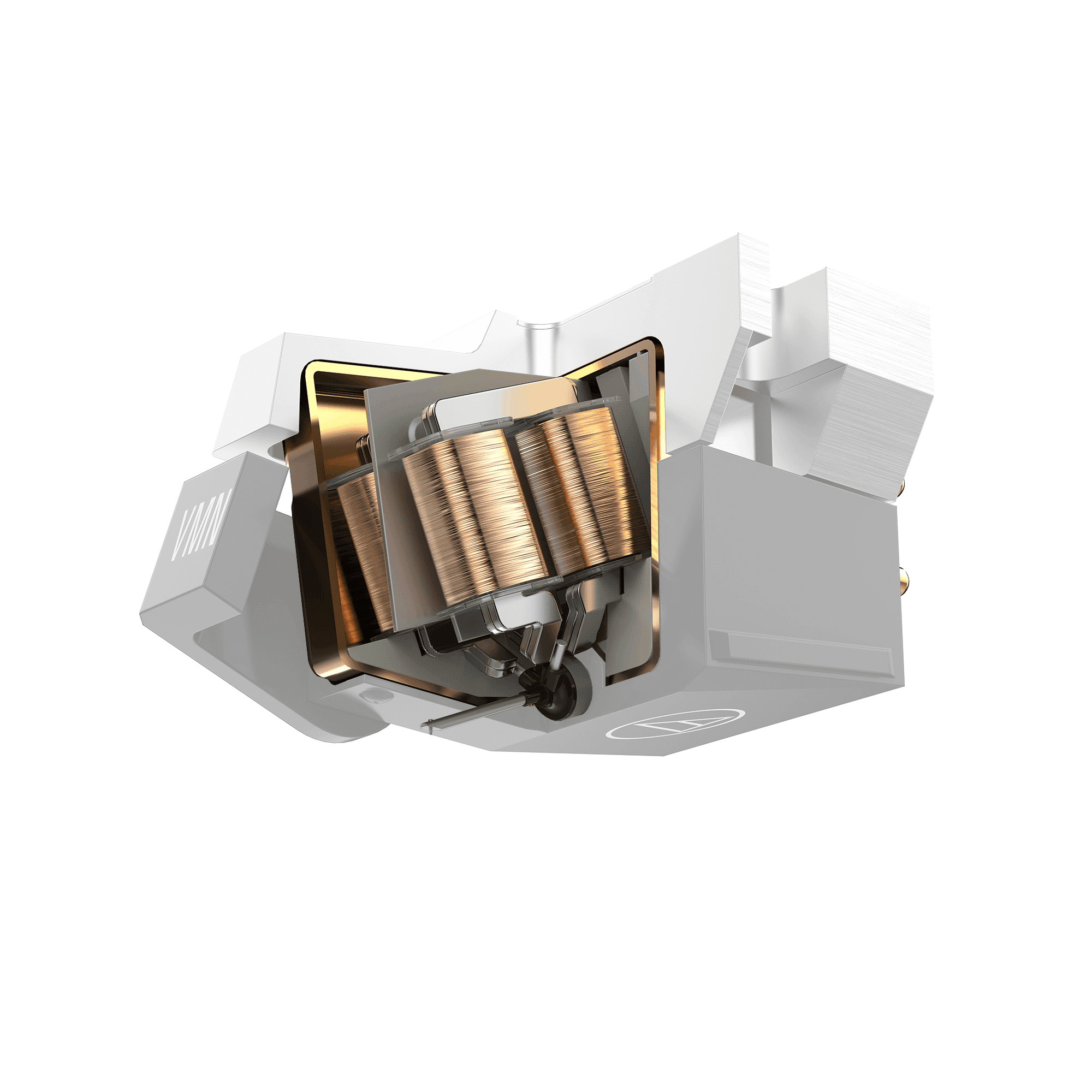

The VM750SH Shibata stylus cartridge is a premier 700 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM750SH is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s Shibata stylus provides greater surface contact with the record groove than an elliptical stylus does, resulting in the pickup of ultra-high frequencies with less groove stress and distortion. Includes mounting hardware.

Specifications

Frequency Response

20 - 27,000 Hz

Channel Separation

30 dB (1 kHz)

Vertical Tracking Angle

23 degrees

Vertical Tracking Force

1.8 to 2.2 g (standard 2.0 g)

Stylus Construction

Nude square shank

Recommended Load Impedance

47,000Ω

Coil Impedance

2,700Ω (1kHz)

DC Resistance

12 Ohms

Output Voltage

4.0mV (1kHz, 5cm/sec.)

Output Channel Balance

1.0dB (1kHz)

Stylus Shape

Shibata

Cantilever

Aluminium Tapered Pipe

Static Compliance

40 x 10-6 cm/dyne

Dynamic Compliance

10 x 10-6 cm/dyne (100Hz)

Mounting

1/2” centers / Threaded inserts

Frequency Response

20 - 27,000 Hz

Channel Separation

30 dB (1 kHz)

Vertical Tracking Angle

23 degrees

Vertical Tracking Force

1.8 to 2.2 g (standard 2.0 g)

Stylus Construction

Nude square shank

Recommended Load Impedance

47,000Ω

Coil Impedance

2,700Ω (1kHz)

DC Resistance

12 Ohms

Output Voltage

4.0mV (1kHz, 5cm/sec.)

Output Channel Balance

1.0dB (1kHz)

Stylus Shape

Shibata

Cantilever

Aluminium Tapered Pipe

Static Compliance

40 x 10-6 cm/dyne

Dynamic Compliance

10 x 10-6 cm/dyne (100Hz)

Mounting

1/2” centers / Threaded inserts
