New

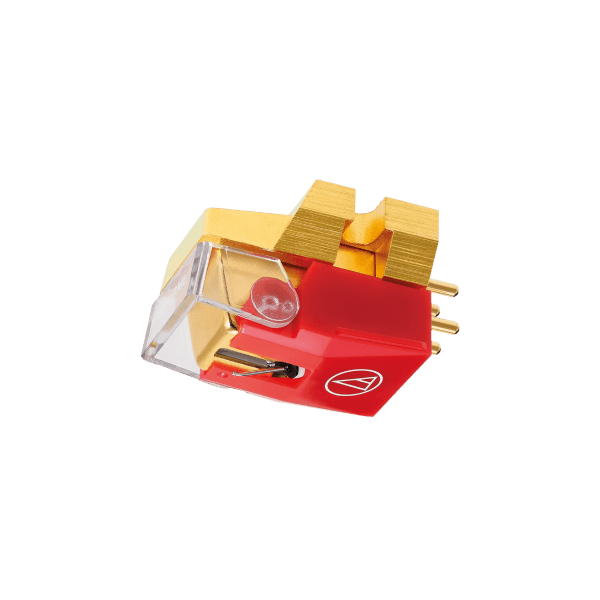

AT-VM740ML

Dual Moving Magnet Cartridge

$549.00

In-store demo

Not currently available

Stock availability

Available

Unavailable for demo

Unavailable for demo

Product details

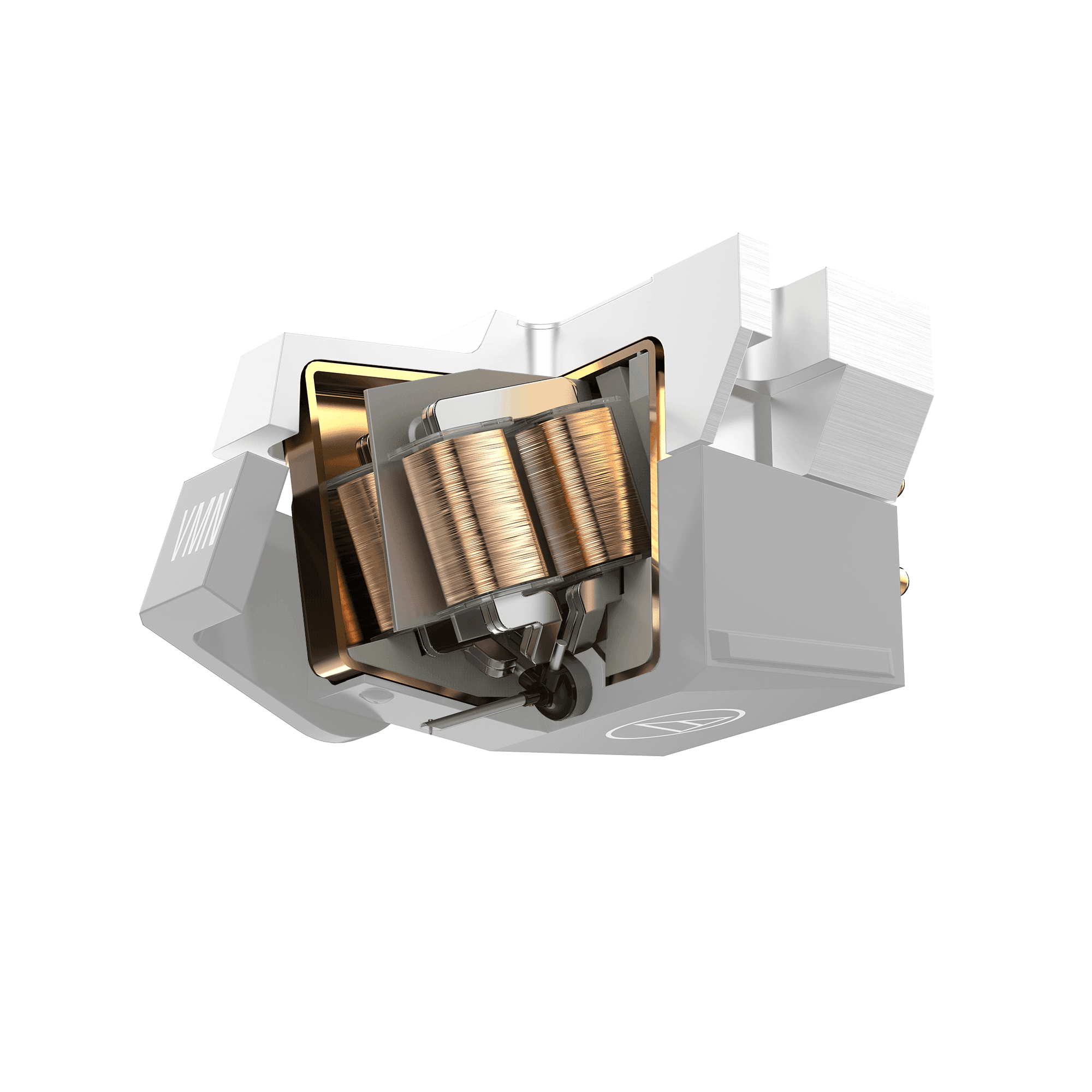

The VM740ML MicroLine® stylus cartridge is a premier 700 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM740ML is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s MicroLine® stylus allows it to trace the record groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can’t match. The stylus’s multilevel shape also wears better than other styli, while reducing the wear on your records. Includes mounting hardware.

Specifications

Frequency Response

20 - 27,000 Hz

Channel Separation

28dB (1 kHz)

Vertical Tracking Angle

23 degrees

Vertical Tracking Force

1.8 to 2.2 g (standard 2.0 g)

Stylus Construction

Nude square shank

Recommended Load Impedance

47,000Ω

Coil Impedance

2,700Ω (1kHz)

Output Voltage

4.0mV (1kHz, 5cm/sec.)

Output Channel Balance

1.0dB (1kHz)

Stylus Shape

Microlinear

Cantilever

Aluminium Tapered Pipe

Static Compliance

40 x 10-6 cm/dyne

Dynamic Compliance

10 x 10-6 cm/dyne (100Hz)

Mounting

1/2” centers / Threaded inserts
