New

AT-VM520xEB/H

Headshell/Cartridge Combo Kit

$249.00

In-store demo

Not currently available

Stock availability

Available

Unavailable for demo

Unavailable for demo

Product details

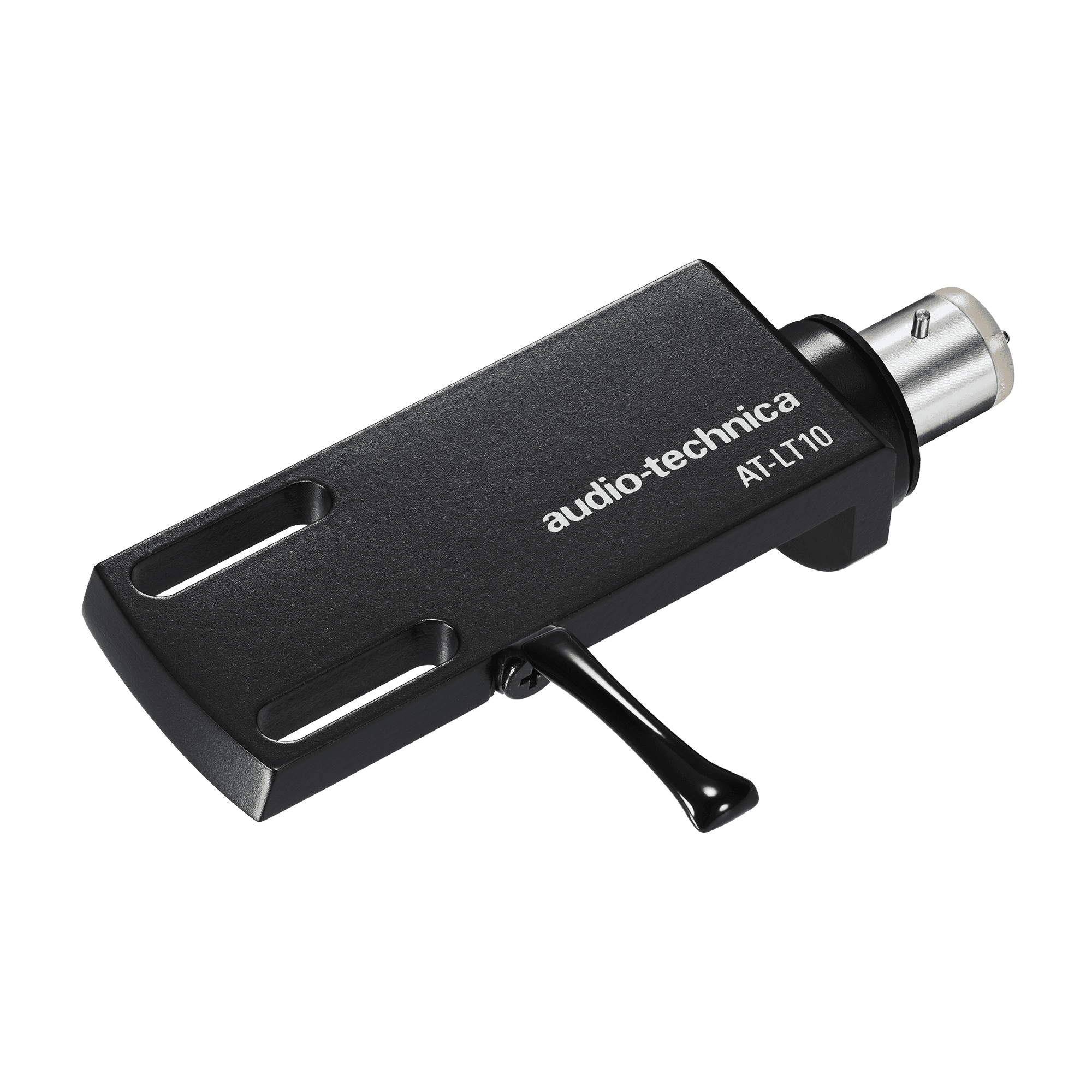

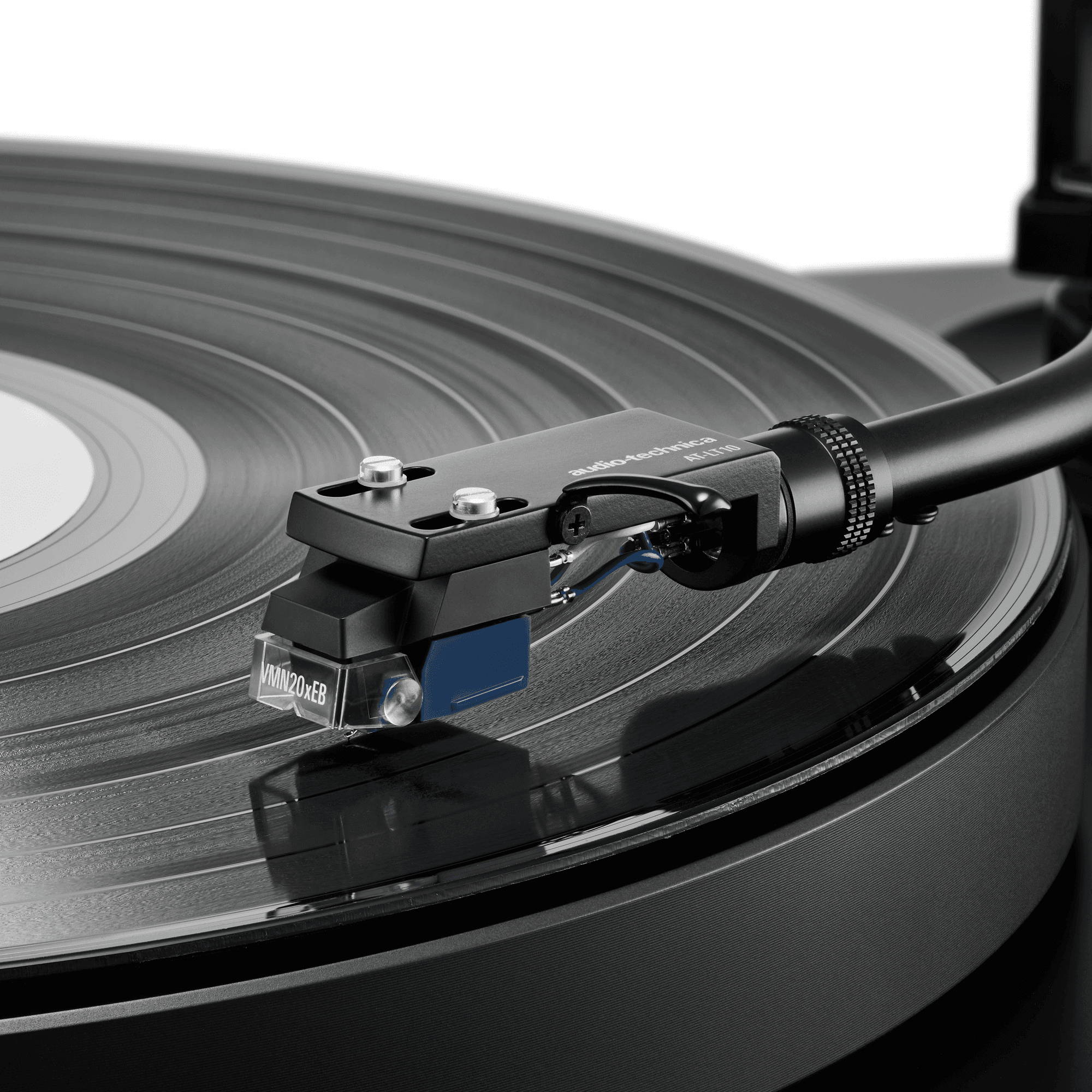

The AT-VM520xEB/H combo kit includes the AT-VM520xEB elliptical bonded dual moving magnet cartridge premounted on the AT-LT10 universal 1/2"-mount headshell. The AT-VM520xEB is part of the updated AT-VMx series, which introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.


Interchangeable Styli

Since all AT-VMx and VM Series cartridges share the same body design and have a removable stylus, you can use almost any AT-VMNx or VMN replacement stylus* with any VMx or VM cartridge for easy experimentation with sound characteristics.

AT-VMN10xCB (conical/bonded/aluminum cantilever)
AT-VMN20xEB (elliptical/bonded/aluminum cantilever)
AT-VMN30xEN (elliptical/nude/aluminum cantilever)
AT-VMN40xML (microlinear/nude/aluminum cantilever)
AT-VMN45xML (microlinear/nude/boron cantilever)
AT-VMN50xSH (Shibata/nude/boron cantilever)
AT-VMN60xSL (special line contact/nude/boron cantilever)

* Excludes mono models

Specifications

Frequency Response

20 - 23,000 Hz

Channel Separation

27 dB (1 kHz)

Vertical Tracking Angle

23 degrees

Vertical Tracking Force

1.8 to 2.2 g (standard 2.0 g)

Stylus Construction

Bonded round shank

Recommended Load Impedance

47,000Ω

Coil Impedance

2,700Ω (1kHz)

Coil Inductance

25 μH (1 kHz)

Output Voltage

4.0mV (1kHz, 5cm/sec.)

Output Channel Balance

1.5 dB (1 kHz)

Stylus Shape

Elliptical bonded

Cantilever

Aluminium pipe

Static Compliance

35 x 10 – 6 cm / dyne

Dynamic Compliance

8 x 10 – 6 cm / dyne (100 Hz)

Mounting

1/2” centers / Threaded inserts

Frequency Response

20 - 23,000 Hz

Channel Separation

27 dB (1 kHz)

Vertical Tracking Angle

23 degrees

Vertical Tracking Force

1.8 to 2.2 g (standard 2.0 g)

Stylus Construction

Bonded round shank

Recommended Load Impedance

47,000Ω

Coil Impedance

2,700Ω (1kHz)

Coil Inductance

25 μH (1 kHz)

Output Voltage

4.0mV (1kHz, 5cm/sec.)

Output Channel Balance

1.5 dB (1 kHz)

Stylus Shape

Elliptical bonded

Cantilever

Aluminium pipe

Static Compliance

35 x 10 – 6 cm / dyne

Dynamic Compliance

8 x 10 – 6 cm / dyne (100 Hz)

Mounting

1/2” centers / Threaded inserts
