New

AT-VM520EB

Dual moving magnet cartridge

$229.00

In-store demo

Not currently available

Stock availability

Available

Unavailable for demo

Unavailable for demo

Product details

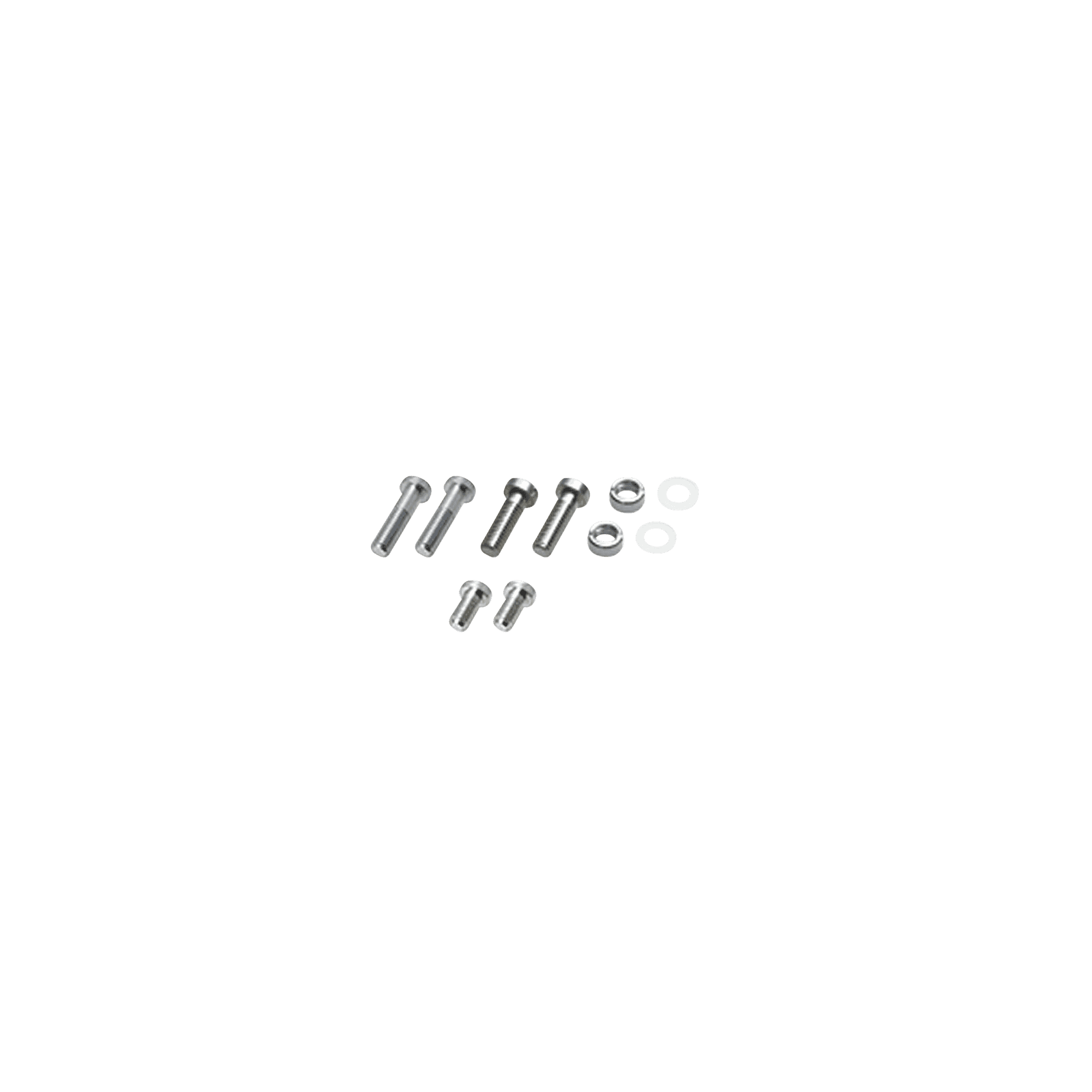

The VM520EB is part of the 500 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM520EB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Includes mounting hardware.

Specifications

Frequency Response

20 - 23,000 Hz

Channel Separation

27 dB (1 kHz)

Vertical Tracking Angle

23 degrees

Vertical Tracking Force

1.8 to 2.2 g (standard 2.0 g)

Stylus Construction

Bonded round shank

Recommended Load Impedance

47,000Ω

Coil Impedance

2,700Ω (1kHz)

Coil Inductance

25 μH (1 kHz)

Output Voltage

4.0mV (1kHz, 5cm/sec.)

Output Channel Balance

1.5 dB (1 kHz)

Stylus Shape

Elliptical bonded

Cantilever

Aluminium pipe

Static Compliance

35 x 10 – 6 cm / dyne

Dynamic Compliance

8 x 10 – 6 cm / dyne (100 Hz)

Mounting

1/2” centers / Threaded inserts
