Product details

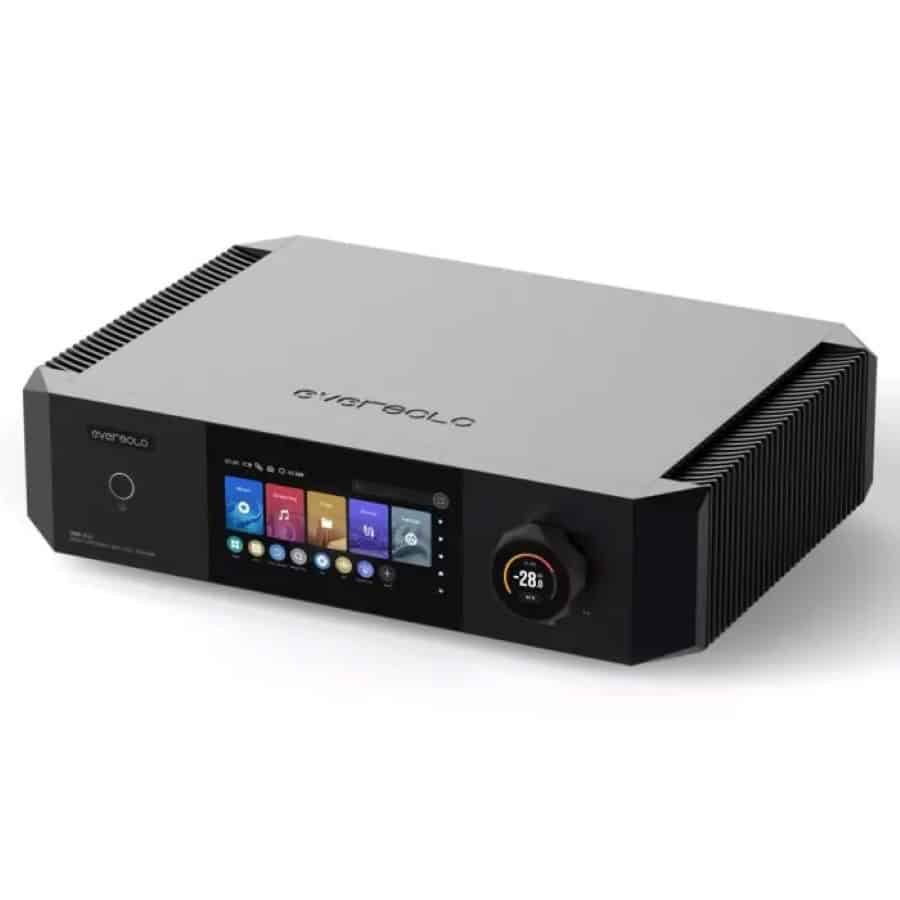

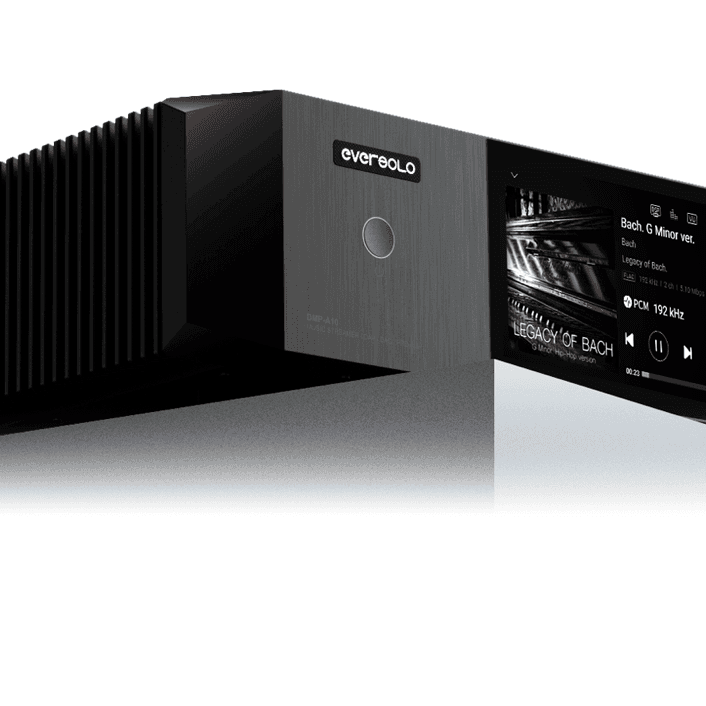

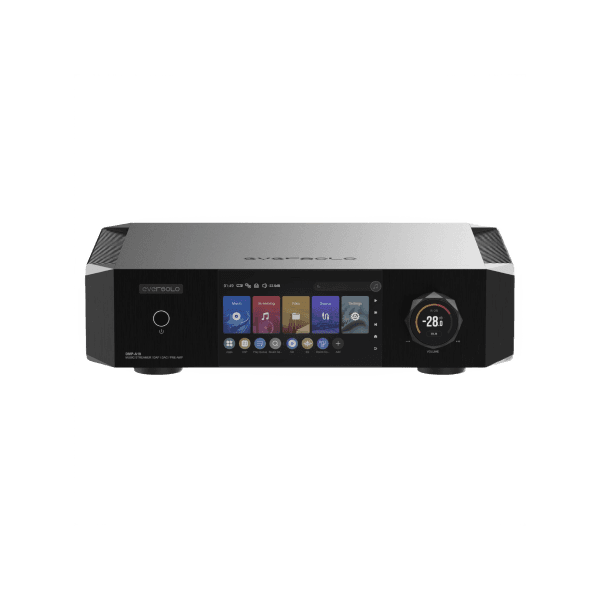

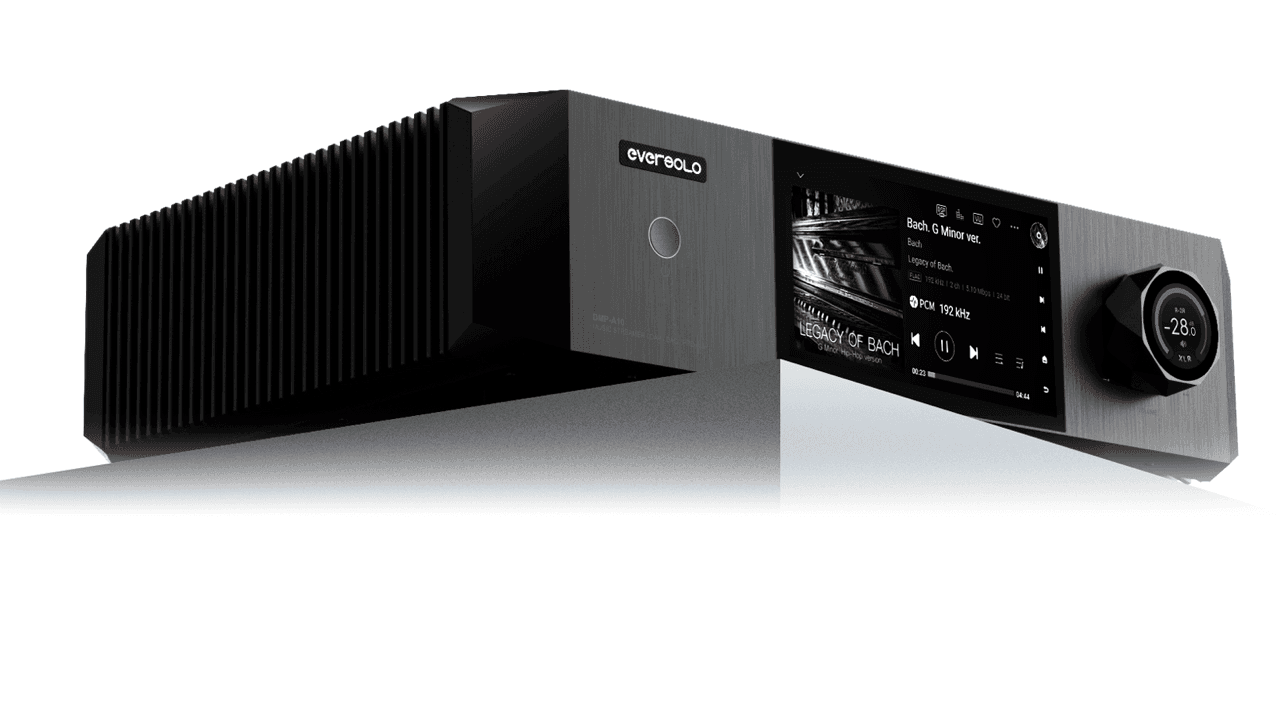

Eversolo DMP-A10 combines a network music streamer, DAC and balanced analogue preamplifier in a full-width aluminium chassis. A 6.5-inch touchscreen, Eversolo Control app and supplied remote provide access to streaming services, local libraries and connected source components.
Conversion, clocking and volume control

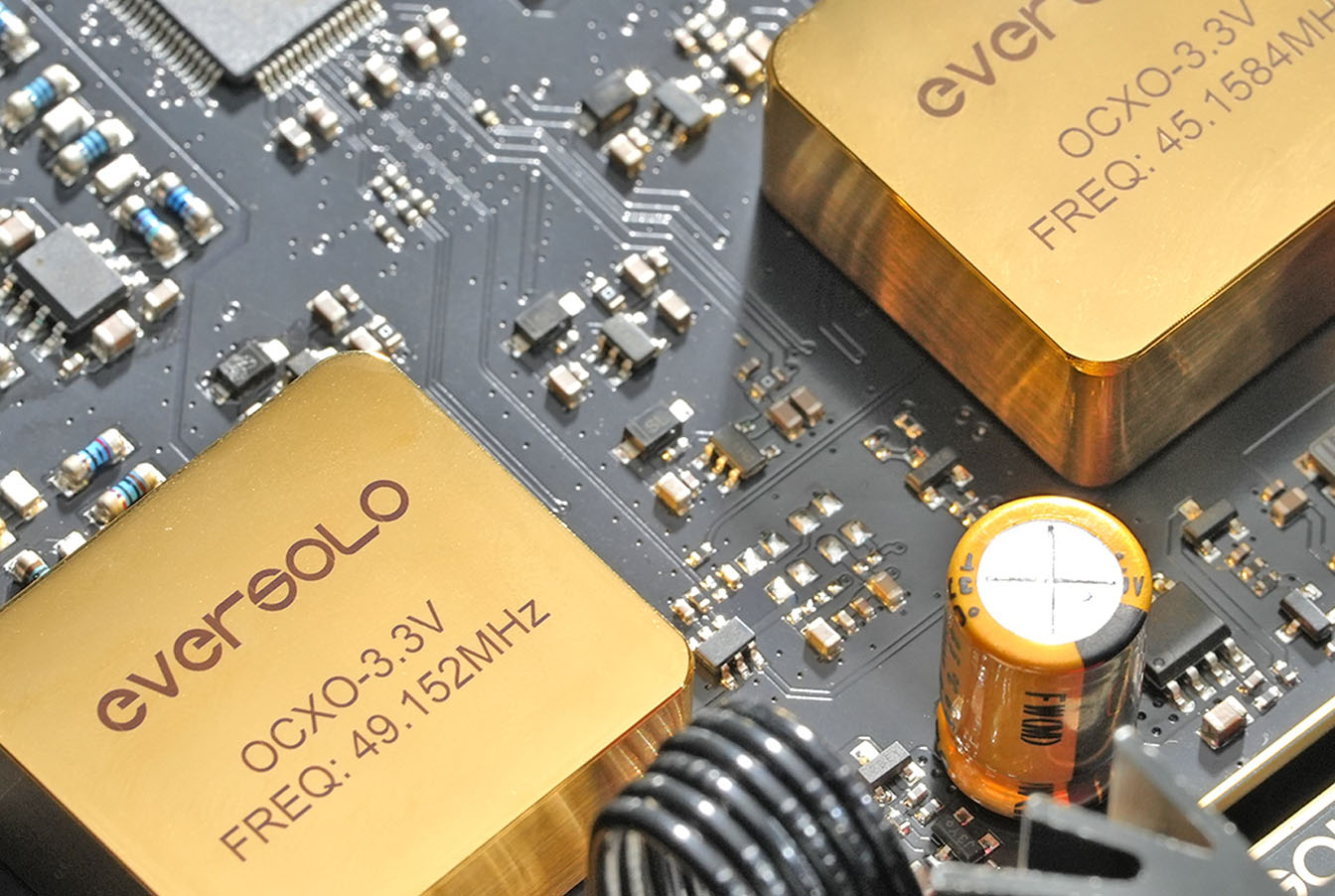

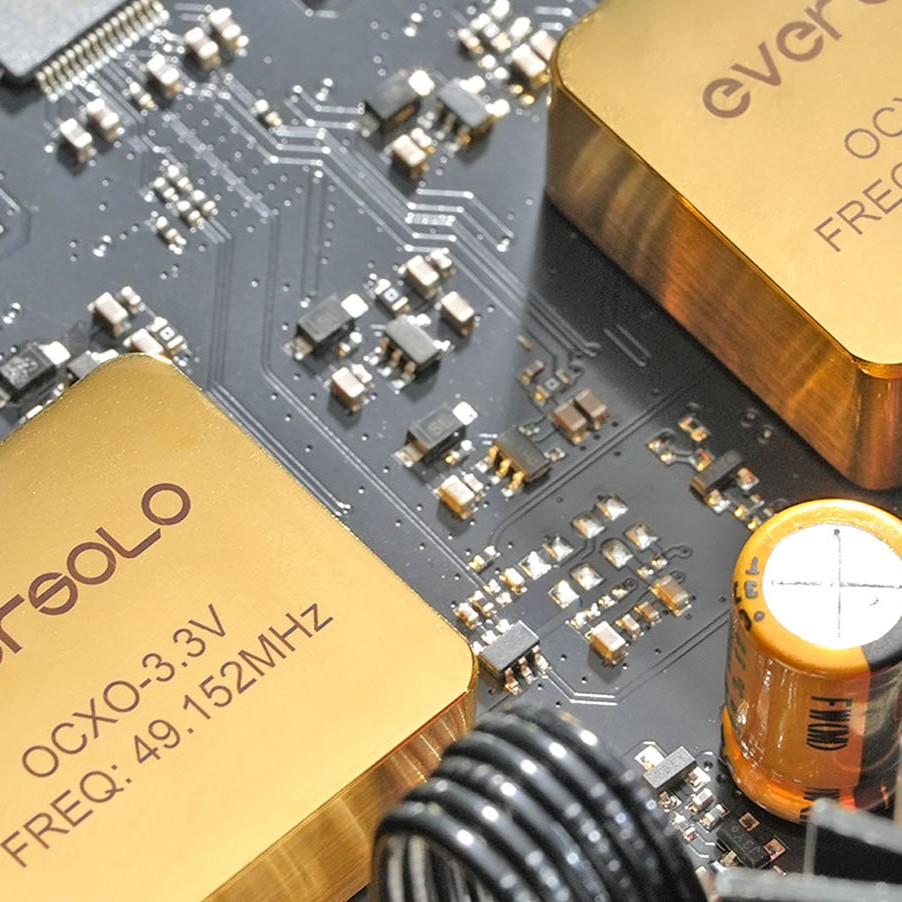

An ESS ES9039PRO DAC works with an XMOS XU316 audio processor and OPA1612 operational amplifiers. Dual linear power supplies serve the analogue and digital sections, while the OCXO clock system controls timing. A resistor-and-relay volume network adjusts level in the balanced analogue preamplifier, which accepts one XLR and two RCA source inputs.
Network storage and system connections

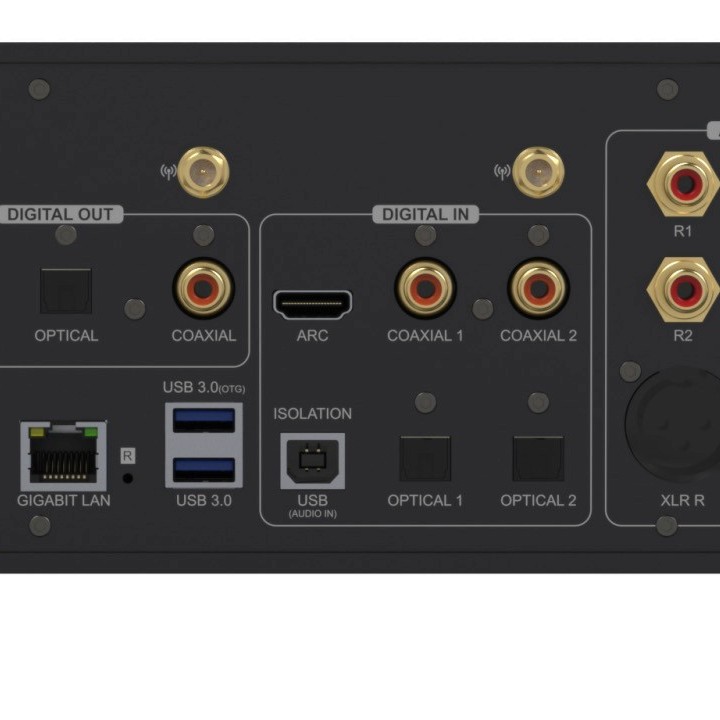

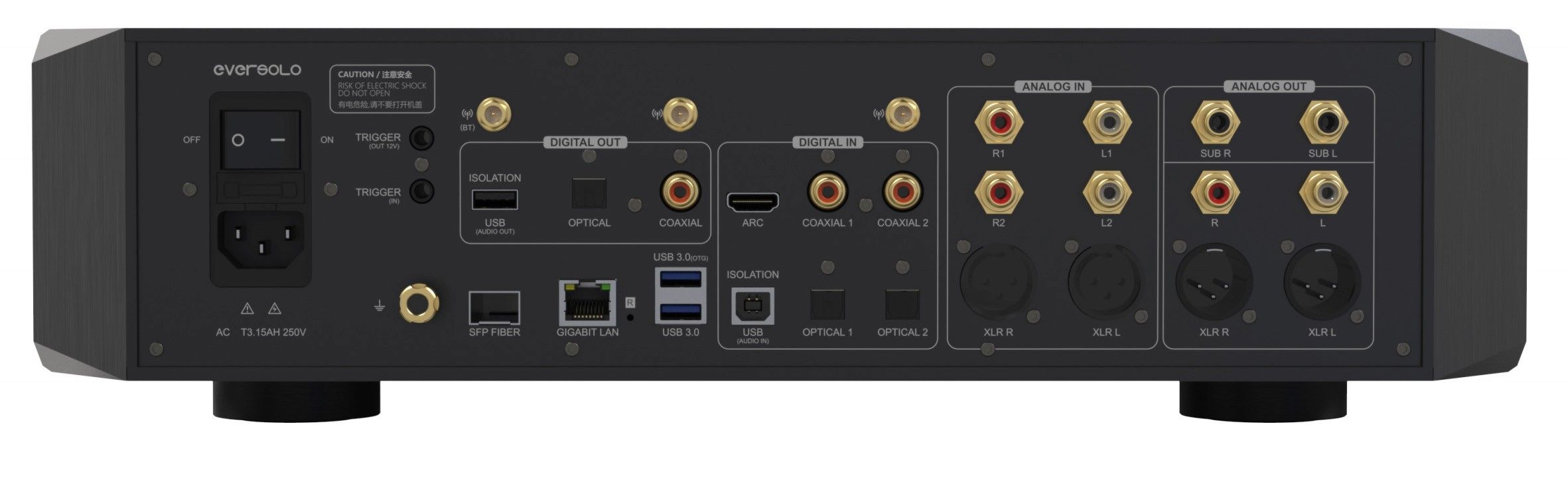

Gigabit Ethernet, dual-band Wi-Fi and an SFP fibre-network connection offer network options; the SFP module is separate. Two M.2 NVMe slots accept optional internal SSDs. Isolated USB audio connections support PCM up to 768 kHz/32-bit and native DSD512, with separate limits for HDMI ARC and S/PDIF. XLR/RCA outputs feed a suitable power amplifier or active speakers, and two subwoofer outputs provide stereo or mixed operation. Room correction and parametric EQ support room adjustment.
