Product details
The Eversolo AMP-F10 is a stereo Class AB power amplifier with Class A bias and a bridged-mono operating mode. It supplies 200 watts RMS per channel into eight ohms or 320 watts into four ohms, with higher output available in the specified bridged configuration.
Amplifier and power supply

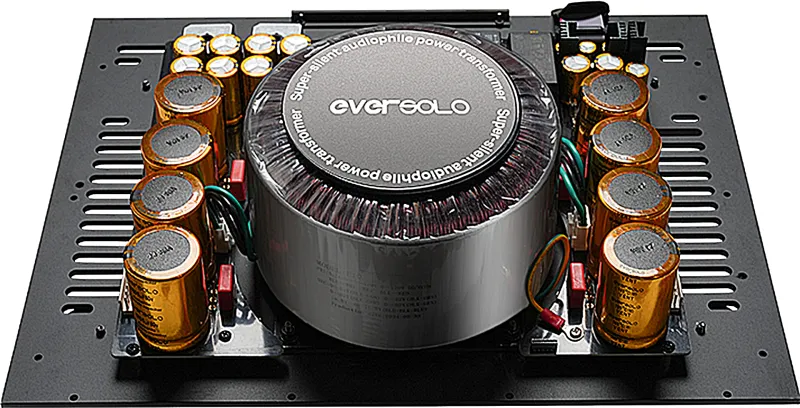

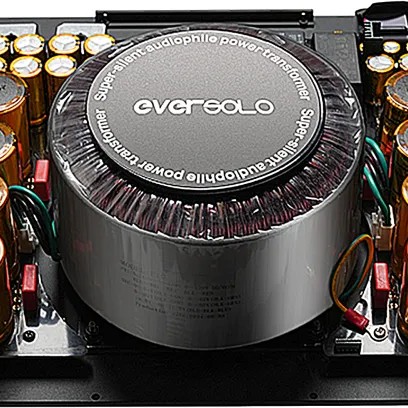

Its symmetrical circuit uses dual differential amplification and five pairs of precision-matched MOSFETs per channel. A toroidal transformer and independent channel power-supply paths provide the power stage supply, with DC filtering at the mains input. Front meters display amplifier output activity.

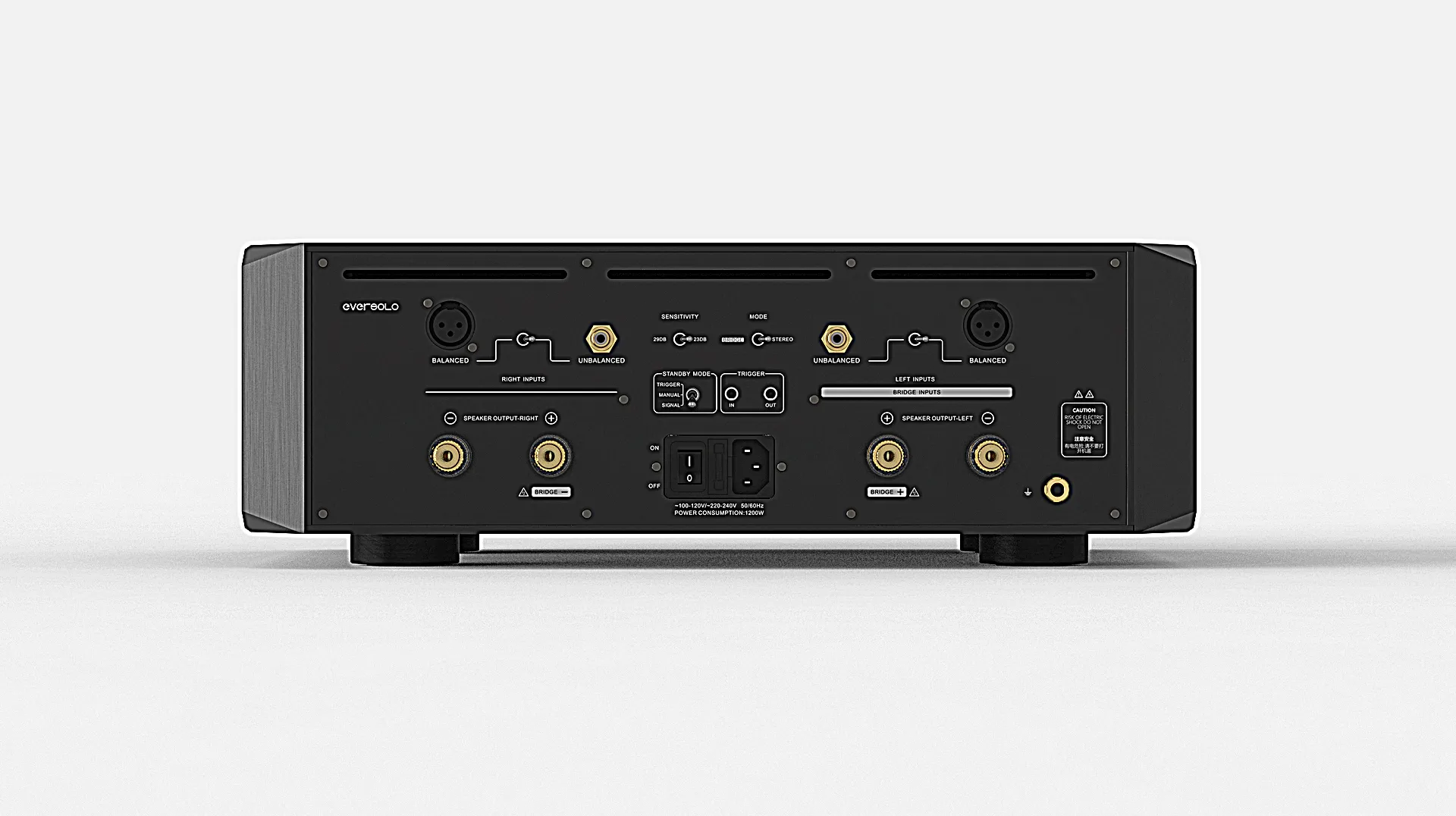

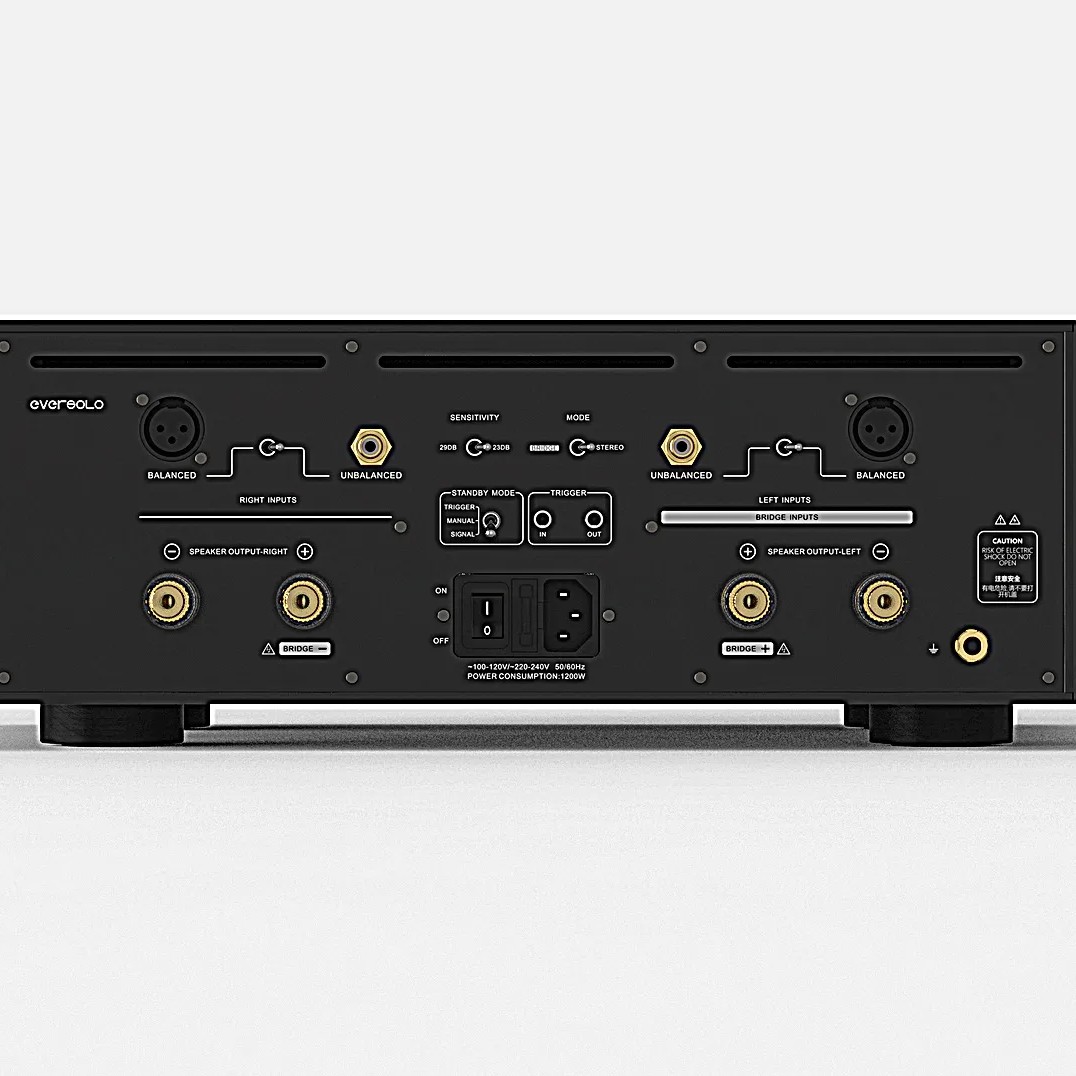

Connections and operating modes
Balanced XLR and unbalanced RCA inputs accept a preamplifier or variable-output source. Rear controls select the input, gain and stereo or bridged operation, while a trigger connection supports coordinated power control. Bridged ratings are 650 watts into eight ohms or 950 watts into four ohms; the manual’s wiring and load instructions apply when changing modes. Protection monitors overcurrent, overheating and short-circuit conditions. The Black chassis measures 430 mm wide and 147 mm high including its feet, with an eighteen-kilogram net weight. Mains and trigger cables are included.
