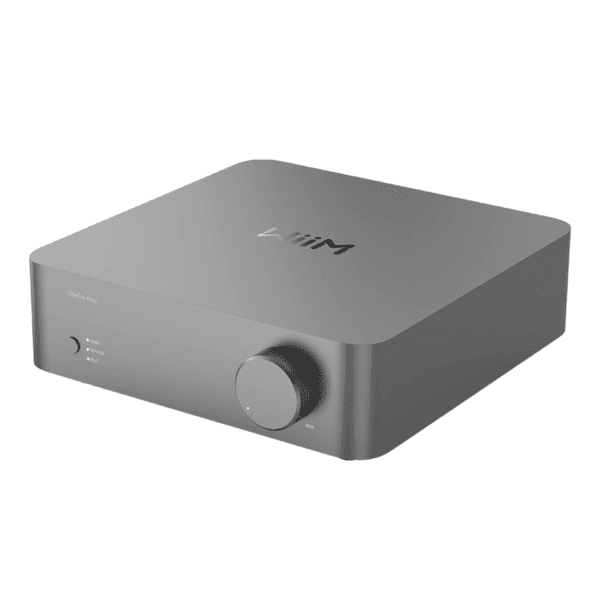

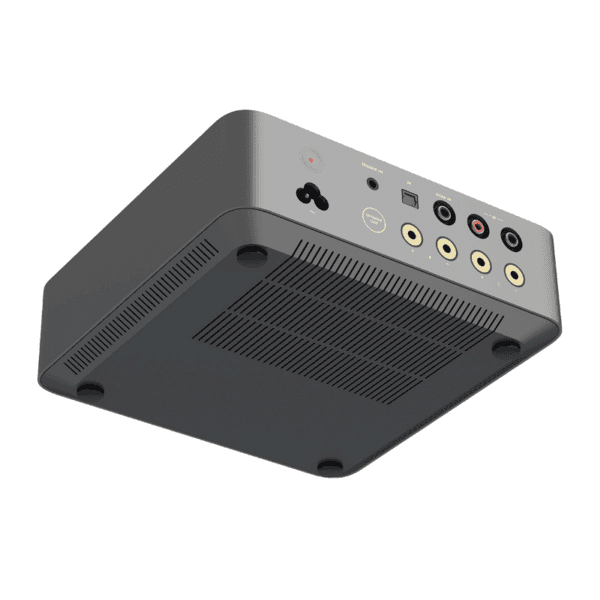

Product view 1
Product view 2
Product view 3
Product view 4
Product view 5
Product view 6
Product view 7
Product view 8
Promo
By WiiM

Vibelink Amp

Stereo amplifier

Now $399.00Was $499.00

Model

In-store demo

Not currently available

Stock availability

Available

  • 100 W/channel through digital inputs

    Into 8 Ω; 200 W/channel into 4 Ω. RCA ratings differ.

  • Class D with Post-Filter Feedback

    TI TPA3255 amplification with ESS digital conversion.

  • Pure analogue RCA path

    Optical and coaxial inputs accept 24-bit/192 kHz PCM.

  • Compact aluminium enclosure

    Copper heat pipe, heatsink and automatic standby.

Product details

The WiiM Vibelink Amp is a compact stereo integrated amplifier for analogue and digital sources. A TI TPA3255 Class D output stage uses Post-Filter Feedback, with an ESS ES9039Q2M DAC handling digital conversion. The RCA input follows a pure analogue path without an ADC stage.

Inputs and source-dependent power

Optical and coaxial inputs accept two-channel PCM up to 192 kilohertz at 24 bits. WiiM’s current manual rates digital-input output at 100 watts per channel into eight ohms or 200 watts into four ohms. Through RCA, the stated figures are 60 and 120 watts per channel respectively. A separate streamer can be connected as a source; network music streaming is not built into the amplifier.

Controls and thermal design

The aluminium enclosure uses a copper heat pipe and a substantial heatsink to manage operating temperature. Front-panel source selection, status lights and a volume knob provide direct control. A 12-volt trigger input supports coordinated switching with compatible equipment, and automatic standby engages after thirty minutes without activity. The Space Grey chassis measures 200 mm square and weighs 2.05 kilograms.

Specifications

Type
Stereo integrated amplifier with digital and analogue inputs
Amplifier
TI TPA3255 Class D; Post-Filter Feedback
DAC
ESS ES9039Q2M
Digital-input rated power
100 W/channel at 8 Ω; 200 W/channel at 4 Ω
RCA-input rated power
60 W/channel at 8 Ω; 120 W/channel at 4 Ω
Digital inputs
Optical; coaxial; stereo PCM up to 24-bit/192 kHz
Analogue input
Stereo RCA; no ADC conversion
Speaker connection
Four binding posts; banana plugs or bare wire
Built-in network streamer
None; external source required
Controls
Volume knob; input selection; power
Trigger
12 V input; 3.5 mm
Auto standby
30 minutes of inactivity
Thermal management
Copper heat pipe; aluminium heatsink
Supply
100–240 V AC; 50/60 Hz
Finish
Space Grey

Dimensions

Dimensions (W × H × D)
200 × 63 × 200 mm
Net weight
2.05 kg
