By WiiM

Amp Ultra

Streaming amplifier

Now $849.00Was $999.00

Finish — Space Gray

Model

In-store demo

Not currently available

Stock availability

Available

  • 100 W per channel into 8 Ω

    200 W/channel into 4 Ω with Class D post-filter feedback.

  • Bluetooth 5.3 both ways

    Wireless reception and compatible headphone/speaker transmission.

  • Touchscreen and HDMI ARC

    3.5-inch display with stereo PCM and Dolby Digital TV audio.

  • RoomFit and source-specific EQ

    Room calibration, parametric EQ and subwoofer integration.

Product details

The WiiM Amp Ultra combines network streaming, a stereo power amplifier and a 3.5-inch colour touchscreen. Its Class D amplifier uses dual TI TPA3255 chips with post-filter feedback and supplies 100 watts per channel into eight ohms or 200 watts into four ohms at the manufacturer’s stated test condition.

Sources and room adjustment

An ESS ES9039Q2M DAC handles playback, with HDMI ARC, optical and RCA line inputs for television and other sources. HDMI and optical accept stereo PCM or Dolby Digital, with DTS requiring conversion at the source. RoomFit calibration, ten-band graphic and parametric EQ and source-specific settings help match sound to the speakers and room.

Network playback and control

Google Cast, Alexa Cast, Spotify Connect, Tidal Connect, Qobuz Connect and Roon Ready provide several playback routes. Two-way Bluetooth 5.3 connects wireless sources or compatible headphones and speakers. USB supports local storage and compatible digital audio output, while a dedicated RCA subwoofer output accommodates a powered subwoofer. The touchscreen, rotary control, WiiM Home app and Voice Remote 2 provide daily control. Space Gray and Silver finishes share the same 2.45-kilogram aluminium enclosure.

Specifications

Type
Network streaming stereo amplifier
Rated stereo power
100 W/channel into 8 Ω; 200 W/channel into 4 Ω; THD 0.08%, 2 channels driven
Amplifier
Class D; dual TI TPA3255; post-filter feedback
DAC / op-amps
ESS ES9039Q2M; TI OPA1612
Display
3.5-inch colour touchscreen
Playback resolution
Up to 24-bit/192 kHz; supported sources/formats

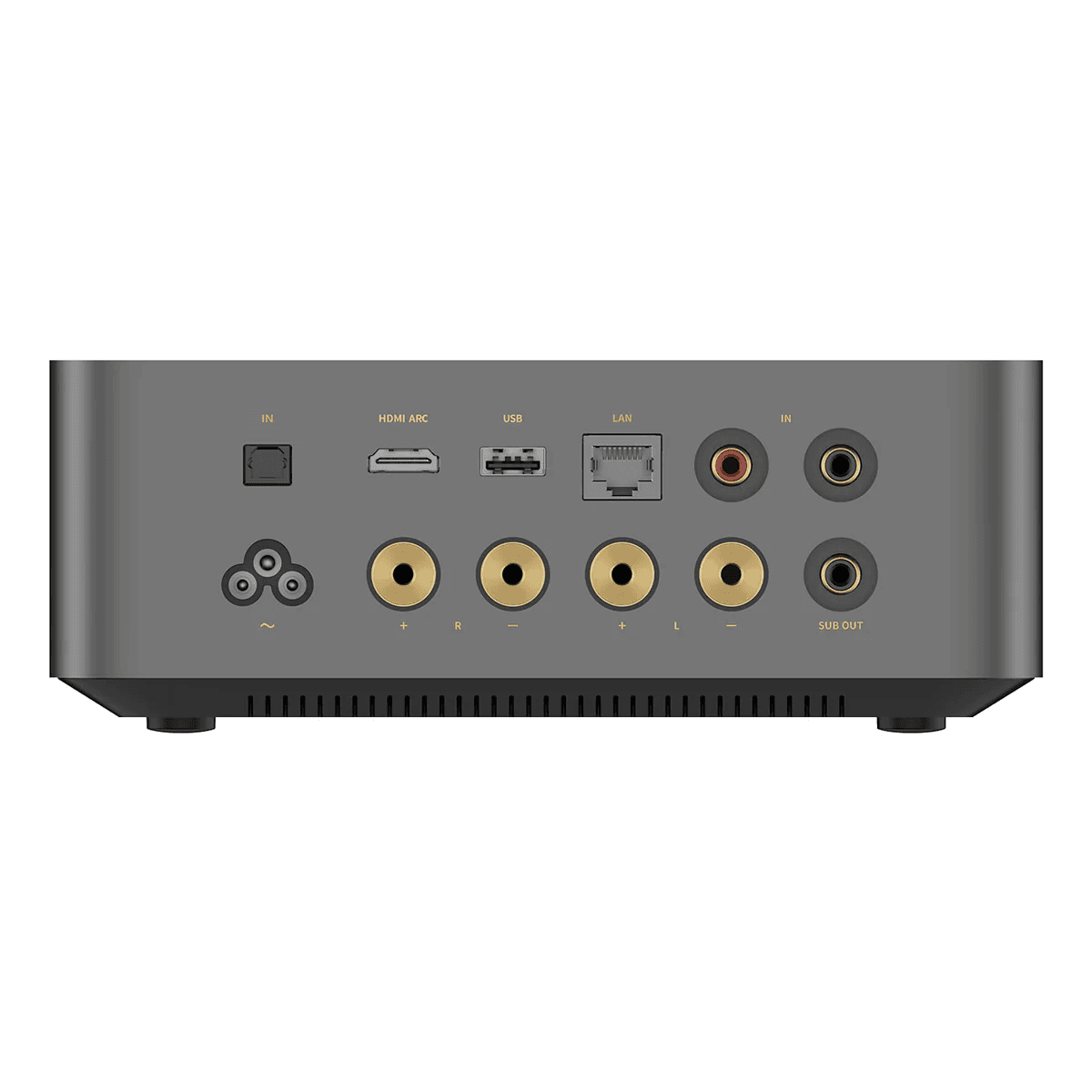

Inputs
HDMI ARC; optical; stereo RCA line; network; Bluetooth
HDMI / optical formats
Stereo PCM; Dolby Digital; no DTS decoding
Analogue input
2 Vrms; ADC up to 24-bit/192 kHz
Speaker outputs
Gold-plated binding posts
Subwoofer output
Mono RCA; 2 Vrms; adjustable bass management
USB
Storage playback and compatible UAC2.0 audio output
Network
Wi-Fi; 10/100 Ethernet
Bluetooth
5.3; transmit and receive
Streaming
Google Cast; Alexa Cast; Spotify Connect; Tidal Connect; Qobuz Connect; Roon Ready; DLNA
Room adjustment
RoomFit; 10-band graphic and parametric EQ; per-source EQ
Apple integration
No AirPlay 2
Control
Touchscreen; rotary control; WiiM Home; Voice Remote 2
Power input
100–240 V AC; 50/60 Hz
Finishes
Space Gray; Silver

Dimensions

Manufacturer dimensions (W × D × H)
200 × 211 × 76.2 mm
Net weight
2.45 kg
