By Focal

Sub12

Subwoofer

$5,599.00

In-store demo

Not currently available

Stock availability

Available

  • 13-inch W-cone driver

    High-excursion composite sandwich bass transducer.

  • 600 W RMS amplification

    Manufacturer specifies 1,000 W peak separately.

  • Studio bass management

    Stereo/LFE connections with satellite high-pass filtering.

  • Footswitch bypass control

    Single or linked-unit operation with an external switch.

Product details

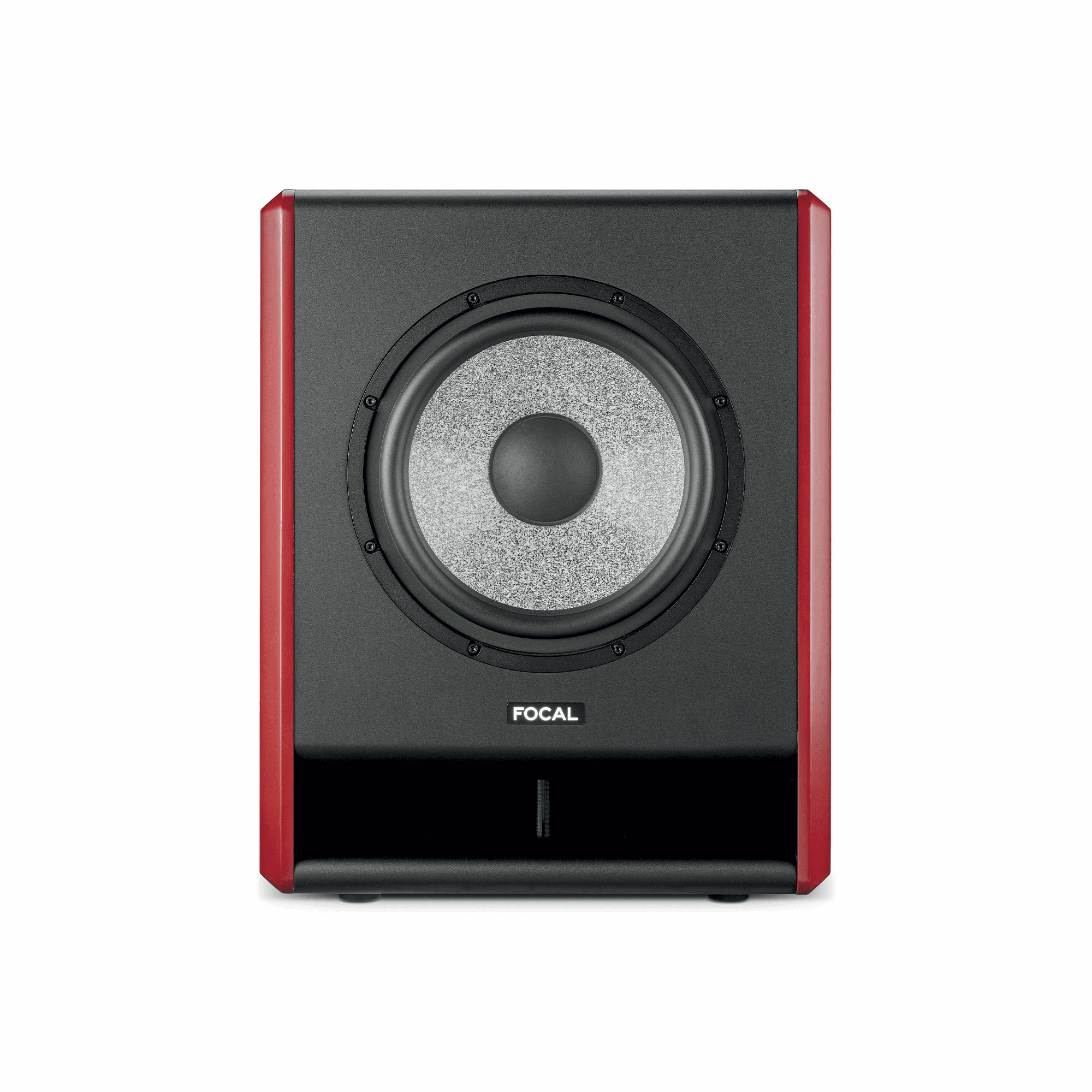

The Focal Sub12 is an active studio subwoofer with a 13-inch W-composite driver and 600 watts RMS of amplification. Its high-excursion bass system is designed to extend compatible monitoring systems, including Focal’s ST6 monitors.

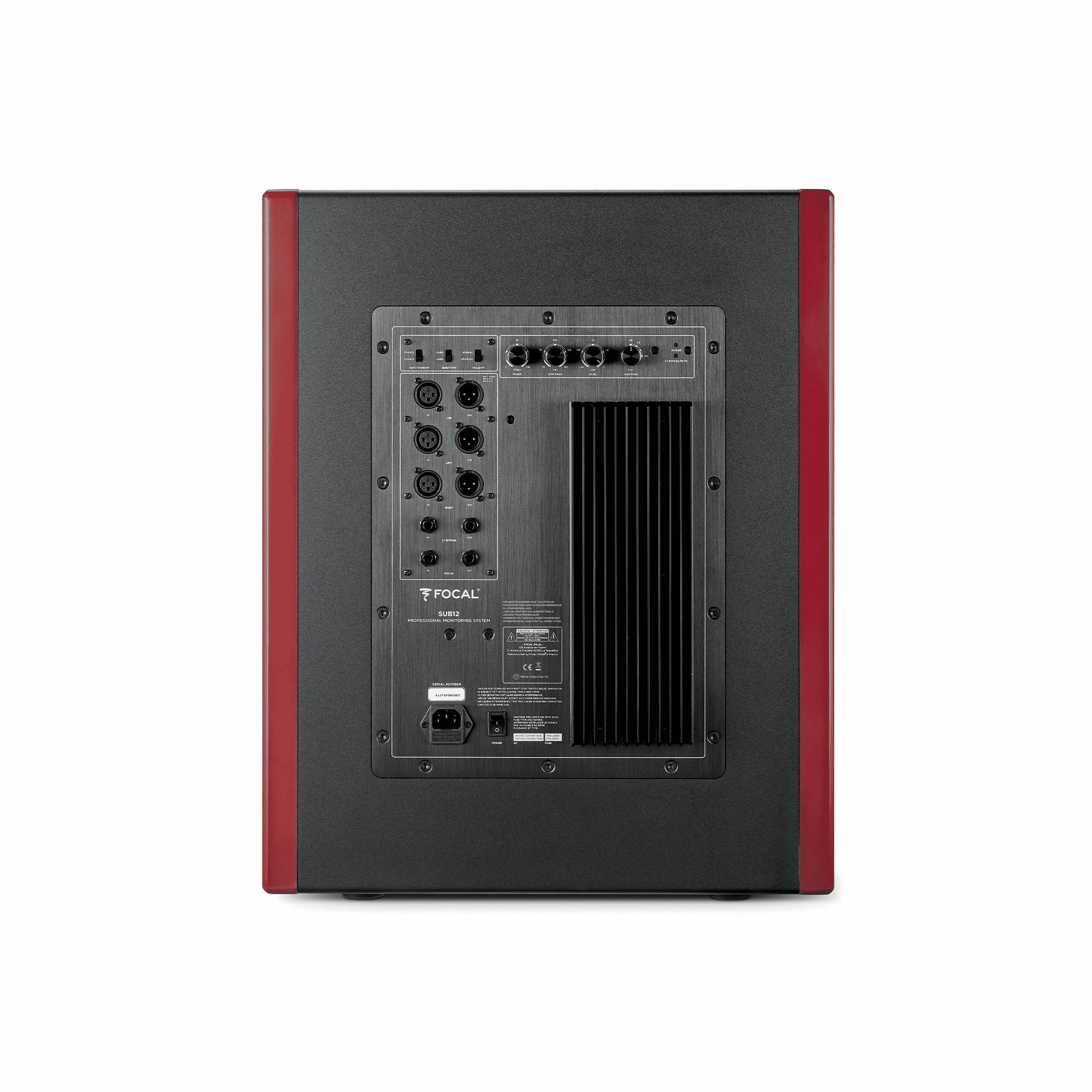

Bass management and connections

Balanced left, right and LFE inputs accommodate stereo monitoring or a dedicated effects feed. Left/right satellite outputs and a parallel LFE output support system integration. Variable low-pass, phase, polarity and sensitivity controls help match the subwoofer to the room and monitors, with selectable high-pass filtering for satellite outputs.

Cabinet and studio workflow

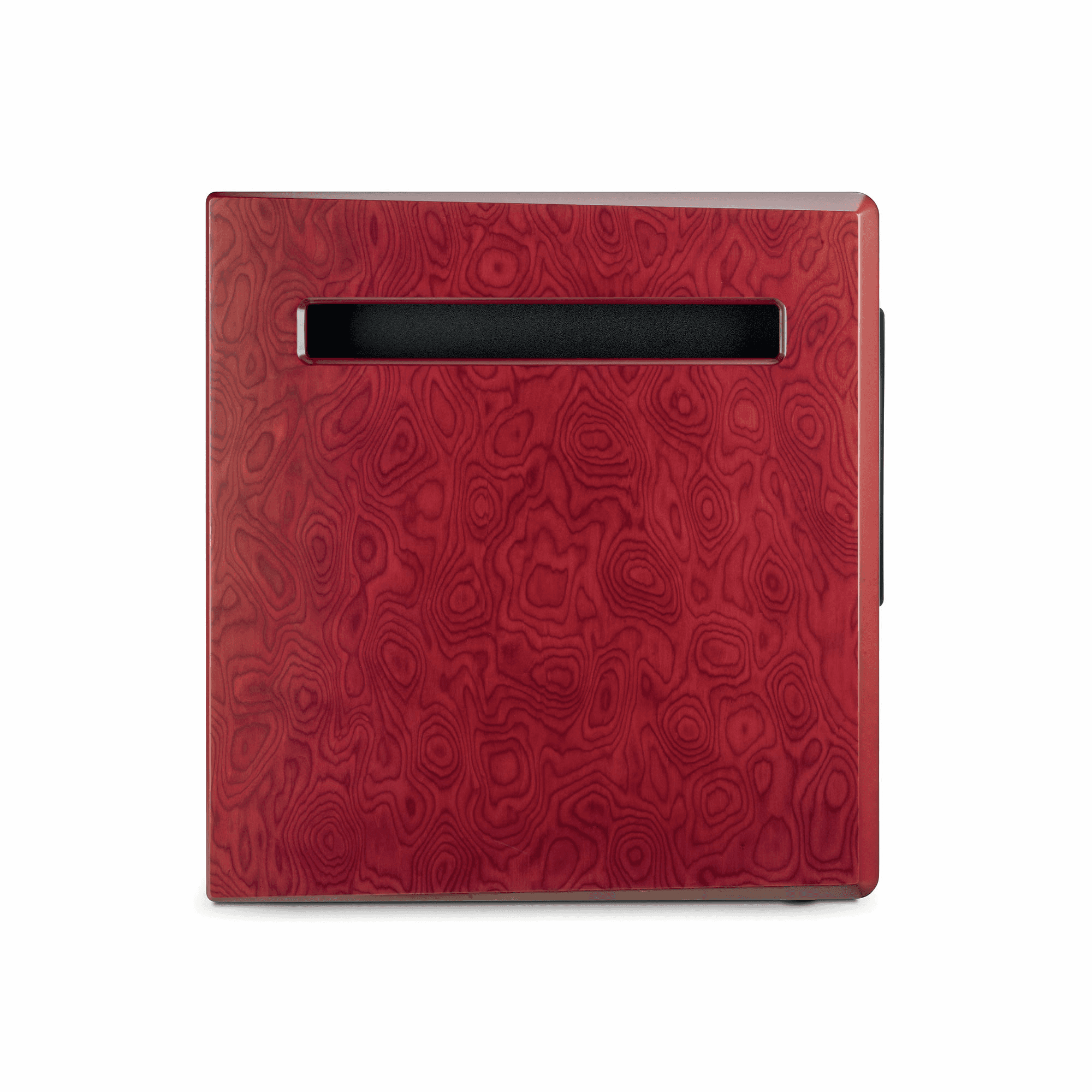

A large front laminar port and reinforced cabinet address airflow and enclosure behaviour. Footswitch input/output permits bypass control of one unit or linked units using a suitable external switch. Automatic standby can be disabled for studio operation. Dark red natural-veneer side panels contrast with the Black cabinet, and integrated handles assist moving the substantial enclosure.

Specifications

Type
Active professional studio subwoofer
Driver
13-inch / 33 cm W composite sandwich cone
Amplification
600 W RMS; manufacturer 1,000 W peak rating
Frequency response
28 Hz–400 Hz, −3 dB
Inputs
Balanced XLR left, right and LFE; 10 kΩ
Outputs
Balanced XLR left/right satellite; parallel LFE
Satellite output impedance
50 Ω
Input processing
Left/right mono summation; LFE plus mono low-pass
Low-pass slope
24 dB/octave
Satellite high-pass
Switchable; selectable cutoff; 24 dB/octave
Controls
Level; sensitivity; phase; polarity; low-pass; high-pass
Footswitch control
Bypass input/output for single or linked units
Auto standby
Switchable
Cabinet
Reinforced enclosure; front laminar port; carry handles
Finish
Dark red natural-veneer sides; Black body

Dimensions

Dimensions (W × H × D)
487 × 600 × 568 mm
Weight
58 kg
