W-cone and beryllium drivers
16.5 cm bass/midrange with a pure-beryllium tweeter.
25–150 W amplifier range
Passive eight-ohm nominal speaker.
Adjustable tweeter
Positioning and three treble-level settings.
Paintable magnetic grille
Closed-back in-wall construction with optional mounting accessories.
Product details

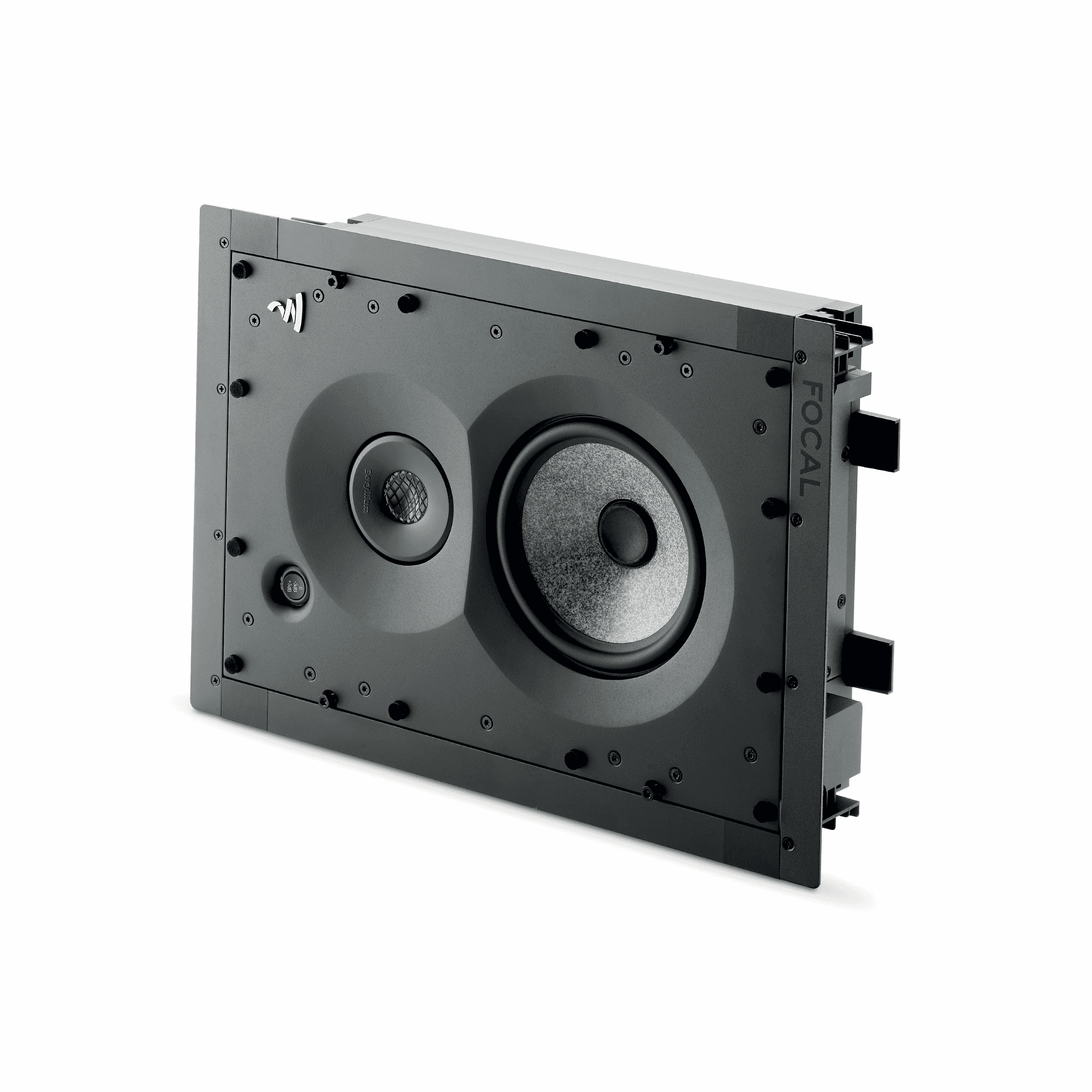

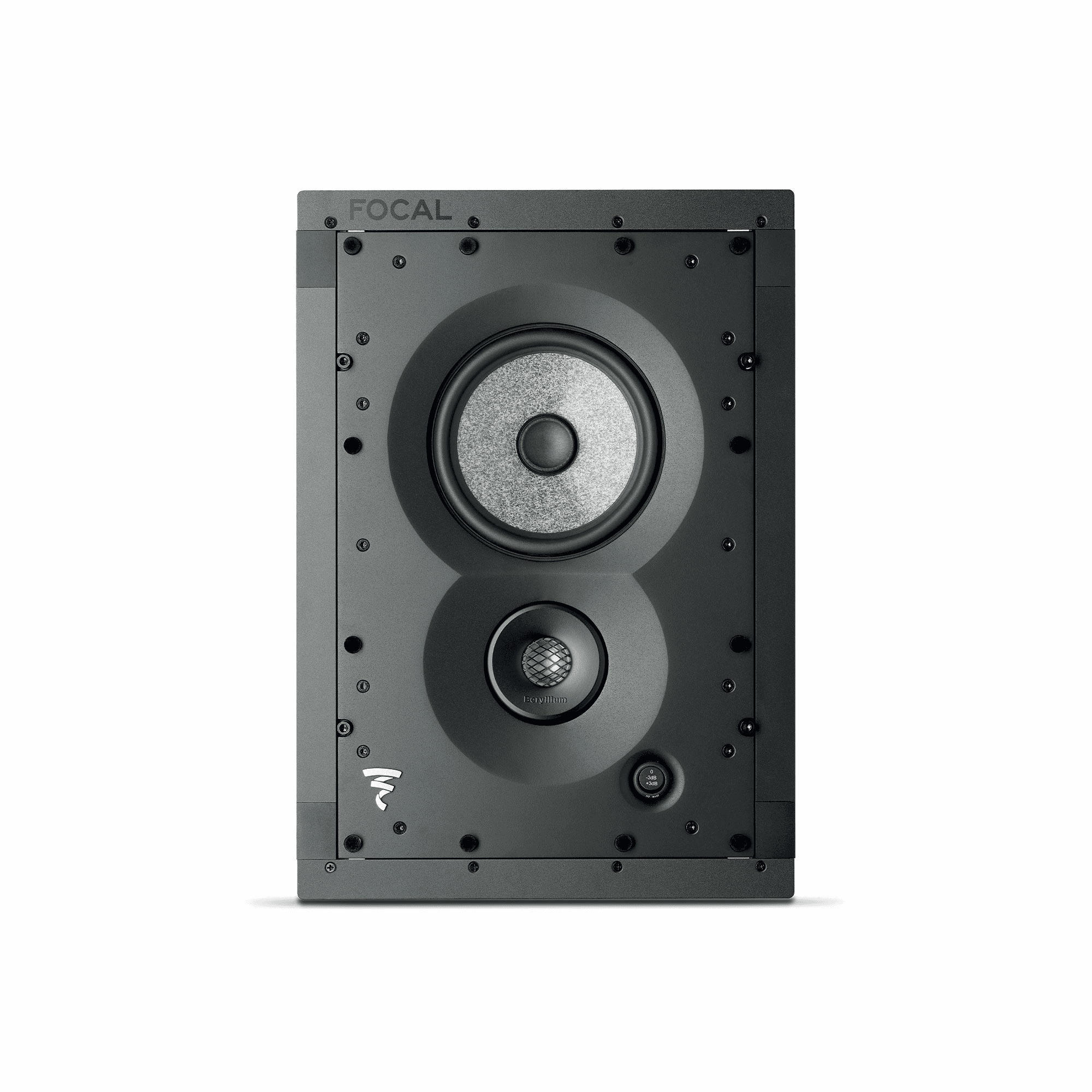

The Focal 1000 IW6 is a two-way closed-back in-wall loudspeaker for integrated stereo and home-cinema systems. A 16.5 cm W-composite bass/midrange driver works with a pure-beryllium inverted-dome tweeter, with both drivers developed and manufactured in France.
Enclosed construction and adjustment
The MDF and aluminium enclosure provides a defined acoustic volume within the wall. A positionable tweeter and selectable treble level help adapt its presentation to the listening position and room. The passive design has an eight-ohm nominal impedance and a recommended amplifier range of 25 to 150 watts.

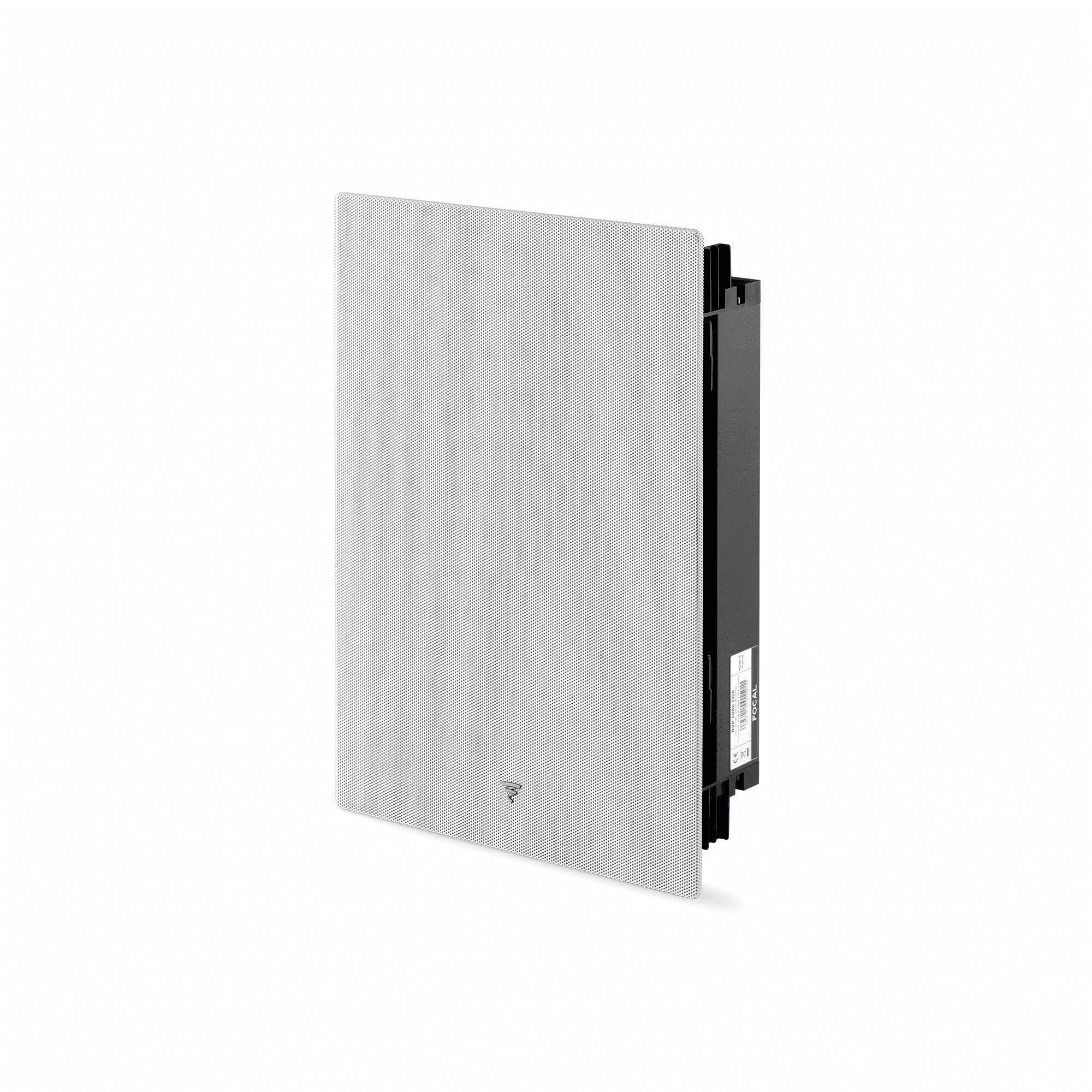

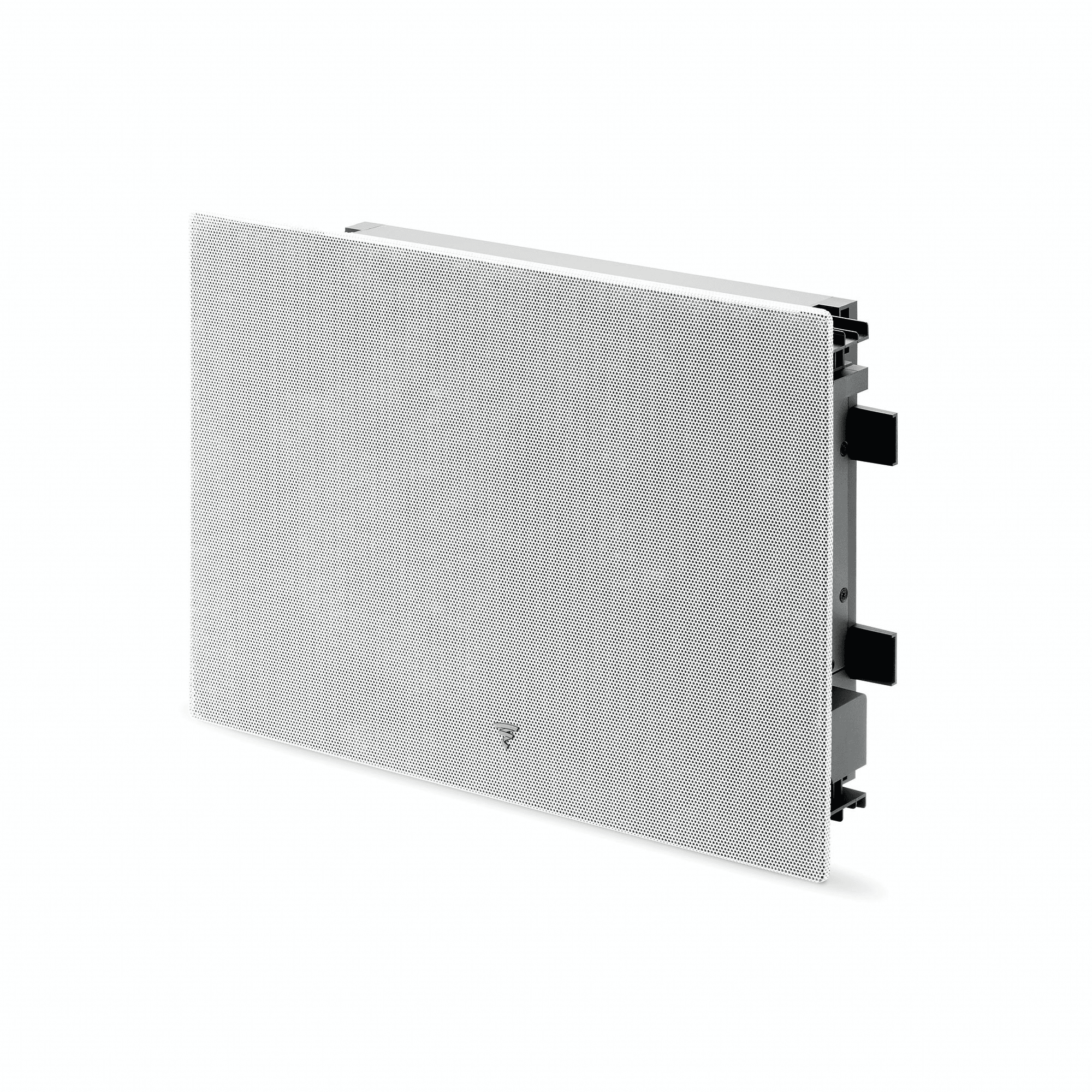

Discreet installation
A ready-to-paint magnetic grille allows the visible surface to coordinate with the room. The supplied cut-out template supports installation planning, while black and white felt provide finishing options behind the grille. A separate construction assembly kit and optional on-wall frame offer additional installation routes. The quoted 6.75 kg net weight includes the grille; mounting clearances should be checked against the installation documentation.
Specifications
- Design
- Two-way closed-back in-wall loudspeaker
- Bass/midrange
- 16.5 cm W composite sandwich cone
- Tweeter
- 27 mm pure-beryllium inverted dome
- Sensitivity
- 88 dB at 2.83 V/1 m
- Low-frequency extension
- 45 Hz, −6 dB
- Nominal impedance
- 8 Ω
- Minimum impedance
- 7 Ω
- Recommended amplifier power
- 25–150 W
- Tweeter positioning
- Adjustable; ±20°
- Treble level
- −3 / 0 / +3 dB
- Enclosure
- MDF and aluminium; closed back
- Grille
- Magnetic; ready to paint
- Included
- Cut-out template; grille; black and white felt
- Optional installation accessories
- Construction assembly kit; on-wall frame
Dimensions
- External dimensions (W × H × D)
- 305 × 435 × 102 mm
- Mounting depth
- 100 mm; specification table
- Net weight with grille
- 6.75 kg
