By REL

Planar PL-1

Wall-Mount Active Subwoofer

Contact us

Finish — Piano Black

In-store demo

Not currently available

Stock availability

Coming soon

  • 300 W amplifier

    Pure Class D power in a shallow wall-mount cabinet.

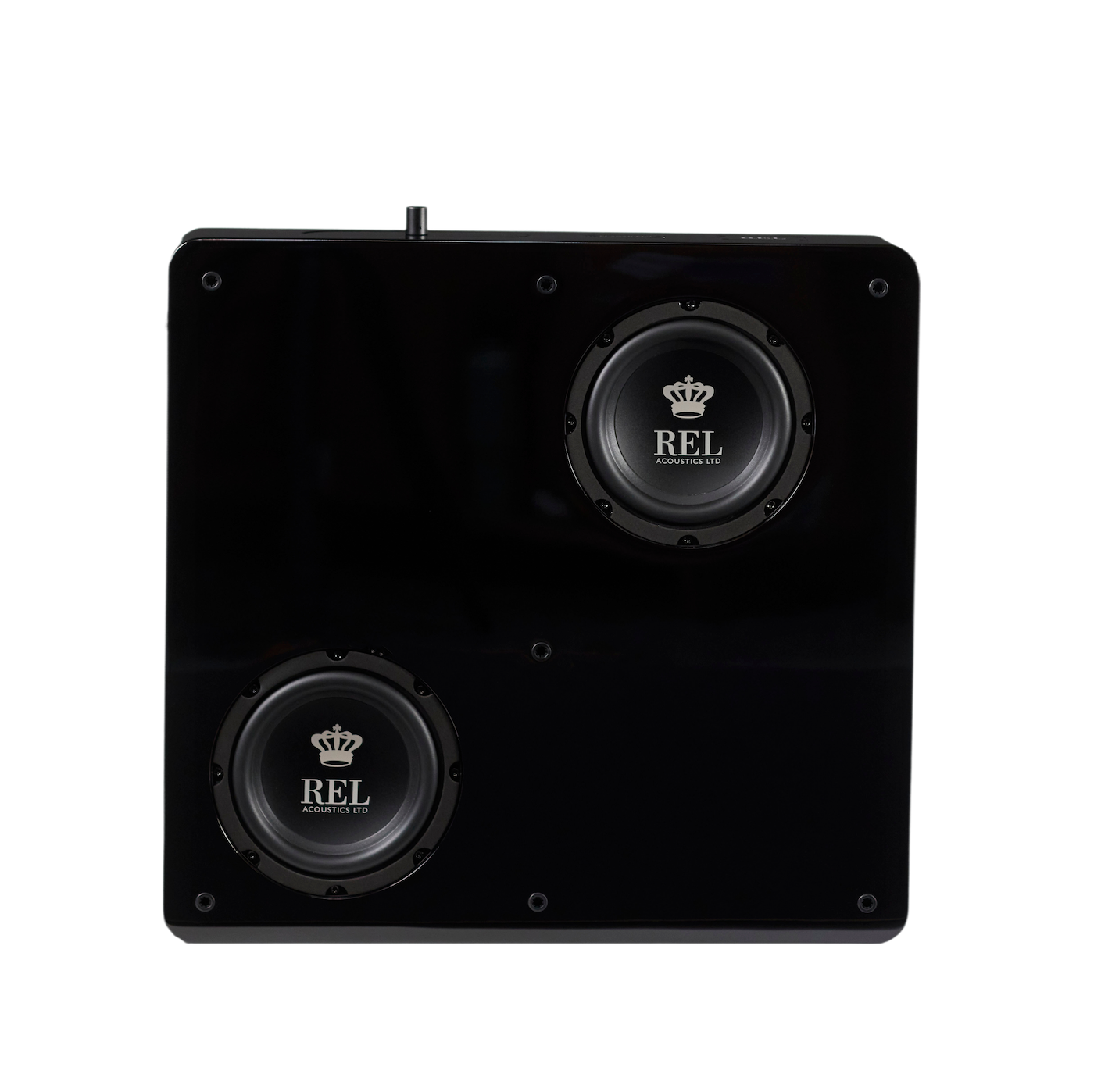

  • Dual 6.5-inch drivers

    Paired with a 10-inch rear passive radiator.

  • Wireless included

    AirShip Direct transmitter and pre-paired receiver are supplied.

  • VIMAR wall isolation

    Dedicated mount; optional Planar Cart for mobile floor placement.

Product details

REL Planar PL-1 brings powered bass to a shallow, wall-mount cabinet. Its 300 W Pure Class D amplifier drives two 6.5-inch FibreAlloy drivers alongside a rear passive radiator.

VIMAR mounting isolates the cabinet from the wall. AirShip Direct wireless is included, with a transmitter and pre-paired concealed receiver. The optional Planar Cart allows floor placement and mobility. Black and White lacquer finishes are available; this listing is for the standard subwoofer.

Specifications

Design
Wall-mount active subwoofer; rear passive radiator
Active driver(s)
2 × 165 mm (6.5-inch) FibreAlloy long-throw
Passive radiator
250 mm (10-inch) FibreAlloy
In-room low-frequency extension (−6 dB)
31 Hz
Amplifier output
300 W RMS
Amplifier type
Pure Class D

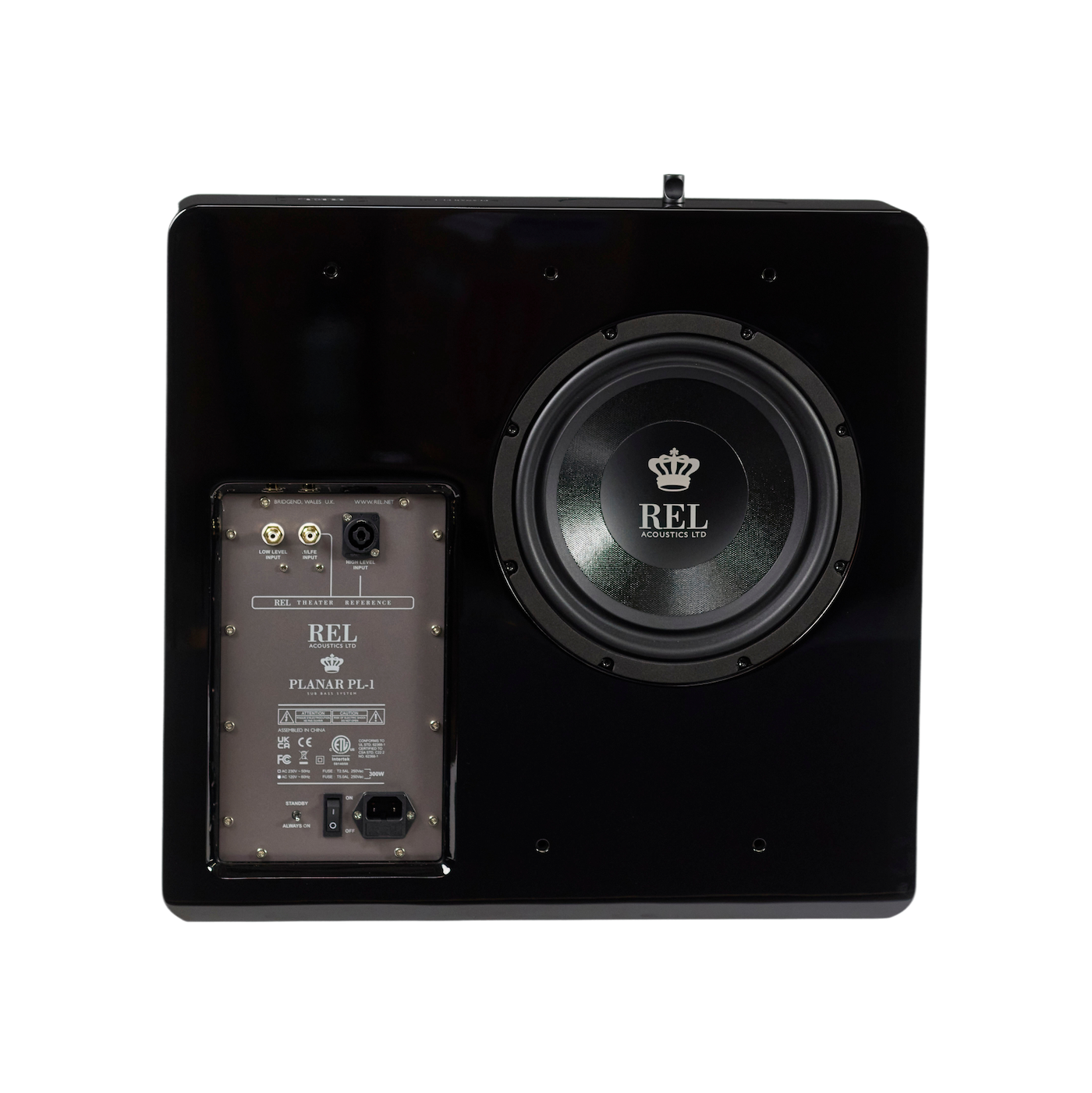

Inputs
High-level SpeakON; low-level RCA; LFE RCA
Filtering
PerfectFilter analogue
Wireless
AirShip Direct transmitter and pre-paired receiver included
Mounting
VIMAR isolation wall-mount system
Optional accessory
Planar Cart; sold separately
Finishes
Piano Black / Gloss White lacquer

Dimensions

Cabinet (W × H × D)
522 × 492 × 144 mm
Wall bracket depth
39 mm additional
Net weight
18.9 kg
