By REL

Carbon Special Black Label

Active Subwoofer

Contact us

Model

In-store demo

Not currently available

Stock availability

Out of stock

  • Full-carbon-fibre active driver

    305 mm front driver with down-firing Carbon/Carbon radiator.

  • 900 W RMS amplifier

    Linear Class D amplification within each cabinet.

  • PerfectFilter analogue integration

    Separate high-level, low-level and LFE signal connections.

  • Piano Black with wood grille

    Natural grille grain varies; AirShip Direct is optional.

Product details

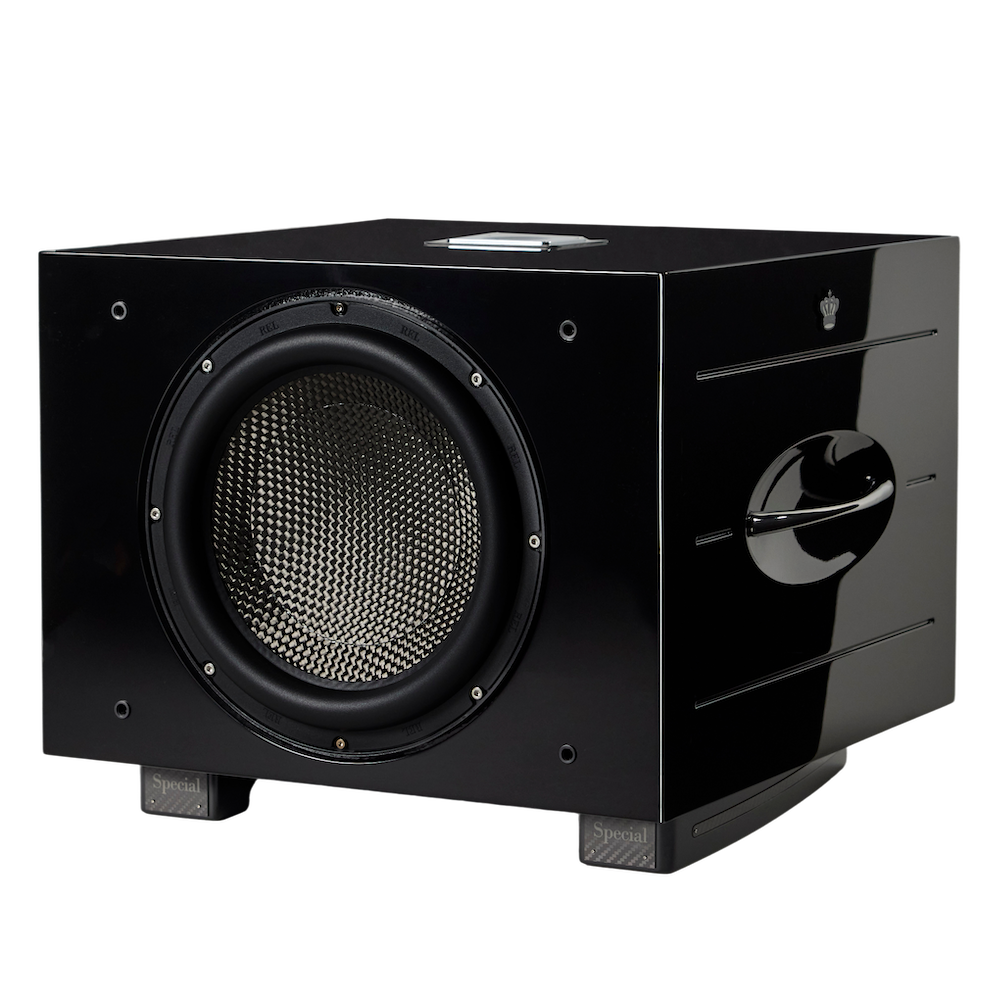

The REL Carbon Special Black Label is a single active subwoofer with a 305 mm full-carbon-fibre front driver and a matching-size down-firing Carbon/Carbon passive radiator. Its Linear Class D amplifier is rated at 900 watts RMS, with specified low-frequency extension to 19 hertz at minus six decibels.

Analogue integration and connection

PerfectFilter analogue processing works with separate high-level, low-level and LFE connections. A Neutrik SpeakON input supports connection alongside the main loudspeakers, while RCA and balanced XLR LFE inputs accommodate other systems. Corresponding outputs support suitable multi-subwoofer installations. Optional AirShip Direct hardware provides a wireless signal link.

Cabinet, grille and installation

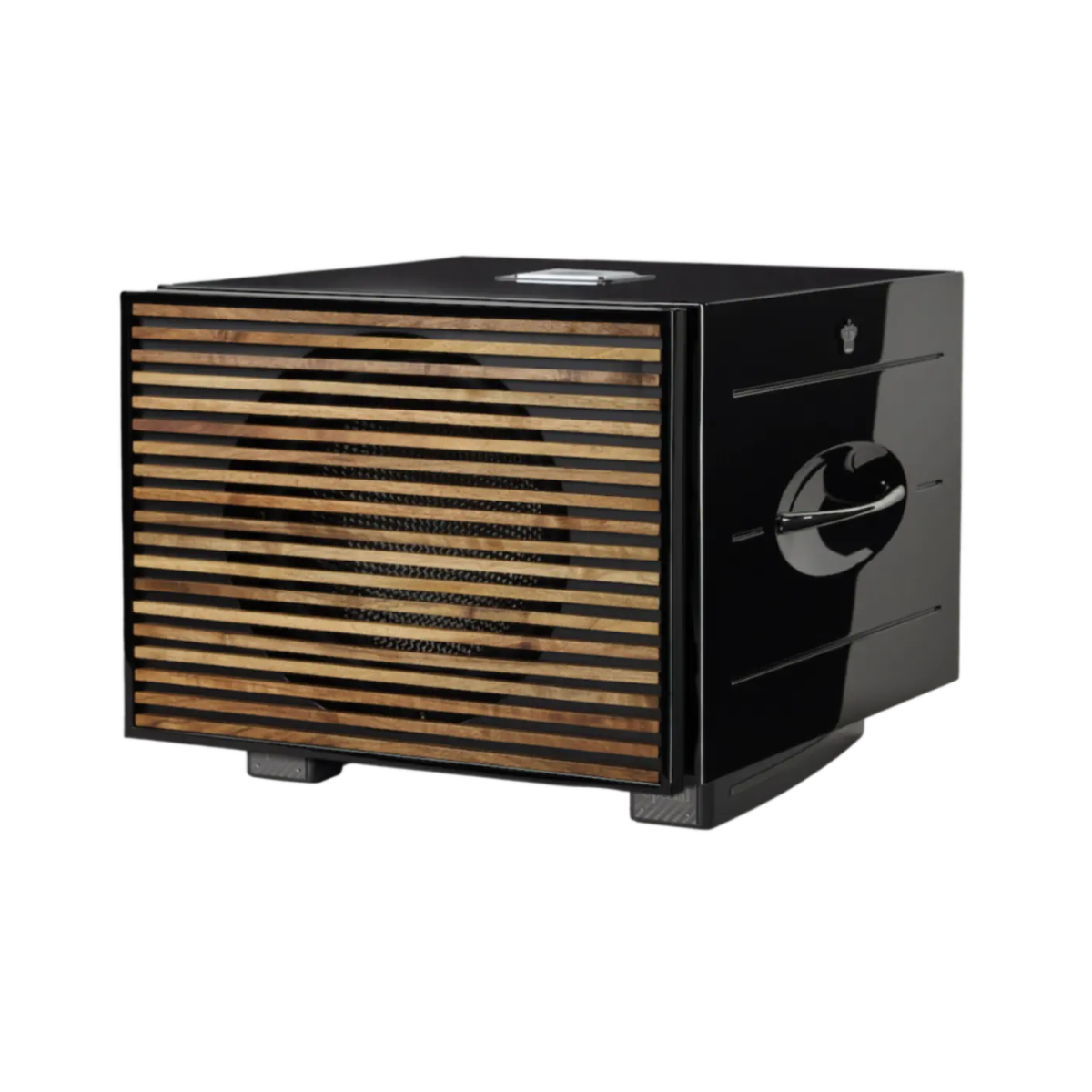

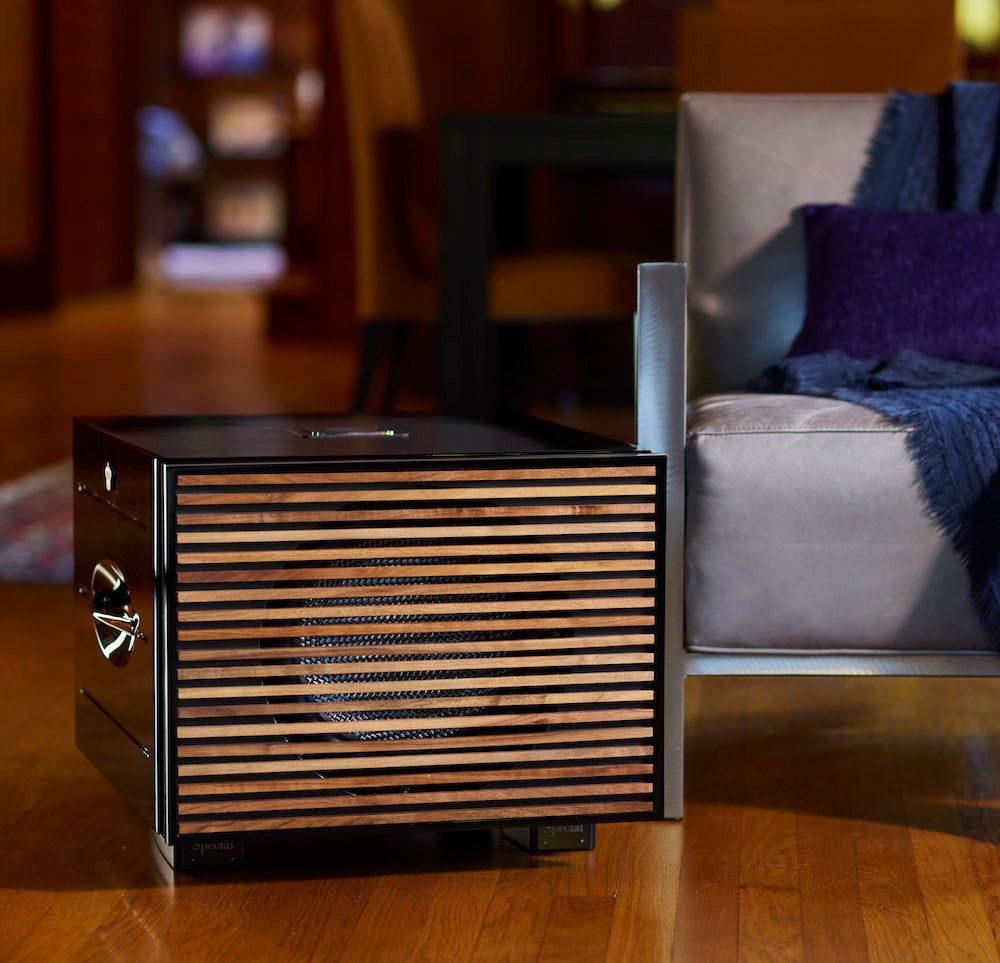

The Piano Black lacquer cabinet has recessed handles, adjustable levelling feet and provision for compatible line-array installation. A natural-wood grille is supplied, with a cloth alternative available; wood grain varies between units. This product represents one subwoofer. Pair and array configurations are separate linked options, and the quoted 44.5-kilogram weight and dimensions apply to each individual cabinet.

Specifications

Configuration
Single subwoofer
Active driver, per unit
305 mm (12-inch) full carbon fibre
Passive radiator, per unit

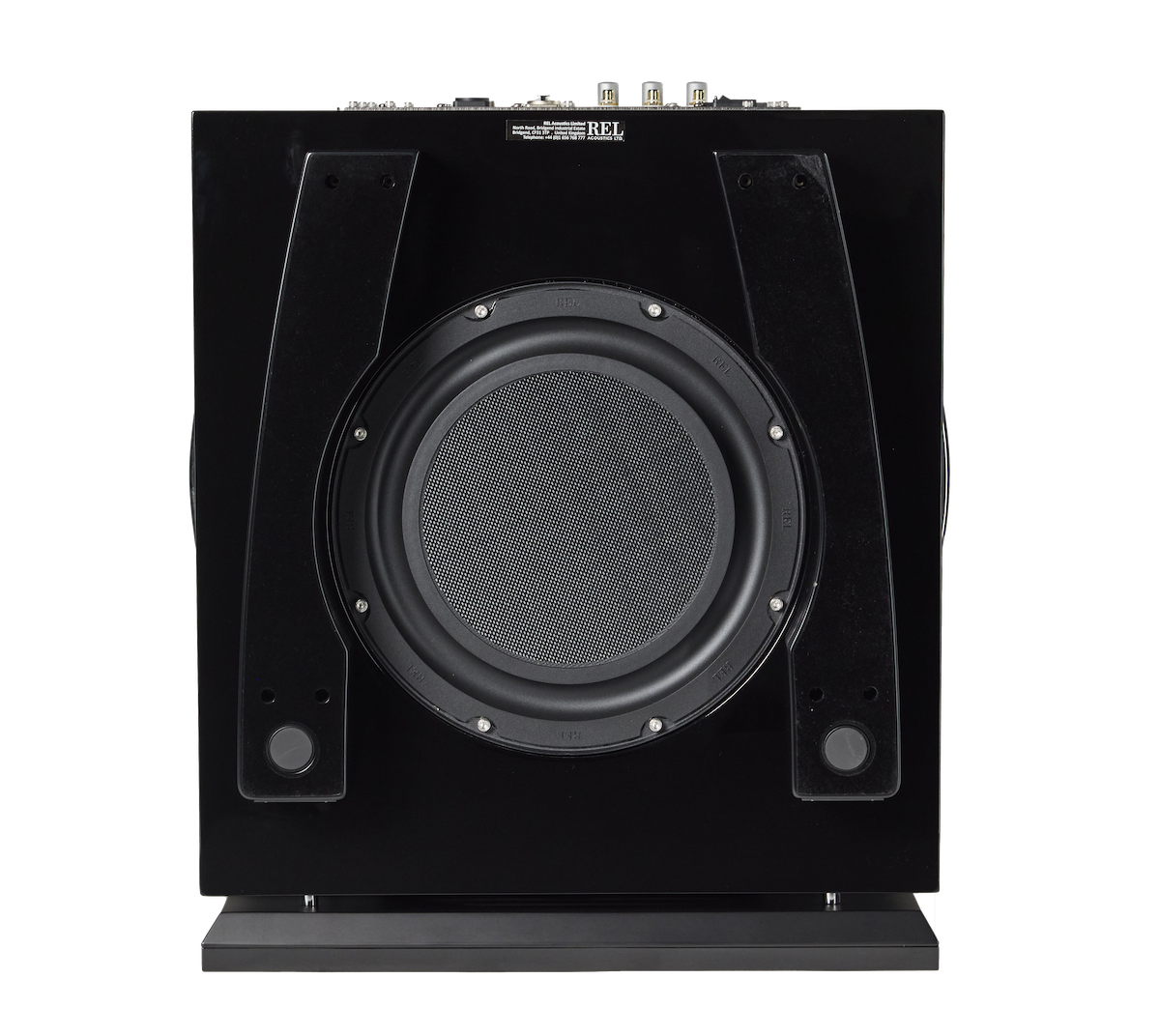

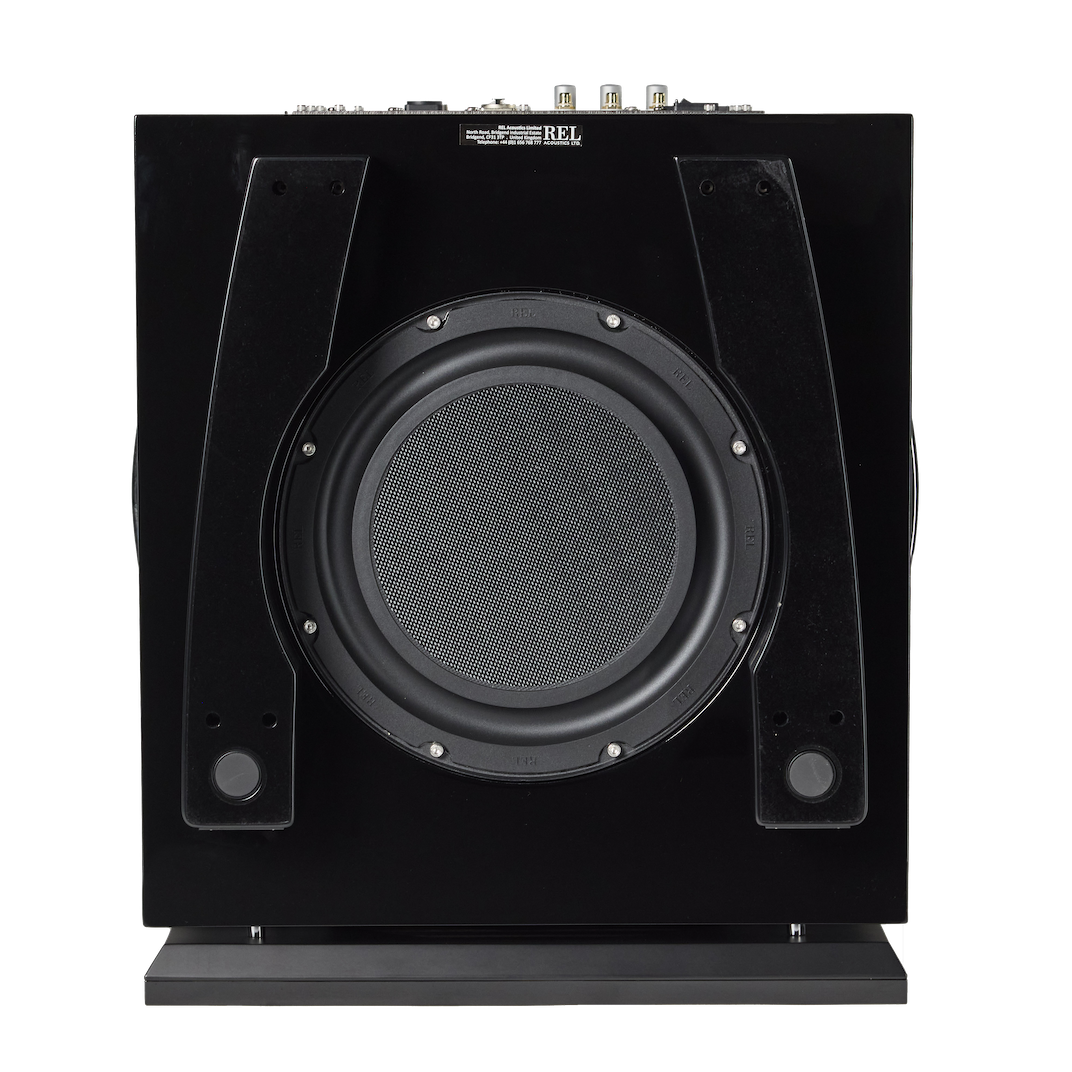

305 mm (12-inch) Carbon/Carbon; down-firing
Low-frequency extension (−6 dB)
19 Hz per unit
Amplifier output
900 W RMS
Amplifier type
Linear Class D
Inputs, per unit
High-level Neutrik SpeakON; 2 × low-level RCA; LFE RCA and XLR
Outputs, per unit
High-level SpeakON; low-level RCA; LFE RCA or XLR
Filtering
PerfectFilter analogue
Wireless
AirShip Direct; sold separately
Grille
Premium wood supplied; cloth option
Finish
Piano Black lacquer

Dimensions

Dimensions per unit (W × H × D)
488 × 410 × 565 mm
Net weight per unit
44.5 kg
