Product details

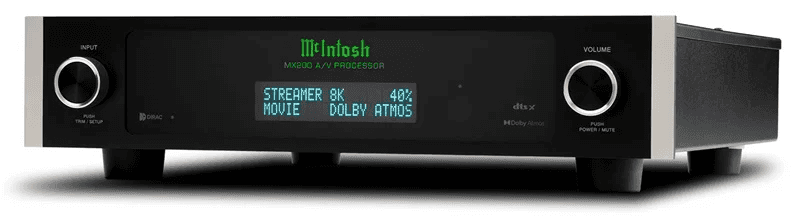

The McIntosh MX200 is an 11.2-channel surround processor for systems using external power amplifiers. It supports layouts up to 7.2.4, with eleven balanced main-channel outputs and two discrete RCA subwoofer outputs. Dolby Atmos and DTS:X decoding accommodate compatible immersive soundtracks.
Room correction and HDMI
Full-bandwidth Dirac Live room correction is included, together with a measurement microphone and stand. Four HDMI inputs and one eARC/ARC output support compatible 8K/60 Hz and 4K/120 Hz video, with HDCP 2.3, Dolby Vision, HDR10+, HLG and BT.2020 compatibility. Individual speaker crossover settings help configure the system.

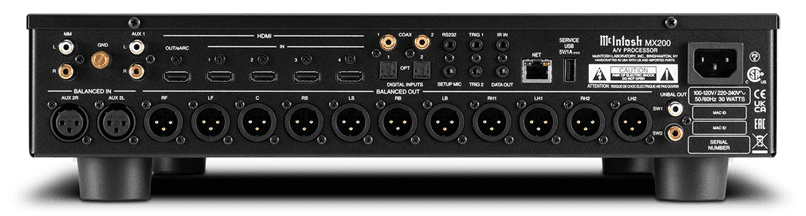

Audio sources and installation
Balanced and unbalanced line inputs, a moving-magnet phono input and optical/coaxial digital inputs accommodate additional sources. Ethernet provides network setup and integration, with RS232, IR, data and trigger connections for installed control. The USB-A socket is for service rather than library playback. McIntosh’s Black glass front panel, illuminated branding and twin rotary controls provide local operation. A remote is supplied, and the unit supports rack installation with the appropriate mounting arrangement. The net weight is 7.7 kilograms.
