By Mcintosh

MC257

7CH power amplifier

Contact us

In-store demo

Available

Stock availability

Available

  • Seven channels of amplification

    200 W per channel with all seven channels driven.

  • TripleView power meter

    Three front-channel outputs share one illuminated display.

  • Dynamic Power Manager

    Rated output into either four- or eight-ohm loads.

  • Balanced and unbalanced inputs

    Seven XLR and seven RCA inputs for a surround processor.

Experience the MC257 in these curated features

Product details

The McIntosh MC257 is a seven-channel solid-state power amplifier for home-cinema systems. It delivers 200 watts per channel with all seven channels operating, or 250 watts per channel when only the three front channels are driven, with the same ratings into four- or eight-ohm speakers.

Power delivery and monitoring

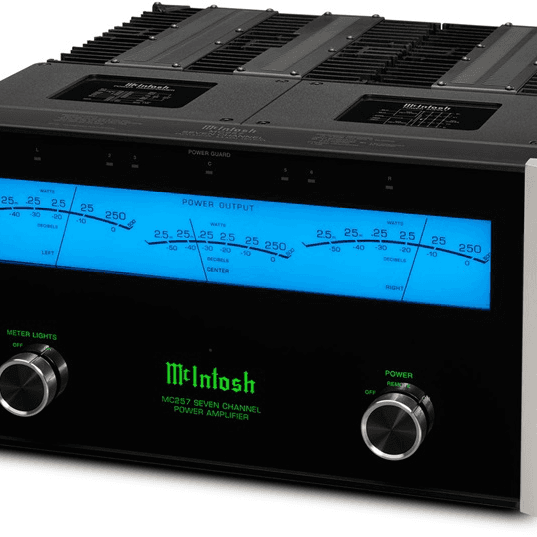

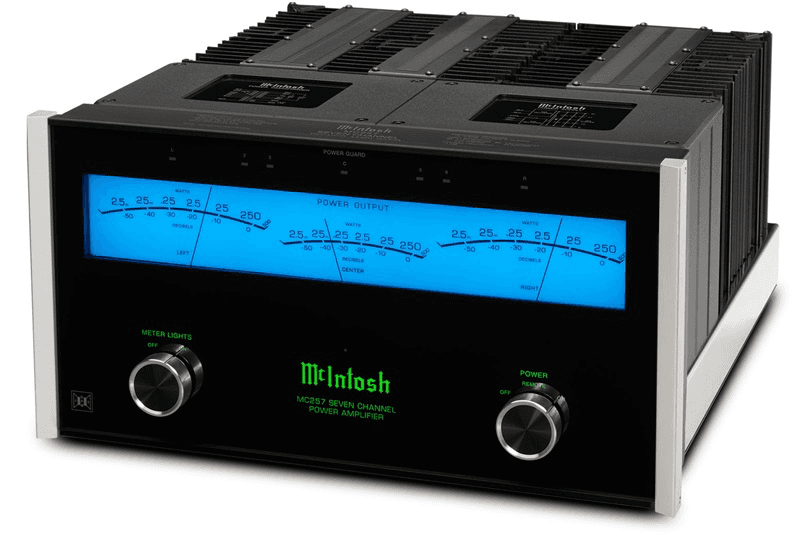

Dynamic Power Manager adapts output to the connected speaker load. Power Guard monitors the signal to limit clipping, while Sentry Monitor provides short-circuit protection. A TripleView meter displays output for the three front channels in one illuminated window, with meter lighting that can be switched off for darkened-room viewing.

Installation and connections

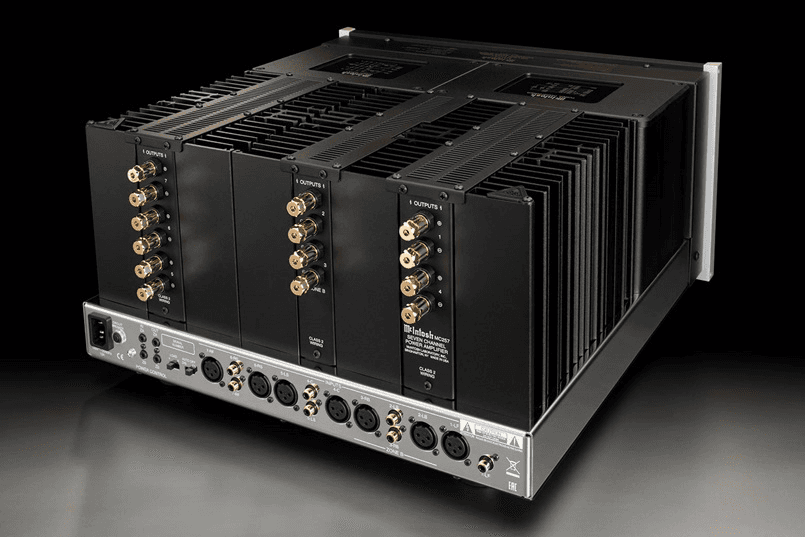

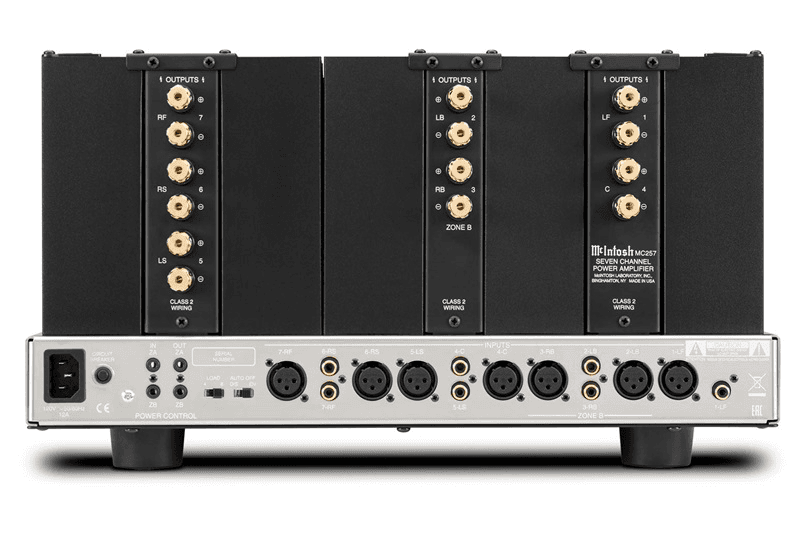

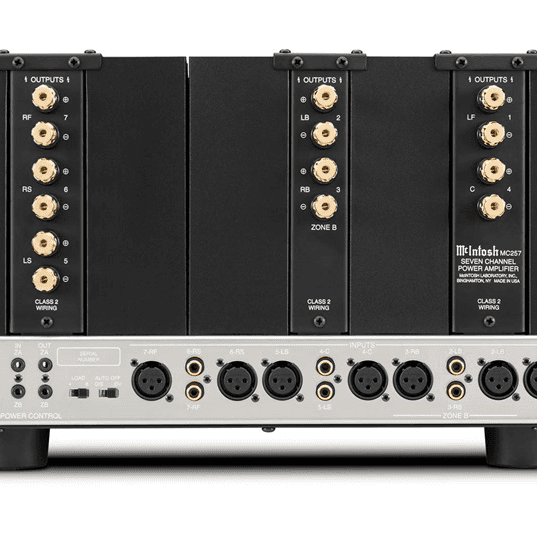

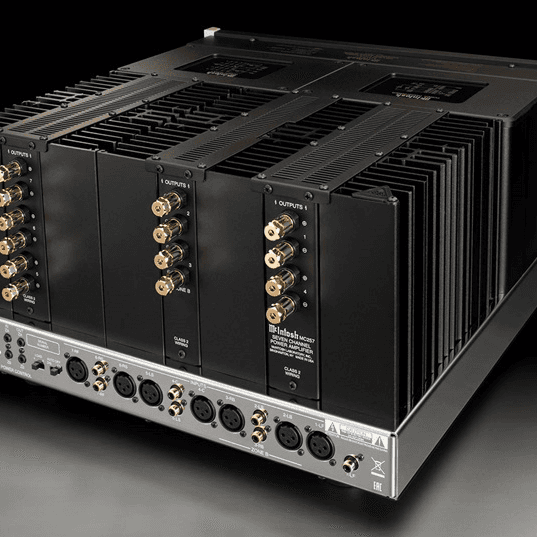

Seven balanced and seven unbalanced inputs connect an external surround processor, while the amplifier can also operate as five channels in one zone and two in another. Remote power-control connections support compatible system integration. The Black glass front, aluminium end caps and polished stainless-steel chassis follow McIntosh’s established styling. Net weight is 43 kilograms. The manufacturer’s 533 mm installation depth includes the front panel and connected cables, making it distinct from the chassis-only depth.

Specifications

Type
Seven-channel solid-state power amplifier
All-channel output
200 W per channel into 4 or 8 Ω; all 7 channels
Three-channel output
250 W per channel into 4 or 8 Ω; front 3 only
Rated power bandwidth
20 Hz–20 kHz
THD
0.005%
Signal-to-noise ratio
108 dB below rated output
Dynamic headroom
3.3 dB
Damping factor
Greater than 70 at 4 Ω; greater than 140 at 8 Ω
Frequency response
+0 / −0.25 dB, 20 Hz–20 kHz; +0 / −3 dB, 10 Hz–100 kHz
Circuit
Push-pull complementary; direct coupled
Load management
Dynamic Power Manager
Protection
Power Guard; Sentry Monitor
Inputs
7 balanced XLR; 7 unbalanced RCA
Meter
TripleView; front left/centre/right power
Lighting
Direct LED; switchable meter illumination
Zone configuration
7 channels or 5 + 2 channels
Power control
Remote; 7-channel or 5 + 2 operation
Finish
Black glass; aluminium trim; polished stainless-steel chassis

Dimensions

Installation dimensions (W × H × D)
445 × 239 × 533 mm; includes feet, front panel and cables
Net weight
43 kg
