By REL

Carbon Special Black Label Line Array

Active Subwoofer Line Array

Contact us

Model

In-store demo

Not currently available

Stock availability

Out of stock

  • Six full-carbon-fibre active drivers

    One 305 mm active driver and passive radiator per cabinet.

  • Six 900 W RMS amplifiers

    Dedicated Linear Class D amplification in every subwoofer.

  • High-level and LFE connections

    SpeakON, low-level RCA and RCA/XLR LFE system inputs.

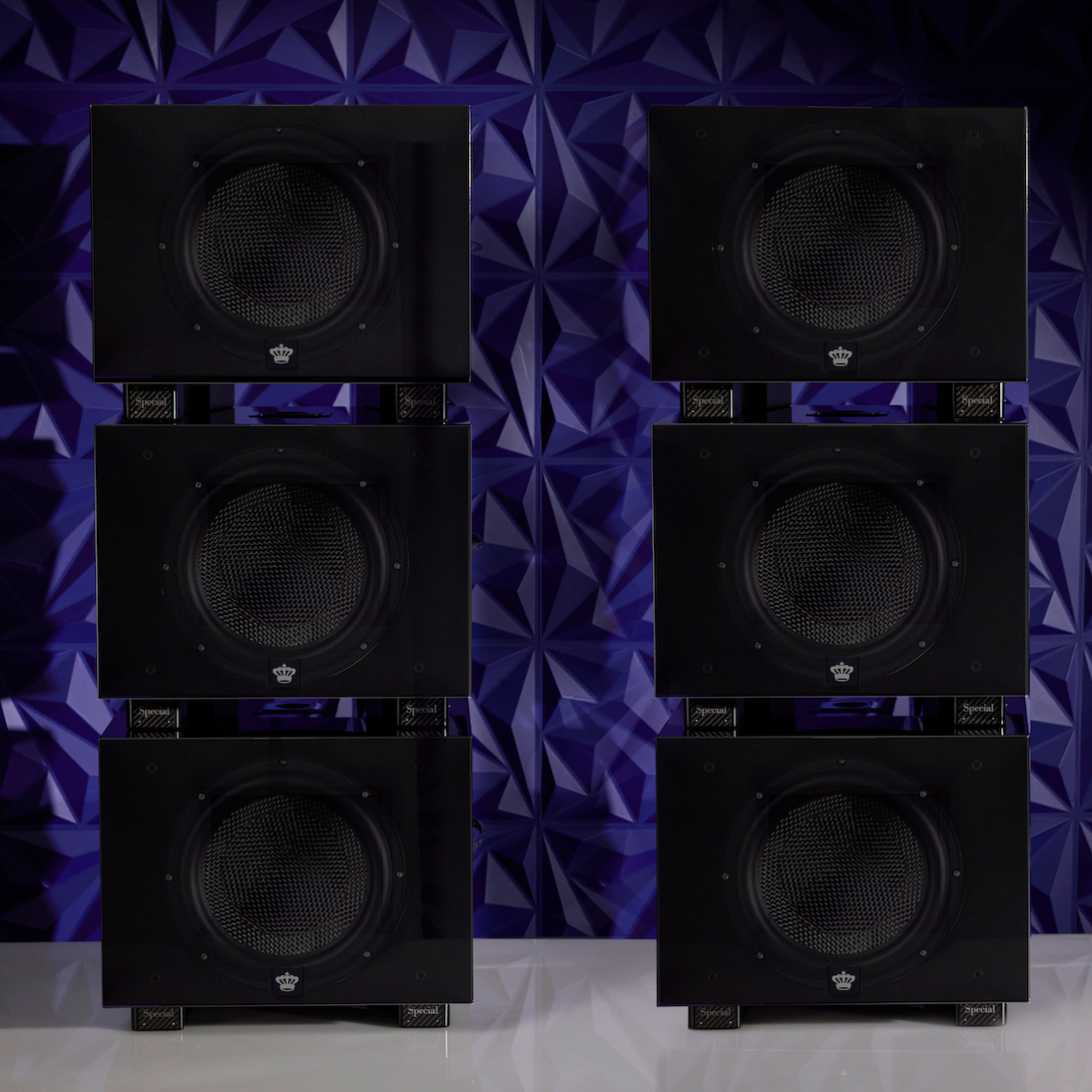

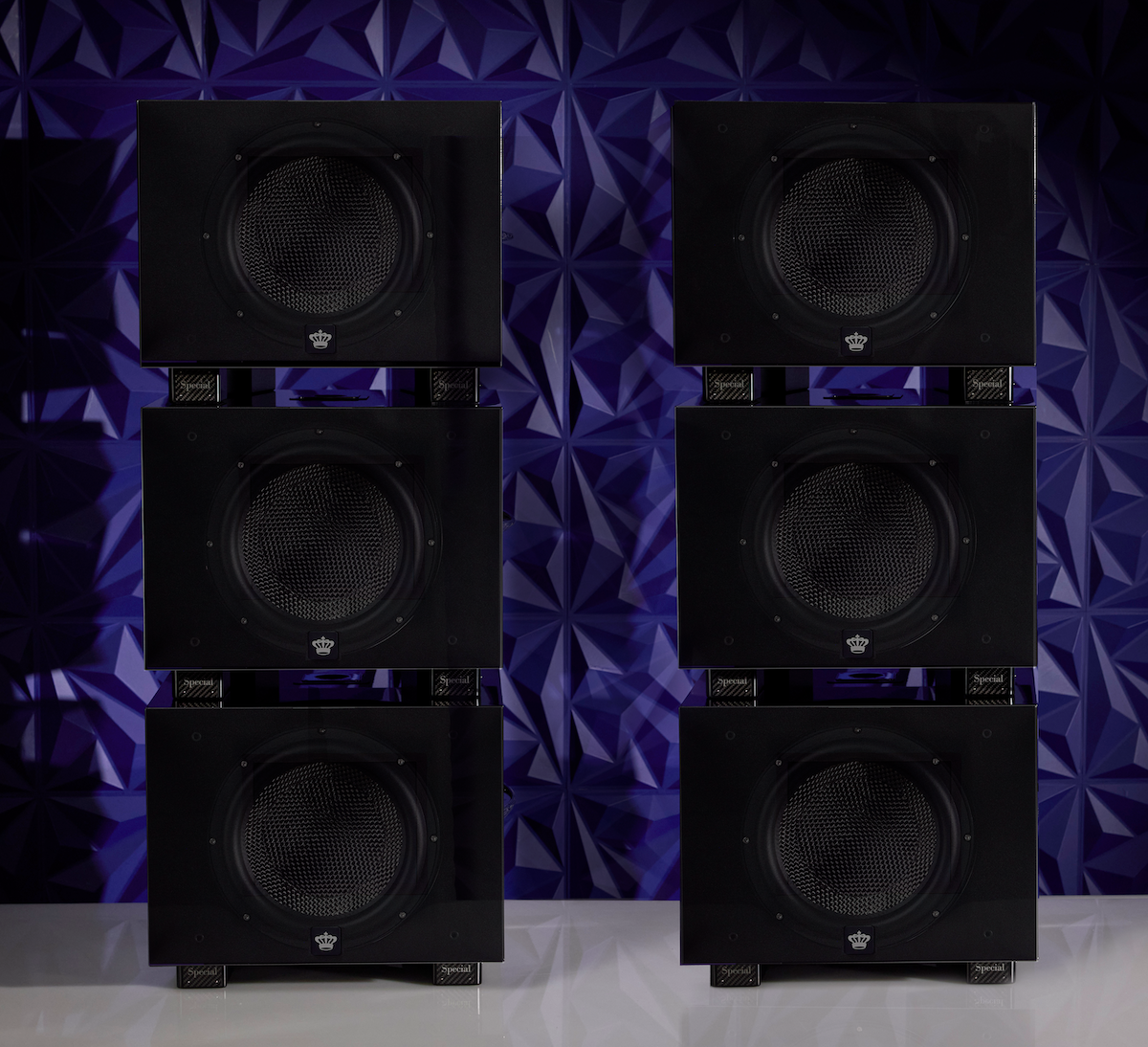

  • Two towers of three subwoofers

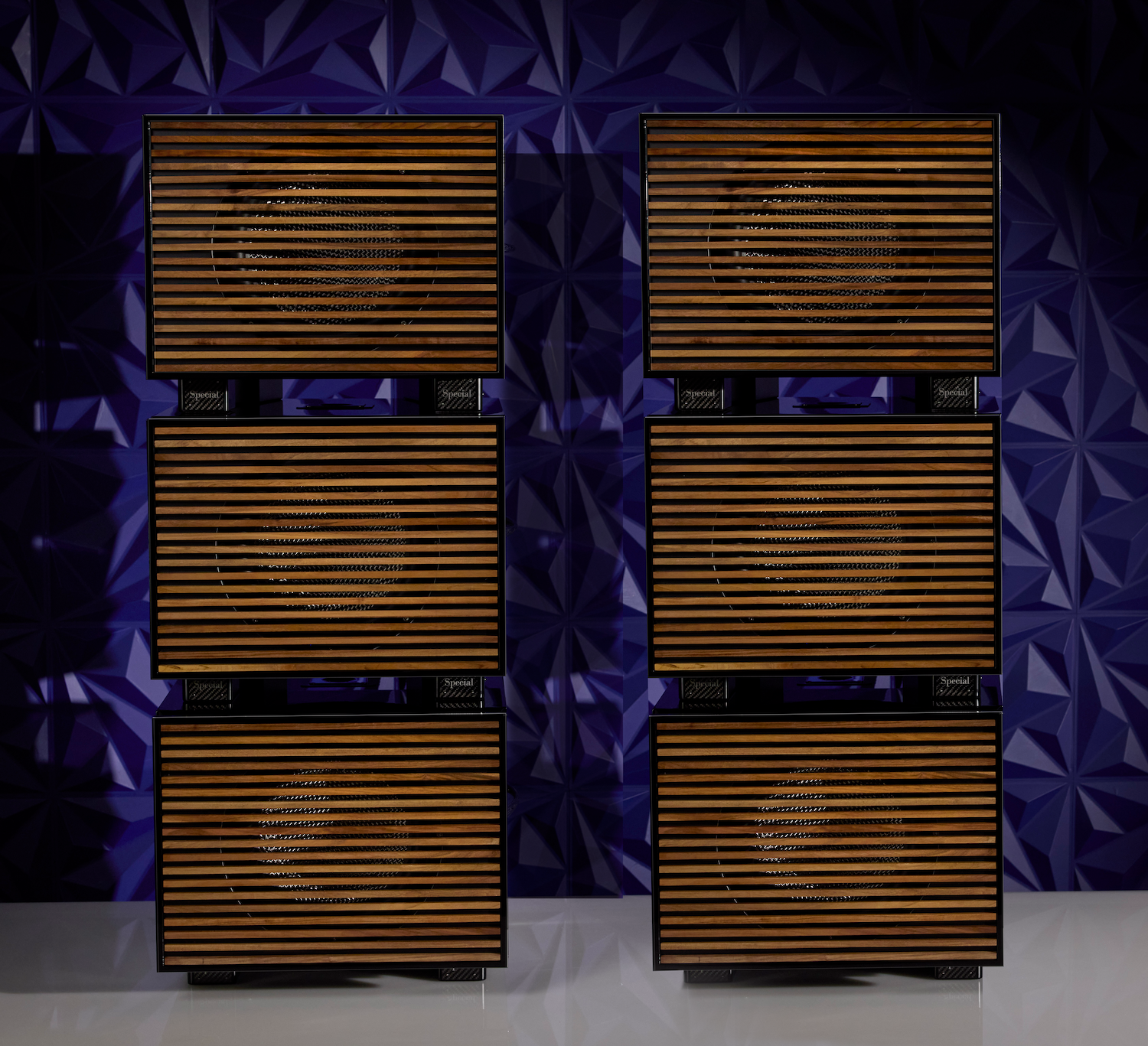

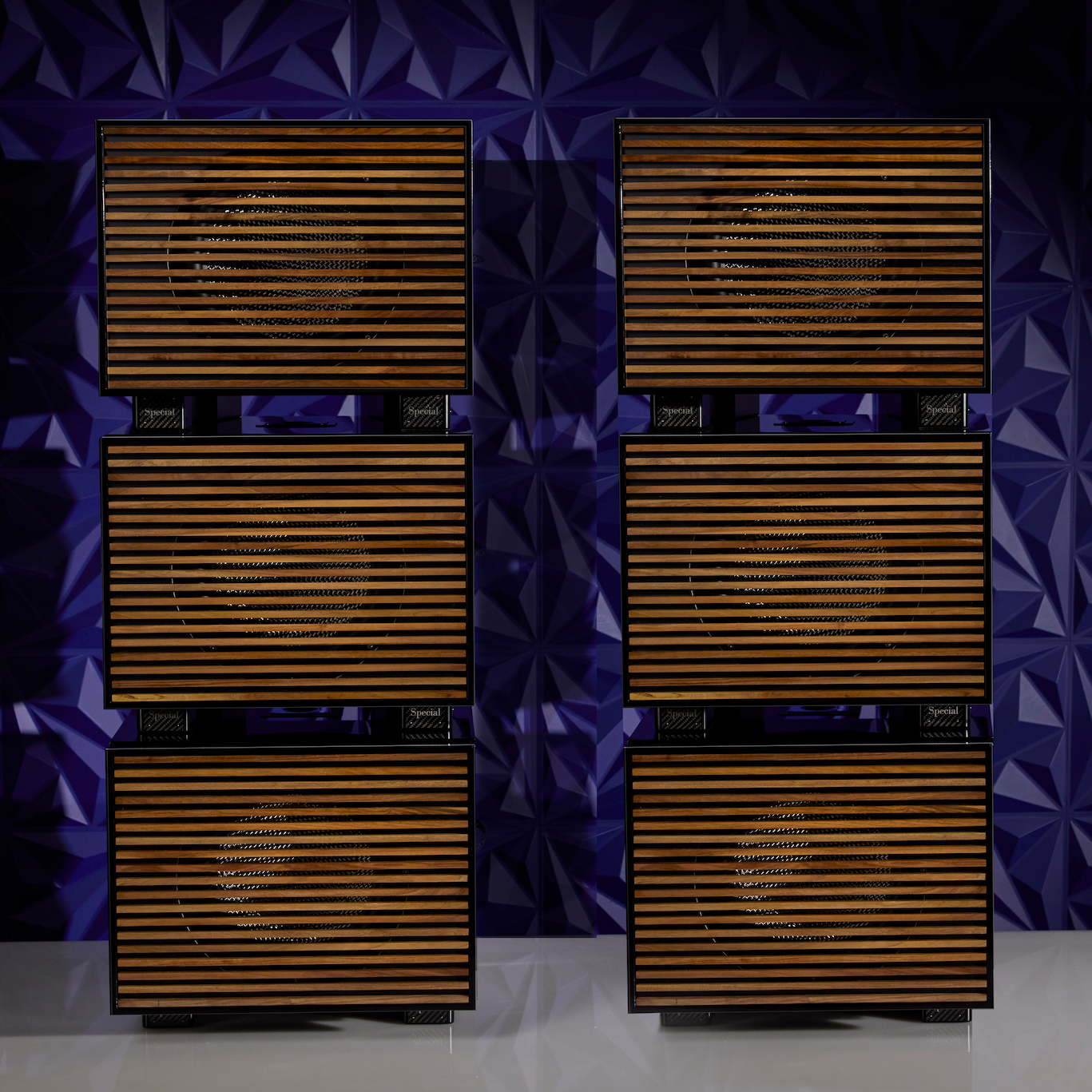

    Piano Black cabinets with premium wood grilles supplied.

Product details

This REL Carbon Special Black Label Line Array comprises six active subwoofers, arranged as two towers of three. Each cabinet contains a 305 mm full-carbon-fibre active driver, a down-firing 305 mm Carbon/Carbon passive radiator and its own 900-watt RMS Linear Class D amplifier.

Analogue integration across six cabinets

PerfectFilter analogue circuitry works with high-level Neutrik SpeakON, low-level RCA and dedicated RCA or balanced XLR LFE connections. Corresponding outputs support suitable multi-subwoofer arrangements. The manufacturer’s 19 Hz extension at minus six decibels describes each individual subwoofer; the installed result also depends on placement, room acoustics and array setup.

Finish, grilles and installation

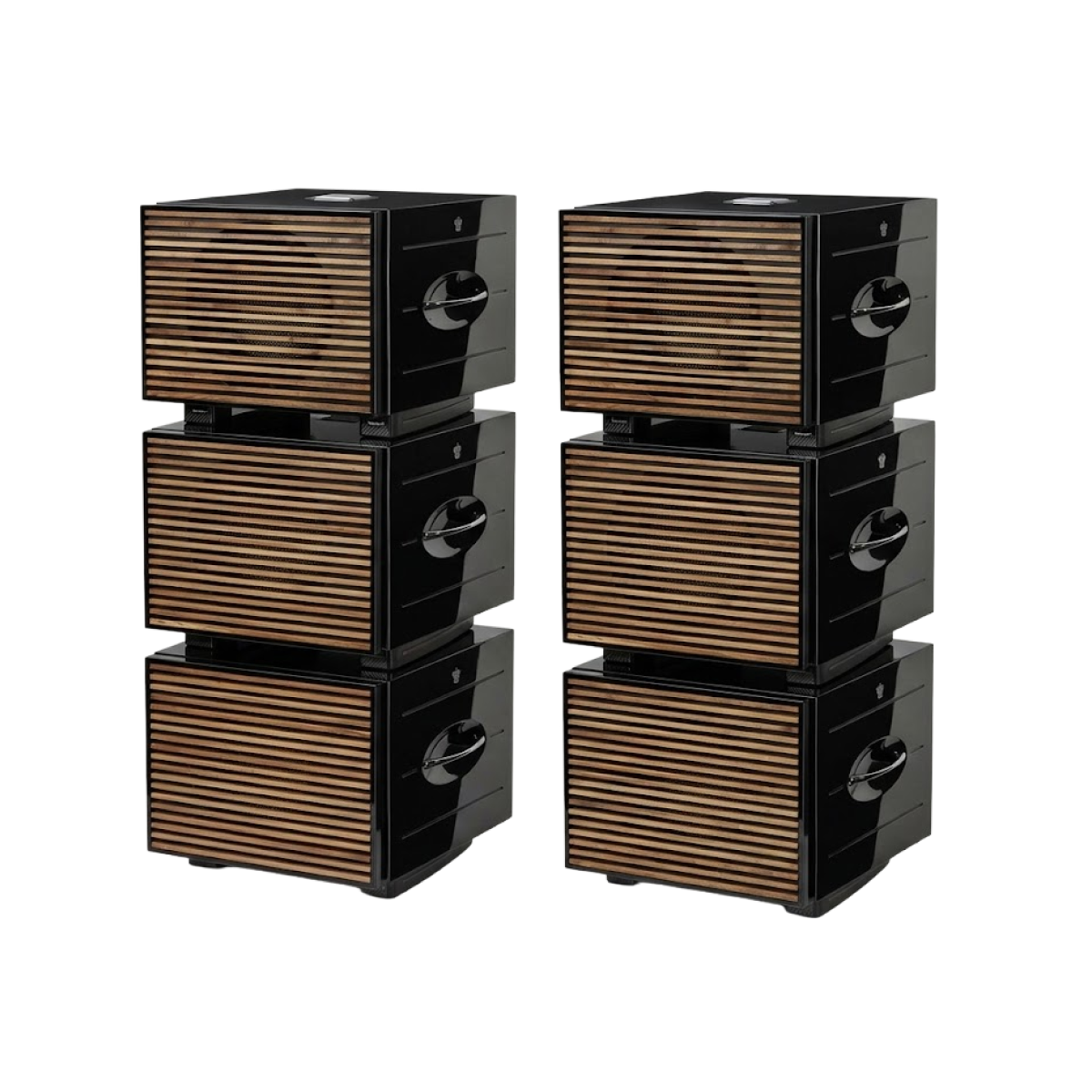

Piano Black lacquer cabinets are supplied with premium natural-wood grilles, with cloth alternatives available. AirShip Direct wireless hardware is optional. Each cabinet weighs 44.5 kilograms and has its own mains connection. Listed dimensions and weight are per unit rather than the assembled tower or complete six-subwoofer system. The two stacks require appropriate placement, secure installation and individual level and crossover integration with the main loudspeakers.

Specifications

Configuration
Stereo line array; 6 subwoofers, 3 per side
Active driver, per unit
305 mm (12-inch) full carbon fibre
Passive radiator, per unit
305 mm (12-inch) Carbon/Carbon; down-firing
Low-frequency extension (−6 dB)
19 Hz per unit
Amplifier output
6 × 900 W RMS
Amplifier type
Linear Class D
Inputs, per unit
High-level Neutrik SpeakON; 2 × low-level RCA; LFE RCA and XLR
Outputs, per unit
High-level SpeakON; low-level RCA; LFE RCA or XLR
Filtering
PerfectFilter analogue
Wireless
AirShip Direct; sold separately
Grille
Premium wood supplied; cloth option
Finish
Piano Black lacquer

Dimensions

Dimensions per unit (W × H × D)
488 × 410 × 565 mm
Net weight per unit
44.5 kg
