$11,000.00
Finish — Elba Green (bespoke)
In-store demo
Available
Stock availability
Available
100 mm alloy driver
C100L bass/midrange unit with a 26 mm D26 tweeter.
Tapered-tube loading
Acoustic loading developed from Vivid’s larger speakers.
25–125 W amplification
Passive design with an 8-ohm nominal impedance.
Curved resin enclosure
Standard or bespoke finishes with optional mounting accessories.
Product details

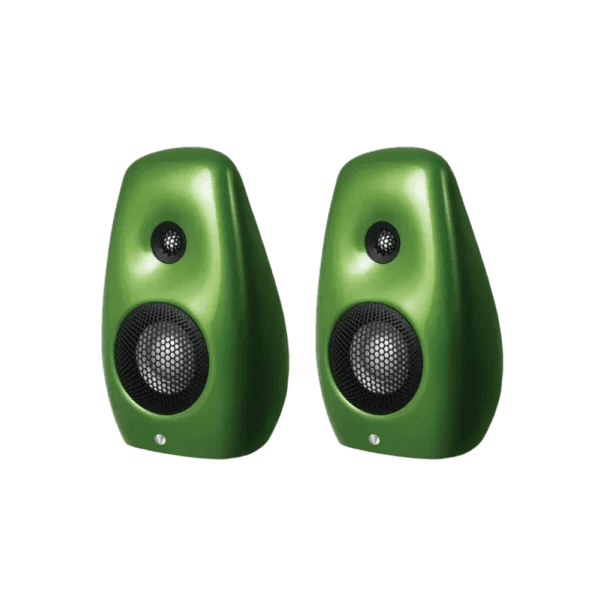

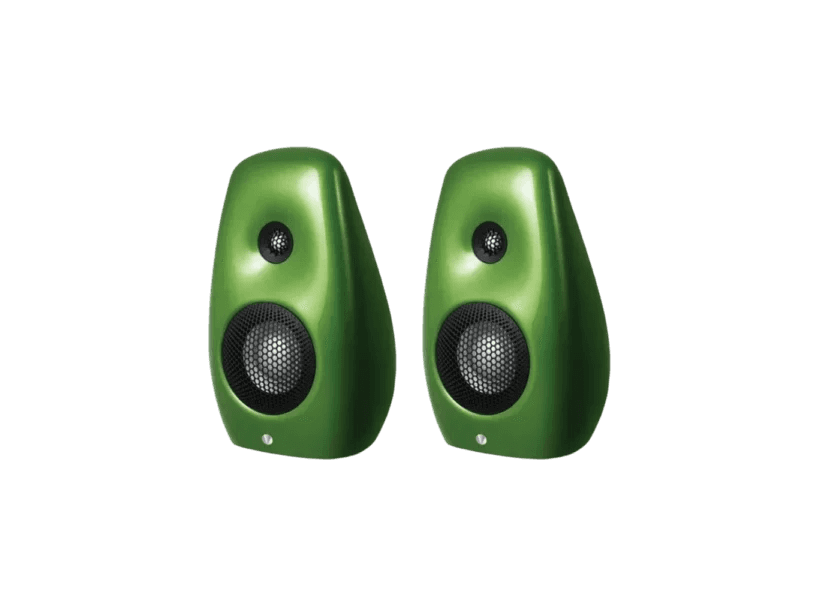

The Vivid Audio KAYA S12 is a compact two-way loudspeaker that brings the brand’s tapered-tube technology into a 12-litre enclosure. A 100 mm C100L alloy-cone bass/midrange driver works with the D26 alloy-dome tweeter, creating a small speaker for stereo, studio and multichannel systems.
Tapered-tube acoustic loading
An exponentially tapered tube wraps around the cabinet interior to absorb unwanted resonances and assist the bass-reflex system. The 26 mm tweeter also uses tapered-tube loading. The moulded polyurethane-resin cabinet follows the curved form associated with Vivid’s larger speakers, avoiding the broad flat panels of a conventional box.
Flexible placement and finishes
The S12 can be supported by a dedicated optional stand or fitted to a purpose-designed wall bracket. Piano Black, Lexus Pearl White and Oyster Matte are standard finishes, with bespoke PPG automotive colours available by request. Vivid recommends amplifier power between 25 and 125 watts. Stands and wall brackets are separate accessories.
Specifications
- Configuration
- Two-way, two-driver passive loudspeaker
- Bass/midrange driver
- C100L: 100 mm alloy cone
- Tweeter
- D26: 26 mm tapered-tube-loaded alloy dome
- Cabinet
- RIMCast polyurethane resin
- Internal volume
- 12 L
- Bass loading
- Exponentially tapered-tube-enhanced bass reflex
- Frequency range (−6 dB)
- 45 Hz–25 kHz
- Sensitivity
- 85 dB at 2.83 V RMS / 1 m on axis
- Nominal impedance
- 8 Ω
- Minimum impedance
- 5.3 Ω
- Crossover
- 3 kHz
- Recommended amplifier power
- 25–125 W
- Harmonic distortion
- <0.5% over frequency range at 1 W (2nd and 3rd harmonics)
- Standard finishes
- Piano Black; Lexus Pearl White; Oyster Matte
- Bespoke finishes
- PPG automotive colours on request
- Optional supports
- Dedicated stand or wall bracket
Dimensions
- Dimensions (W × H × D)
- 237 × 400 × 254 mm
- Net weight (each)
- 6 kg
