Product details

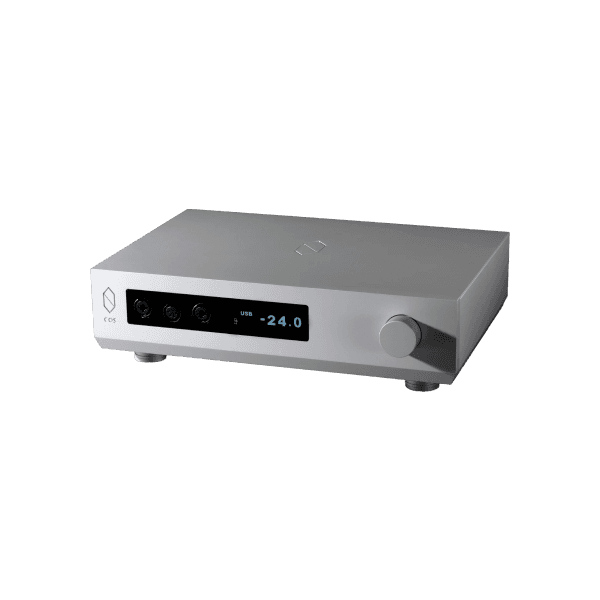

D10 is a dream component for your beloved sonic pleasure. It is a DAC, a pre-amp, and a headphone amp, well built with streaming capability. Yes, the same spacious, supple and dynamically powerful sound that COS products have been offering. D10 is also a phono amp, one that delivers from your preferred vinyls luscious vibes. COS ALGORITHM, BUFFER and RE-CLOCKING COS's proprietary algorithm with a linear-phase delay FIR filter can up-sample original data to 176.4K or 192K. D10 stores digital data in a one-second buffer before converting to analog signals, under the coordination of a crystal oscillator with a jitter precision less than 1ps and a dedicated re-clocking circuitry. STREAMING (optional) Stable and quality streaming is available, with or without a wire, for TiDAL, Spotify, Deezer, and Qobuz. Setup is easy with iOS and Android applications. PHONO-AMPLIFIER (optional) There are 5 loading resistors and 3 loading capacitors, all selectable, to accommodate phono cartridges of your choice. Other features include JFET input stage, on-board low-noise linear regulator, and handpicked components for RIAA curve matching and zero capacitor between audio signal paths. Extremely low in noise and distortion. TWO-LAYER HOUSING D10 has an NCT internal chassis and an aluminum exterior. This design provides a fortified frame that make possible lowered noise and minimized interference, plus a fine outlook.
Specifications
Analog Inputs
1 × Balanced (XLR), 1 × Unbalanced (RCA)
Analog Outputs
1 × Balanced (XLR), 1 × Unbalanced (RCA)
Max Output
16V (balanced), 8V (unbalanced)
Input Impedance
100K ohm
Output Impedance
200 ohm
Residual Noise
<2μV (-114dBV)
Frequency Response
20Hz – 20kHz ±0.1dB
THD+N
<0.001% (-100dB)
SNR
>110dB
Crosstalk
< -120dB
Volume Control
140-step resistor ladder, 0.5dB per step
Dimensions
Dimensions
415mm (W) × 100mm (H) × 280mm (D)
Weight
10 kg
