Product details

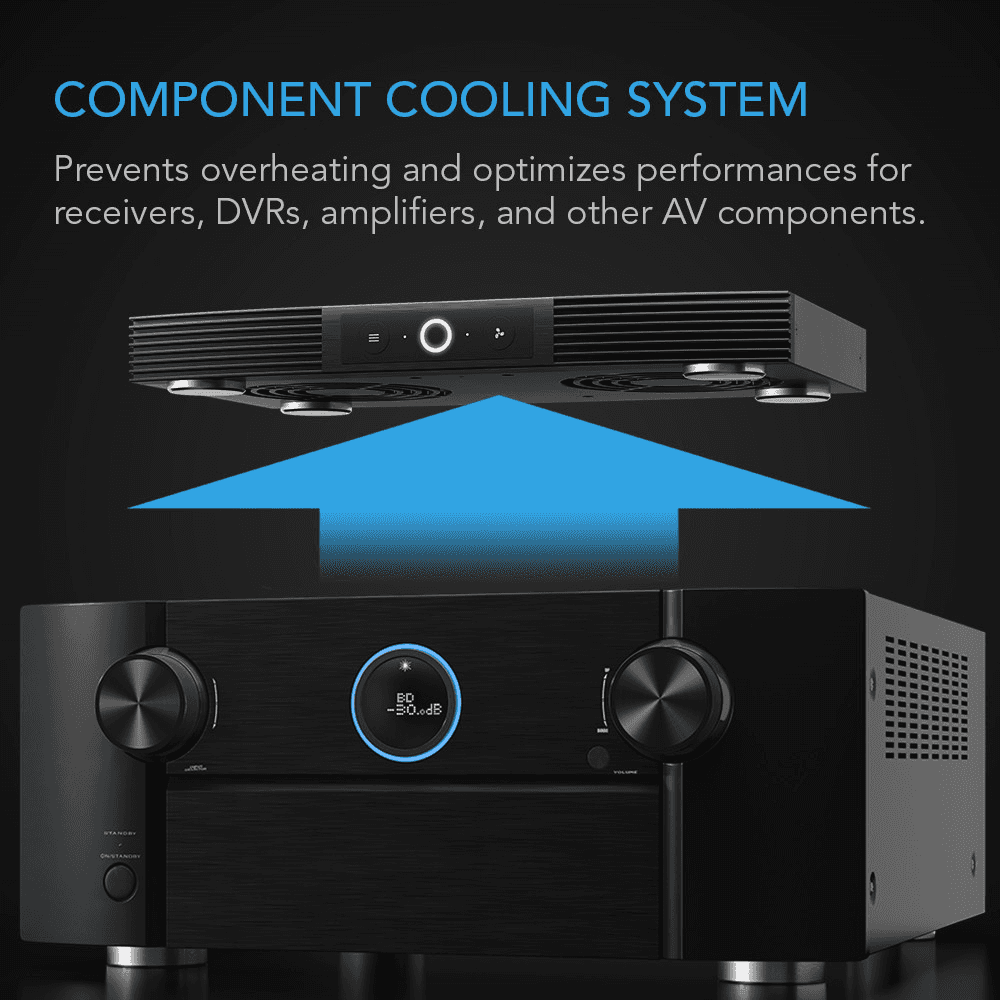

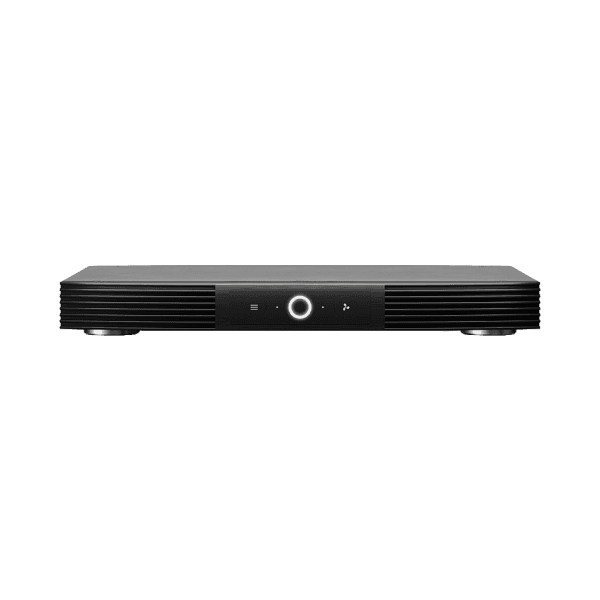

The AC Infinity AIRCOM S6 is a compact 12-inch cooling system for AV receivers and other ventilated components. Its 2 dual-ball-bearing blowers draw warm air from the equipment below and discharge it through the rear of the enclosure.
Temperature control and airflow

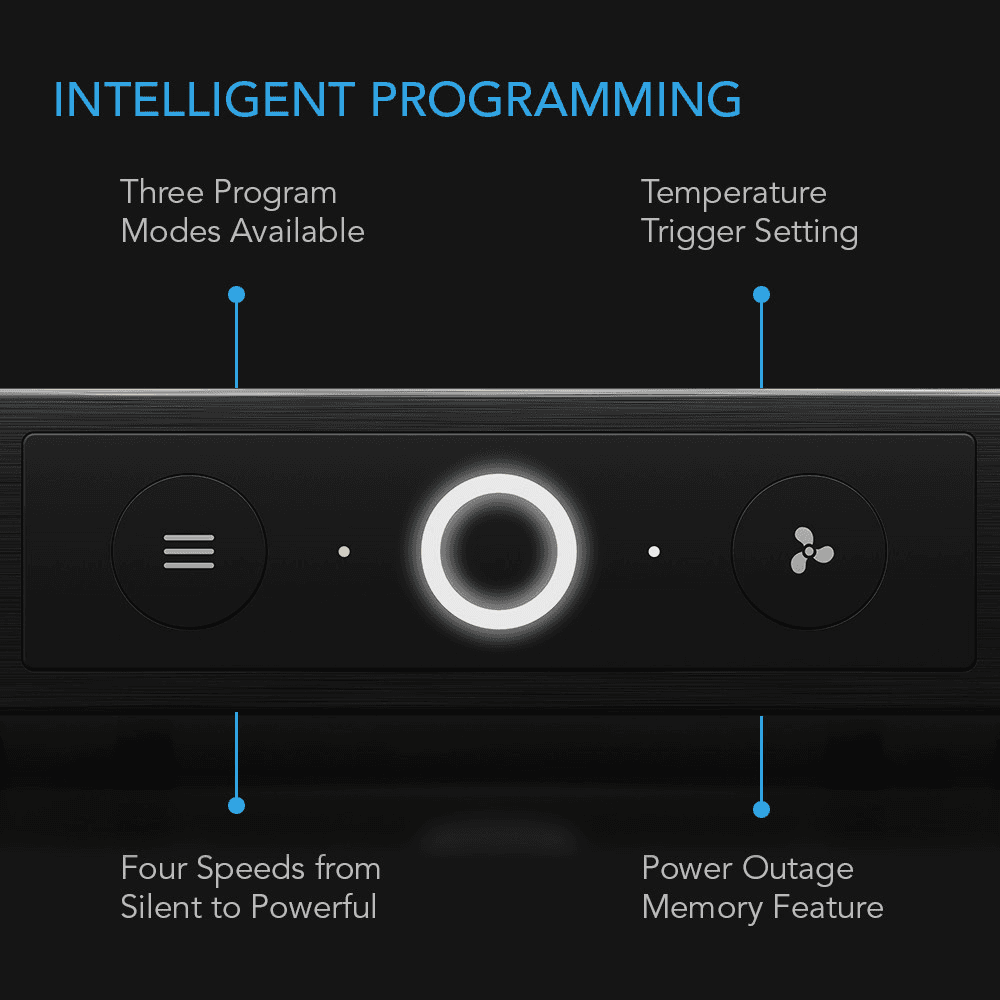

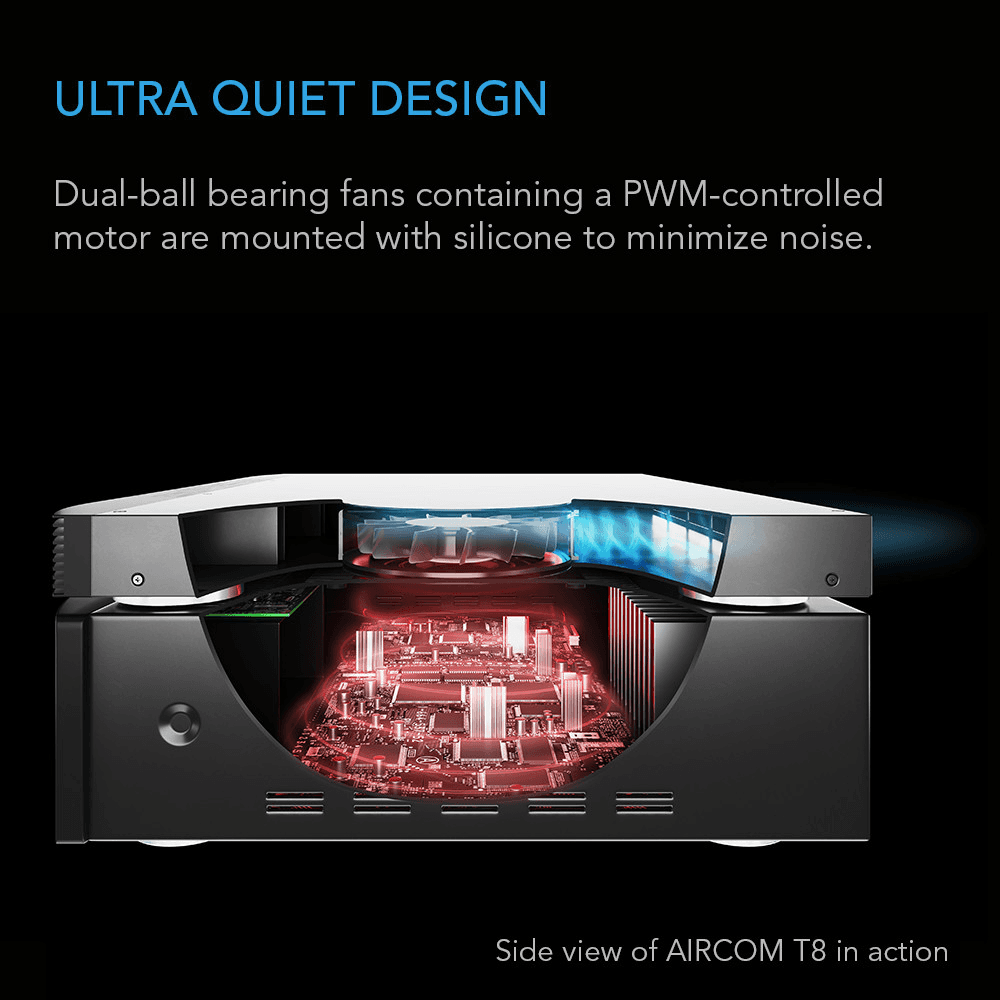

The front controller provides two thermal-trigger modes, continuous operation and an off setting. Four selectable speeds let the user balance ventilation against operating noise. AC Infinity specifies 100 CFM total airflow and 20 dBA noise for this model. PWM-controlled motors and silicone suspension mounts help limit motor noise and vibration transfer to the supporting component.
Low-profile installation

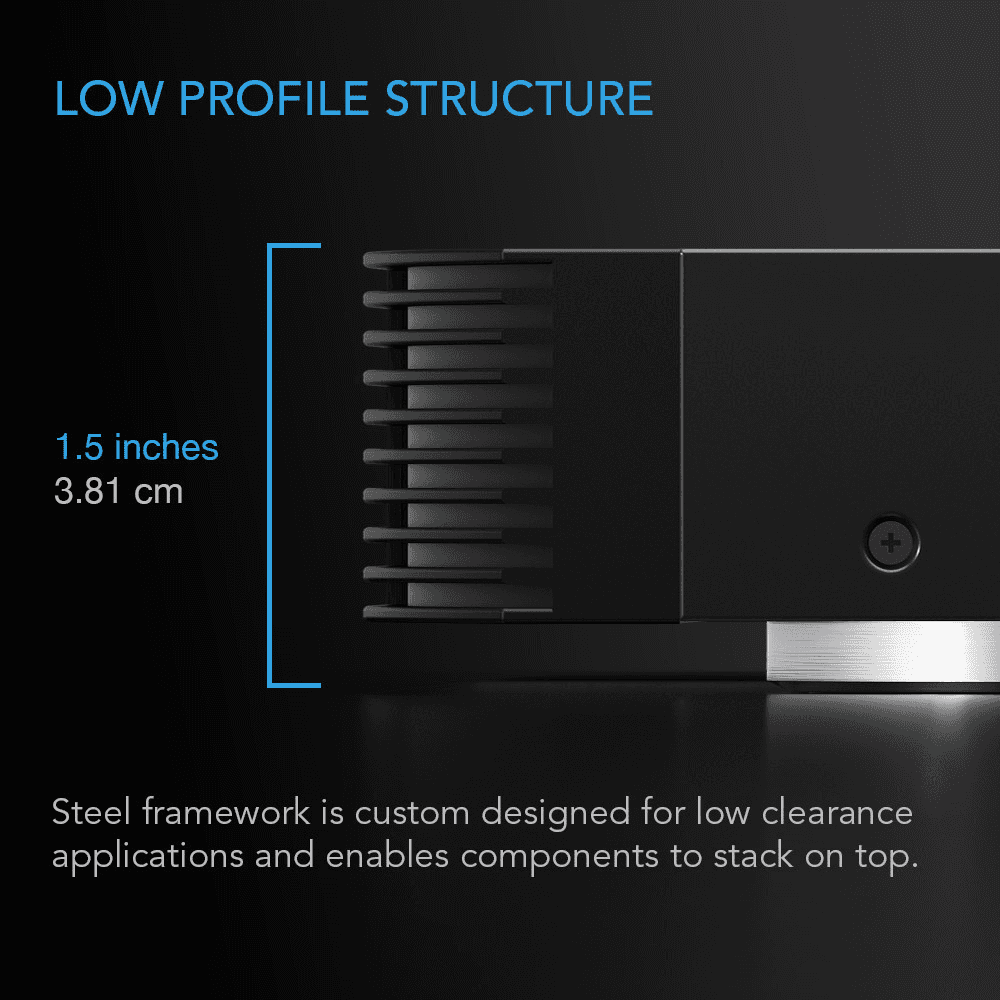

The 295 mm-wide aluminium and steel body is only 38 mm high. Allow clear space at the rear exhaust so the system can move heated air out of the installation. The manufacturer rates its top surface to support up to 10 lb of additional equipment, provided ventilation remains unobstructed. The included wall adapter accepts 100–240 V AC and supplies the 12 V DC system. This S-series model uses button controls and an indicator ring for setup.
