By Arcam

A5+

Integrated Amplifier with Bluetooth and Auracast

In-store demo

Not currently available

Stock availability

Coming soon

50 W per channel
Class AB amplification into 8 Ω.
Bluetooth 5.4
Snapdragon Sound, aptX Lossless and Auracast.
ESS ES9018 DAC
Digital playback up to 24-bit / 192 kHz.
Moving-magnet phono
Dedicated input for compatible turntables.

Product details

ARCAM A5+ brings 50 watts per channel of Class AB amplification to a versatile stereo system. An upgraded power supply supports its analogue and digital sections, with connections for records, digital sources and wireless listening.

Wireless listening and sharing

Bluetooth 5.4 supports Snapdragon Sound and aptX Lossless with compatible sources. Auracast can broadcast audio to multiple compatible headphones or speakers, while a wired headphone output provides another listening option.

Vinyl and digital sources

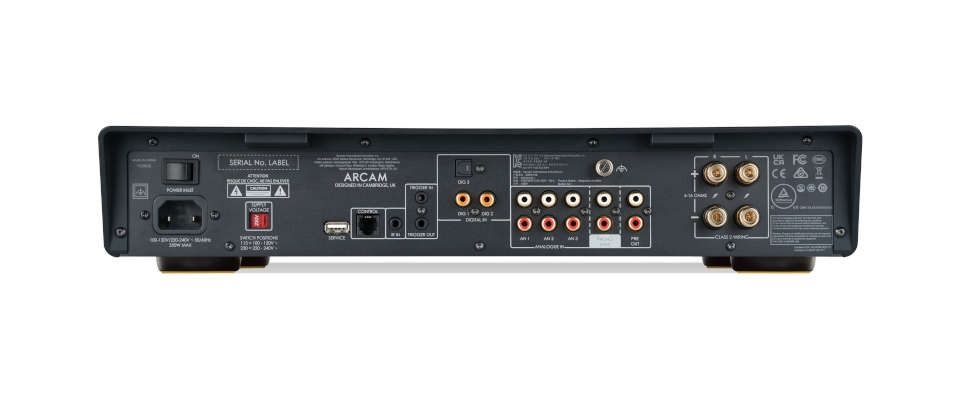

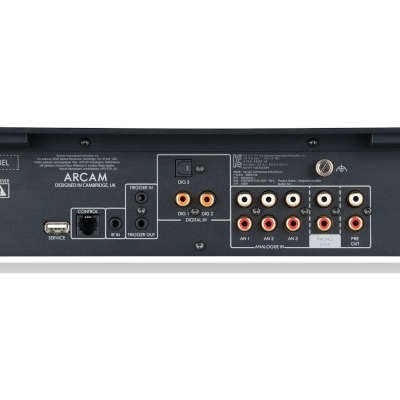

Three stereo RCA inputs and a moving-magnet phono stage accommodate analogue sources. An ESS ES9018 DAC handles digital playback.

Radia design

A black chassis with yellow accents carries the Radia design language. The supplied remote provides convenient control, and ARCAM uses plastic-free packaging.

Specifications

Amplifier class: Class AB
Power output into 8 Ω: 50 W per channel; both channels driven, 20 Hz–20 kHz, 0.5% THD
Power output into 4 Ω: 75 W per channel; both channels driven, 1 kHz, 0.5% THD
Harmonic distortion: 0.003% at 80% power, 8 Ω, 1 kHz
Analogue line inputs: 3 stereo RCA pairs
Analogue signal-to-noise ratio: 106 dB, A-weighted; reference 50 W, 1 V input
Analogue frequency response: 20 Hz–20 kHz ±0.2 dB
Phono input: Moving magnet; 47 kΩ + 100 pF
Phono frequency response: 20 Hz–20 kHz ±1 dB relative to RIAA
DAC: ESS ES9018
Digital sample rates: 44.1, 48, 88.2, 96, 176.4 and 192 kHz
Digital bit depths: 16-bit and 24-bit

Digital frequency response: 20 Hz–20 kHz ±0.2 dB (filter 1)
Digital signal-to-noise ratio: 109 dB, A-weighted; reference 50 W, 0 dBFS
Headphone output: 2.5 V RMS into 32 Ω; 5 V RMS into 300 Ω
Headphone load range: 16 Ω–2 kΩ
Bluetooth: 5.4; A2DP sink/source, AVRCP, BLE and LE Audio
Bluetooth codecs: SBC, AAC, aptX, aptX HD and aptX Lossless
Wireless features: Snapdragon Sound and Auracast
Mains voltage: 100 V, 110–120 V or 220–240 V; 50–60 Hz (regional version)
Maximum power consumption: 350 W
Standby power consumption: <0.5 W
Supplied accessories: Mains lead(s), remote with 2 AAA batteries, Quick Start Guide and safety instructions

Dimensions

Width: 431 mm
Depth: 344 mm, including speaker terminals
Height: 83 mm, including feet

Net weight: 8 kg
Packed weight: 11 kg
