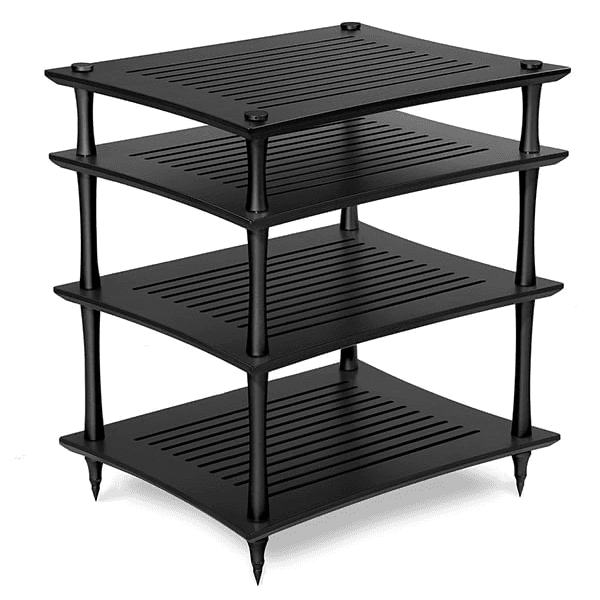

Product view 2

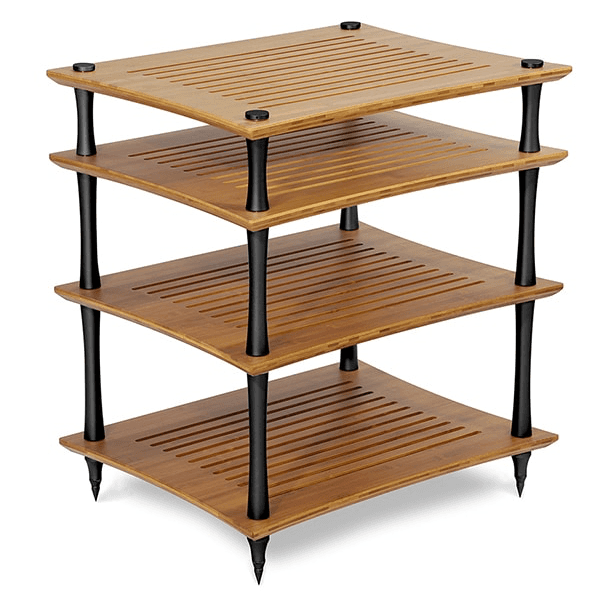

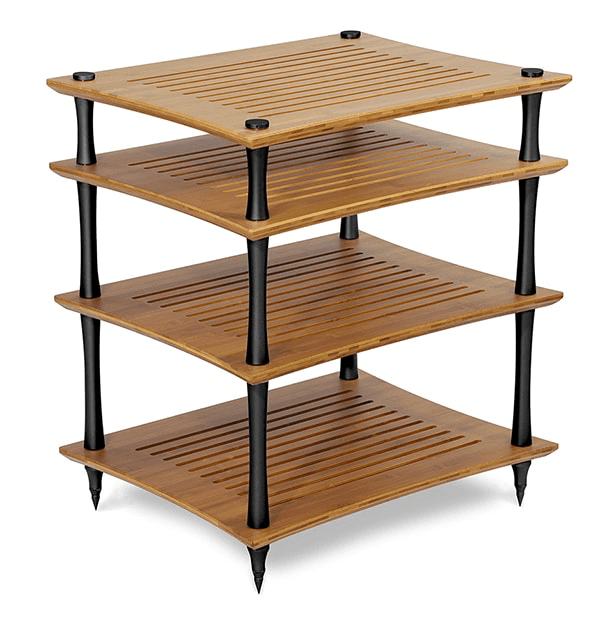

Product view 3

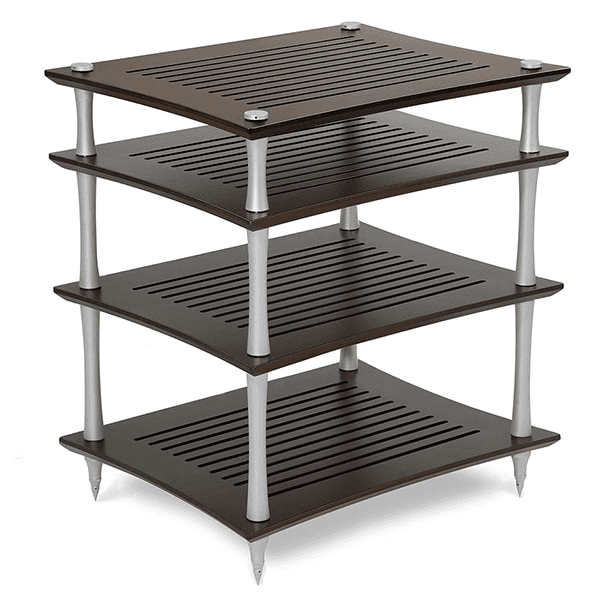

Product view 4

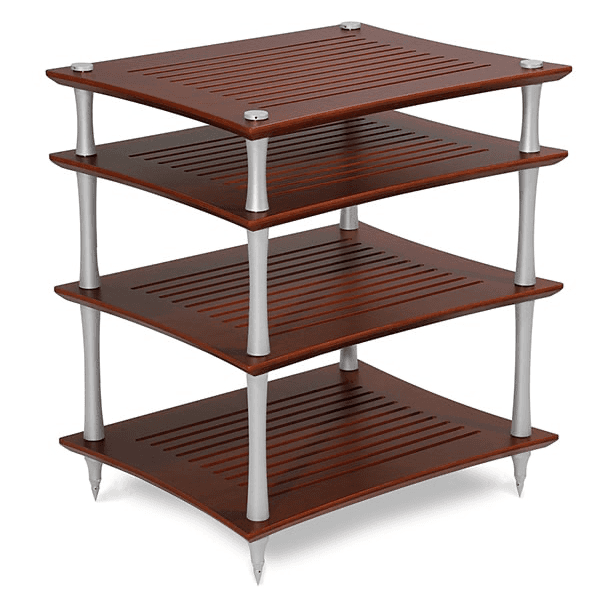

Product view 5
Product view 6
Product view 7
By Quadraspire

SVT Performance

Hi-Fi rack

Contact us

Finish — Natural Bamboo

In-store demo

Available

Stock availability

Available

  • Ventilated bamboo shelves

    Open rack construction with four bamboo finishes.

  • Solid aluminium columns

    Curved 32 mm columns in Black or matt silver.

  • Modular shelf spacing

    Six column-length options suit different component heights.

  • 80 kg per SVT shelf

    Manufacturer load rating for the single-width design.

Product details

The Quadraspire SVT Performance is a modular single-width hi-fi rack built from ventilated bamboo shelves and curved aluminium columns. Its open construction provides space around equipment, while the shaped shelves and support system form a dedicated platform for an audio system.

Shelf and support construction

The single-width SVT shelf measures 590 mm wide by 470 mm deep and has a stated load capacity of 80 kilograms per shelf. The clear span between columns is 477 × 368 mm, which should be checked against equipment feet and connection clearances. Solid 32 mm columns are offered in Black or matt silver.

Finish and configuration options

Bamboo shelves are available in Natural, Dark, Cherry and Black finishes. Modular column lengths of 100, 140, 180, 216, 256 and 326 mm allow shelf spacing to suit different components, with overall height depending on the chosen arrangement. Spikes, flat feet and castors offer installation options for different floors. Optional SV Bronze upgrades are separate accessories. The existing rack configuration remains the product reference; additional shelf counts and heights can be specified without treating every arrangement as a separate product.

Specifications

Type
SVT Performance single-width modular hi-fi rack
Shelves
Ventilated bamboo construction
Columns
Solid curved aluminium; 32 mm diameter
Column finishes
Black; matt silver
Shelf finishes
Natural Bamboo; Dark Bamboo; Cherry Bamboo; Black Bamboo
Shelf load capacity
80 kg per shelf; single-width SVT specification
Column-length options
100 / 140 / 180 / 216 / 256 / 326 mm
Floor interfaces
Spikes; flat feet; castors, according to configuration

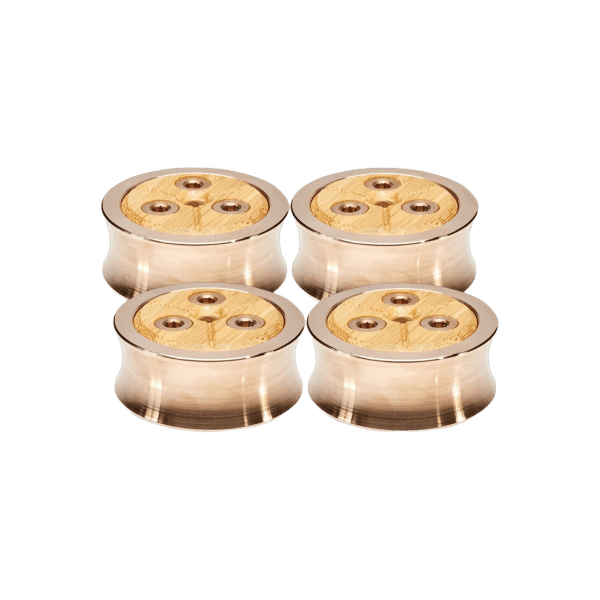

Upgrade option
Compatible SV Bronze accessories; separate purchase
Configuration
Modular shelf counts and spacing; overall height varies
Equipment fit
Check support-foot spacing, ventilation and rear cable clearance

Dimensions

Single-width shelf (W × D)
590 × 470 mm
Clear span between columns (W × D)
477 × 368 mm
Overall height / weight
Dependent on shelf count, column lengths and floor interfaces
